Architectural Downlights Light Shadow

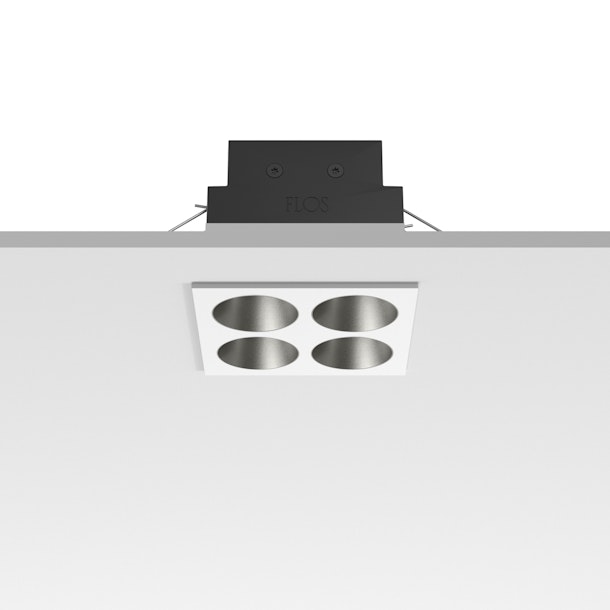

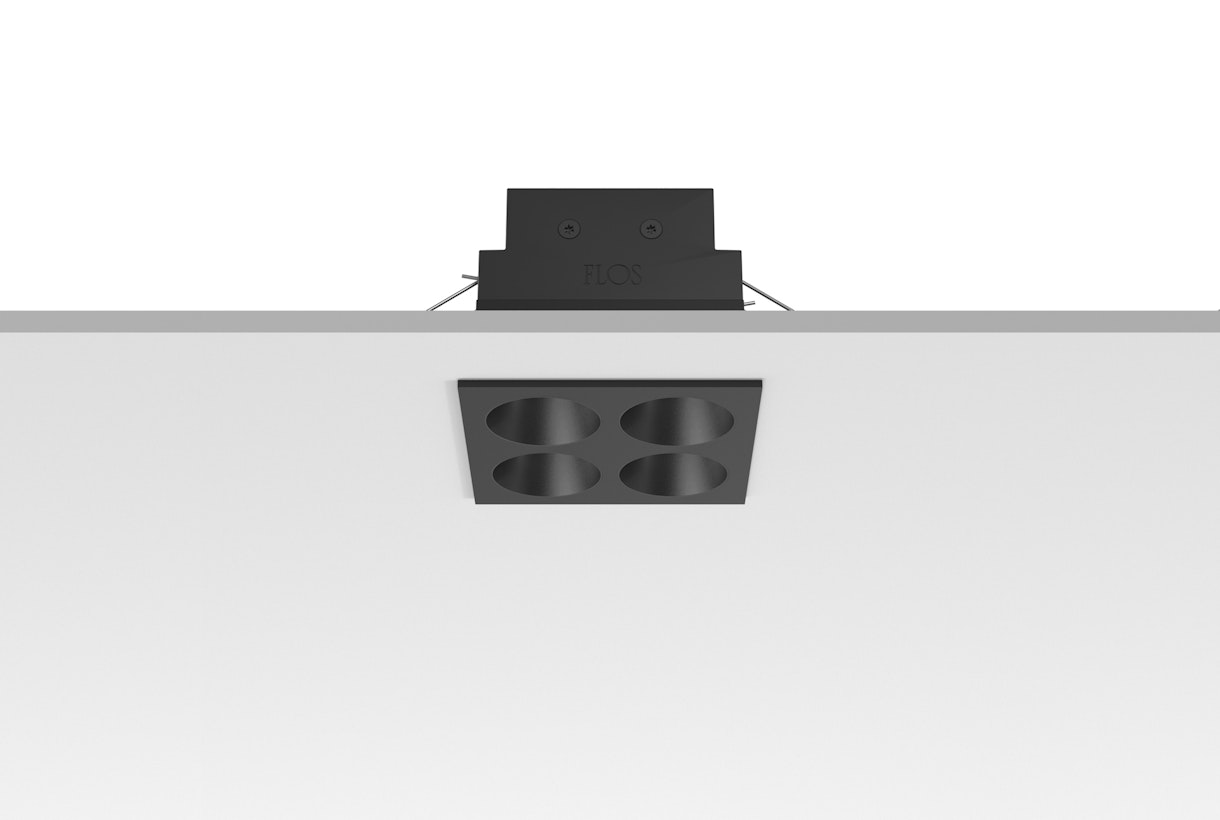

Light Shadow Square Trim

Recessed integrated luminaire. Remote power supply included. Pre-installation frame not required.

Downloads

Datasheet
pdf
Leaflet
pdf

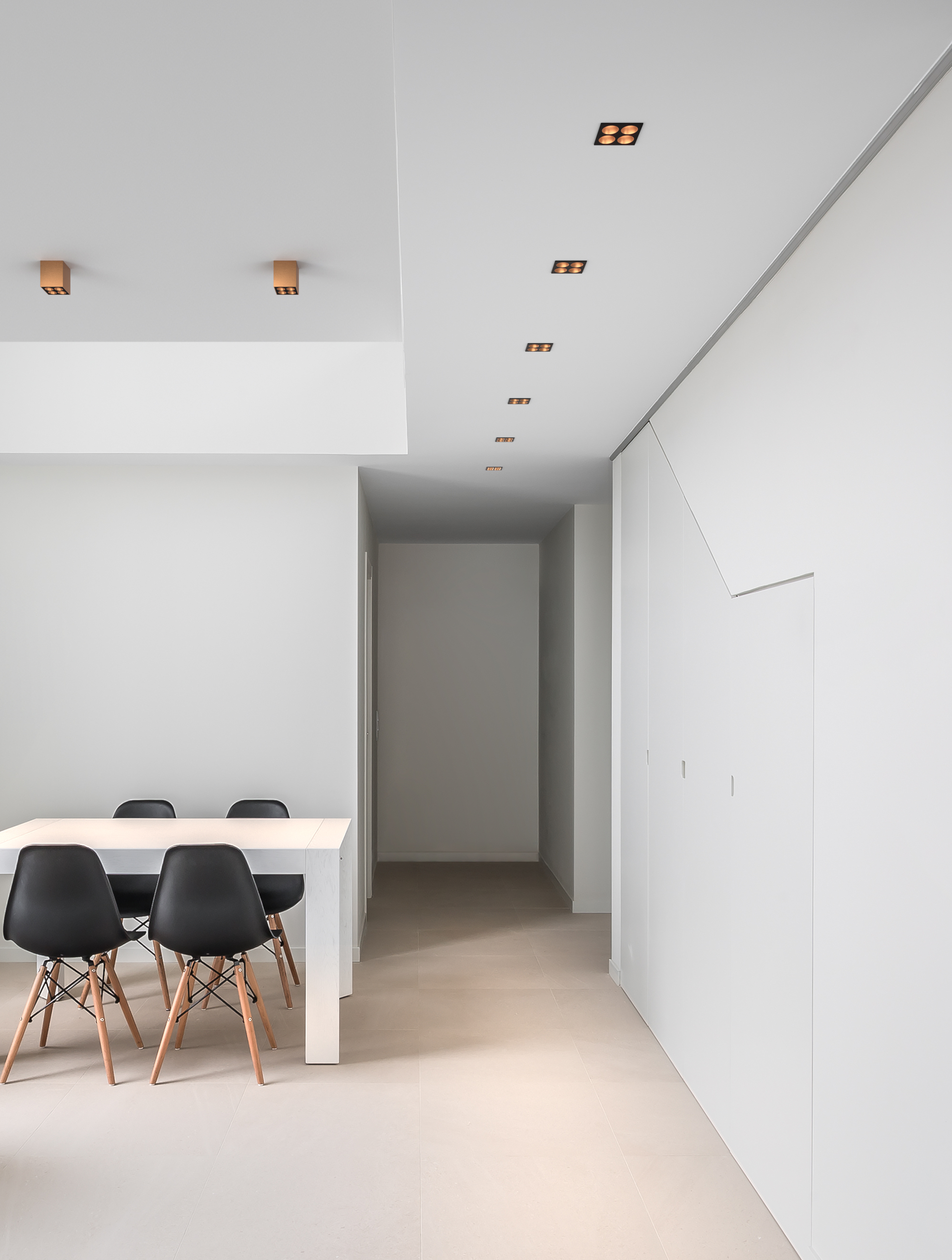

Product highlight

The revolution in low glare lighting

Compact size program designed to avoid glare featuring a variety of optics and finishes.

Discover the Story

Luminaire

(256)
Driver type
Non Dimmable
Dimmable Casambi
Mains Cut Dimming
Dimmable DALI 2
Colour
2700
Flood
Thumbnail
05.0624.40C Light Shadow Fixed Trim 4 Spots Square Optic Flood 947lm - 2700K - CRI> 90 - Beam° 35
Flood
Thumbnail
05.0624.14C Light Shadow Fixed Trim 4 Spots Square Optic Flood 947lm - 2700K - CRI> 90 - Beam° 35
Flood
Thumbnail
05.0622.40C Light Shadow Fixed Trim 4 Spots Square Optic Flood 941lm - 2700K - CRI> 90 - Beam° 35
Flood
Thumbnail
05.0622.14C Light Shadow Fixed Trim 4 Spots Square Optic Flood 941lm - 2700K - CRI> 90 - Beam° 35
Flood
Thumbnail
05.0621.40C Light Shadow Fixed Trim 4 Spots Square Optic Flood 938lm - 2700K - CRI> 90 - Beam° 35
Flood
Thumbnail
05.0621.14C Light Shadow Fixed Trim 4 Spots Square Optic Flood 938lm - 2700K - CRI> 90 - Beam° 35
Flood
Thumbnail
05.0620.40C Light Shadow Fixed Trim 4 Spots Square Optic Flood 961lm - 2700K - CRI> 90 - Beam° 35
Flood
Thumbnail
05.0620.14C Light Shadow Fixed Trim 4 Spots Square Optic Flood 961lm - 2700K - CRI> 90 - Beam° 35
Medium
Thumbnail
05.0614.40C Light Shadow Fixed Trim 4 Spots Square Optic Medium 972lm - 2700K - CRI> 90 - Beam° 25
Medium
Thumbnail
05.0614.14C Light Shadow Fixed Trim 4 Spots Square Optic Medium 972lm - 2700K - CRI> 90 - Beam° 25
Medium
Thumbnail
05.0612.40C Light Shadow Fixed Trim 4 Spots Square Optic Medium 968lm - 2700K - CRI> 90 - Beam° 25
Medium
Thumbnail
05.0612.14C Light Shadow Fixed Trim 4 Spots Square Optic Medium 968lm - 2700K - CRI> 90 - Beam° 25
Medium
Thumbnail
05.0611.40C Light Shadow Fixed Trim 4 Spots Square Optic Medium 958lm - 2700K - CRI> 90 - Beam° 24
Medium
Thumbnail
05.0611.14C Light Shadow Fixed Trim 4 Spots Square Optic Medium 958lm - 2700K - CRI> 90 - Beam° 24
Medium
Thumbnail
05.0610.40C Light Shadow Fixed Trim 4 Spots Square Optic Medium 978lm - 2700K - CRI> 90 - Beam° 25
Medium
Thumbnail
05.0610.14C Light Shadow Fixed Trim 4 Spots Square Optic Medium 978lm - 2700K - CRI> 90 - Beam° 25
Spot
Thumbnail
05.0604.40C Light Shadow Fixed Trim 4 Spots Square Optic Spot 964lm - 2700K - CRI> 90 - Beam° 11
Spot
Thumbnail
05.0604.14C Light Shadow Fixed Trim 4 Spots Square Optic Spot 964lm - 2700K - CRI> 90 - Beam° 11
Spot
Thumbnail
05.0602.40C Light Shadow Fixed Trim 4 Spots Square Optic Spot 970lm - 2700K - CRI> 90 - Beam° 11
Spot
Thumbnail
05.0602.14C Light Shadow Fixed Trim 4 Spots Square Optic Spot 970lm - 2700K - CRI> 90 - Beam° 11
Spot
Thumbnail
05.0601.40C Light Shadow Fixed Trim 4 Spots Square Optic Spot 966lm - 2700K - CRI> 90 - Beam° 11
Spot
Thumbnail
05.0601.14C Light Shadow Fixed Trim 4 Spots Square Optic Spot 966lm - 2700K - CRI> 90 - Beam° 11
Spot
Thumbnail
05.0600.40C Light Shadow Fixed Trim 4 Spots Square Optic Spot 982lm - 2700K - CRI> 90 - Beam° 11
Spot
Thumbnail
05.0600.14C Light Shadow Fixed Trim 4 Spots Square Optic Spot 982lm - 2700K - CRI> 90 - Beam° 11
Wide flood
Thumbnail
05.0634.40C Light Shadow Fixed Trim 4 Spots Square Optic Wide Flood 941lm - 2700K - CRI> 90 - Beam° 48
Wide flood
Thumbnail
05.0634.14C Light Shadow Fixed Trim 4 Spots Square Optic Wide Flood 941lm - 2700K - CRI> 90 - Beam° 48
Wide flood
Thumbnail
05.0632.40C Light Shadow Fixed Trim 4 Spots Square Optic Wide Flood 939lm - 2700K - CRI> 90 - Beam° 49
Wide flood
Thumbnail
05.0632.14C Light Shadow Fixed Trim 4 Spots Square Optic Wide Flood 939lm - 2700K - CRI> 90 - Beam° 49
Wide flood
Thumbnail
05.0631.40C Light Shadow Fixed Trim 4 Spots Square Optic Wide Flood 932lm - 2700K - CRI> 90 - Beam° 48
Wide flood
Thumbnail
05.0631.14C Light Shadow Fixed Trim 4 Spots Square Optic Wide Flood 932lm - 2700K - CRI> 90 - Beam° 48
Wide flood
Thumbnail
05.0630.40C Light Shadow Fixed Trim 4 Spots Square Optic Wide Flood 962lm - 2700K - CRI> 90 - Beam° 49
Wide flood
Thumbnail
05.0630.14C Light Shadow Fixed Trim 4 Spots Square Optic Wide Flood 962lm - 2700K - CRI> 90 - Beam° 49
3000
Flood
Thumbnail
05.0629.40C Light Shadow Fixed Trim 4 Spots Square Optic Flood 1038lm - 3000K - CRI> 90 - Beam° 35
Flood
Thumbnail
05.0629.14C Light Shadow Fixed Trim 4 Spots Square Optic Flood 1038lm - 3000K - CRI> 90 - Beam° 35
Flood
Thumbnail
05.0627.40C Light Shadow Fixed Trim 4 Spots Square Optic Flood 1032lm - 3000K - CRI> 90 - Beam° 35
Flood
Thumbnail
05.0627.14C Light Shadow Fixed Trim 4 Spots Square Optic Flood 1032lm - 3000K - CRI> 90 - Beam° 35
Flood
Thumbnail
05.0626.40C Light Shadow Fixed Trim 4 Spots Square Optic Flood 1028lm - 3000K - CRI> 90 - Beam° 35
Flood
Thumbnail
05.0626.14C Light Shadow Fixed Trim 4 Spots Square Optic Flood 1028lm - 3000K - CRI> 90 - Beam° 35
Flood
Thumbnail
05.0625.40C Light Shadow Fixed Trim 4 Spots Square Optic Flood 1054lm - 3000K - CRI> 90 - Beam° 35
Flood
Thumbnail
05.0625.14C Light Shadow Fixed Trim 4 Spots Square Optic Flood 1054lm - 3000K - CRI> 90 - Beam° 35
Medium
Thumbnail
05.0619.40C Light Shadow Fixed Trim 4 Spots Square Optic Medium 1065lm - 3000K - CRI> 90 - Beam° 25
Medium
Thumbnail
05.0619.14C Light Shadow Fixed Trim 4 Spots Square Optic Medium 1065lm - 3000K - CRI> 90 - Beam° 25
Medium
Thumbnail
05.0617.40C Light Shadow Fixed Trim 4 Spots Square Optic Medium 1061lm - 3000K - CRI> 90 - Beam° 25
Medium
Thumbnail
05.0617.14C Light Shadow Fixed Trim 4 Spots Square Optic Medium 1061lm - 3000K - CRI> 90 - Beam° 25
Medium
Thumbnail
05.0616.40C Light Shadow Fixed Trim 4 Spots Square Optic Medium 1050lm - 3000K - CRI> 90 - Beam° 24
Medium
Thumbnail
05.0616.14C Light Shadow Fixed Trim 4 Spots Square Optic Medium 1050lm - 3000K - CRI> 90 - Beam° 24
Medium
Thumbnail
05.0615.40C Light Shadow Fixed Trim 4 Spots Square Optic Medium 1072lm - 3000K - CRI> 90 - Beam° 25
Medium
Thumbnail
05.0615.14C Light Shadow Fixed Trim 4 Spots Square Optic Medium 1072lm - 3000K - CRI> 90 - Beam° 25
Spot
Thumbnail
05.0609.40C Light Shadow Fixed Trim 4 Spots Square Optic Spot 1057lm - 3000K - CRI> 90 - Beam° 11
Spot
Thumbnail
05.0609.14C Light Shadow Fixed Trim 4 Spots Square Optic Spot 1057lm - 3000K - CRI> 90 - Beam° 11
Spot
Thumbnail
05.0607.40C Light Shadow Fixed Trim 4 Spots Square Optic Spot 1064lm - 3000K - CRI> 90 - Beam° 11
Spot
Thumbnail
05.0607.14C Light Shadow Fixed Trim 4 Spots Square Optic Spot 1064lm - 3000K - CRI> 90 - Beam° 11
Spot
Thumbnail
05.0606.40C Light Shadow Fixed Trim 4 Spots Square Optic Spot 1059lm - 3000K - CRI> 90 - Beam° 11
Spot
Thumbnail
05.0606.14C Light Shadow Fixed Trim 4 Spots Square Optic Spot 1059lm - 3000K - CRI> 90 - Beam° 11
Spot
Thumbnail
05.0605.40C Light Shadow Fixed Trim 4 Spots Square Optic Spot 1077lm - 3000K - CRI> 90 - Beam° 11
Spot
Thumbnail
05.0605.14C Light Shadow Fixed Trim 4 Spots Square Optic Spot 1077lm - 3000K - CRI> 90 - Beam° 11
Wide flood
Thumbnail
05.0639.40C Light Shadow Fixed Trim 4 Spots Square Optic Wide Flood 1032lm - 3000K - CRI> 90 - Beam° 48
Wide flood
Thumbnail
05.0639.14C Light Shadow Fixed Trim 4 Spots Square Optic Wide Flood 1032lm - 3000K - CRI> 90 - Beam° 48
Wide flood
Thumbnail
05.0637.40C Light Shadow Fixed Trim 4 Spots Square Optic Wide Flood 1029lm - 3000K - CRI> 90 - Beam° 49
Wide flood
Thumbnail
05.0637.14C Light Shadow Fixed Trim 4 Spots Square Optic Wide Flood 1029lm - 3000K - CRI> 90 - Beam° 49
Wide flood
Thumbnail
05.0636.40C Light Shadow Fixed Trim 4 Spots Square Optic Wide Flood 1021lm - 3000K - CRI> 90 - Beam° 48
Wide flood
Thumbnail
05.0636.14C Light Shadow Fixed Trim 4 Spots Square Optic Wide Flood 1021lm - 3000K - CRI> 90 - Beam° 48
Wide flood
Thumbnail
05.0635.40C Light Shadow Fixed Trim 4 Spots Square Optic Wide Flood 1055lm - 3000K - CRI> 90 - Beam° 49
Wide flood
Thumbnail
05.0635.14C Light Shadow Fixed Trim 4 Spots Square Optic Wide Flood 1055lm - 3000K - CRI> 90 - Beam° 49
Square Trim Installation
Product_Specification_LIGHT_SHADOW_SQUARE_TRIM

Compose your Light Shadow according to your needs

Have a look at this scheme for a quick product overview.
