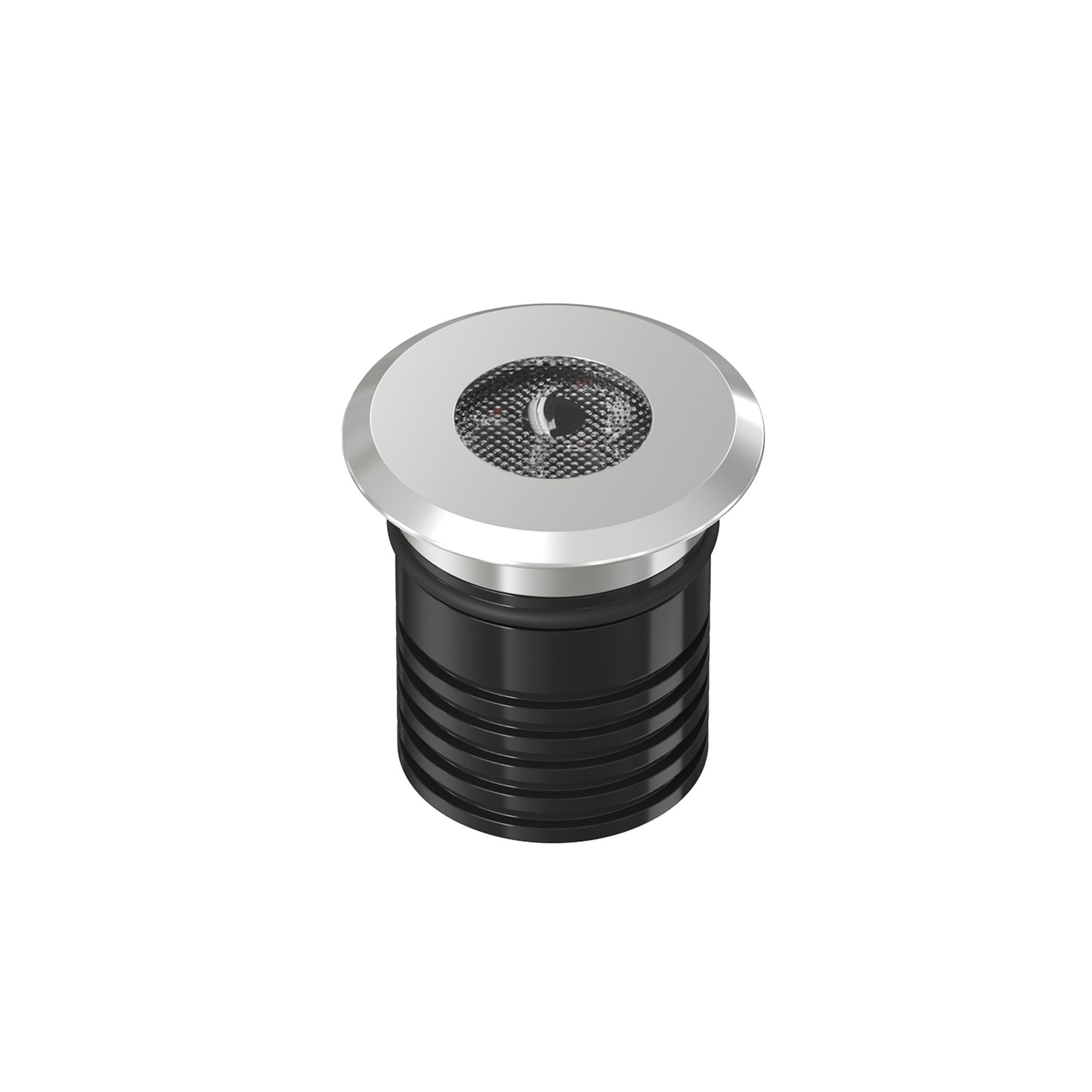

Thumbnail
Related to
Outdoor A-Rise
FA51823256 Matte Stainless Steel

A-Rise 65 Hp

LED source included. 24V dc remote electric power supply to be ordered separately. Requires a junction box to be ordered separately. The luminaire is equipped with a protruding, neoprene, 200 mm cable with an integrated H2O STOP connection system and a wiring kit with crimp connectors and adhesive heat-shrink tubing guaranteeing the water tightness of the connection. Transparent polycarbonate diffuser. Adjustable light intensity version available upon request.

3W - 218lm - 2700K - CRI> 80 - Beam° 36

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8054793639406
Mounting
In-ground
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
3
System power (W)
4.5
Source flux (lm)
331
System flux (lm)
218
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
80
Beam angle C0-180 (º)
36
Beam angle C90-270 (º)
36
Extreme cut off
No
Electrical
Insulation class
III
Driver
Remote excluded
Dimmable
No
Dimming type
Non Dimmable
Dimming interface
Not Dimmable
Emergency type
No
Physical
Colour
Matte Stainless Steel
Orientation
Fixed
Net weight (kg)
0.33
Package height (cm)
134
Package width (cm)
70
Package length (cm)
83
IP
67
IP external
66
CE
IECEE-CB
EAC
UKCA
USA
66
66
IK06 - 1.00 Joule
IK06 - 1.00 Joule
67
Notes

Dimmable version on request

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE3 Non-replaceable light source

Accessories & Power Supply

optional (8)
required (1)
