FA51305901 White

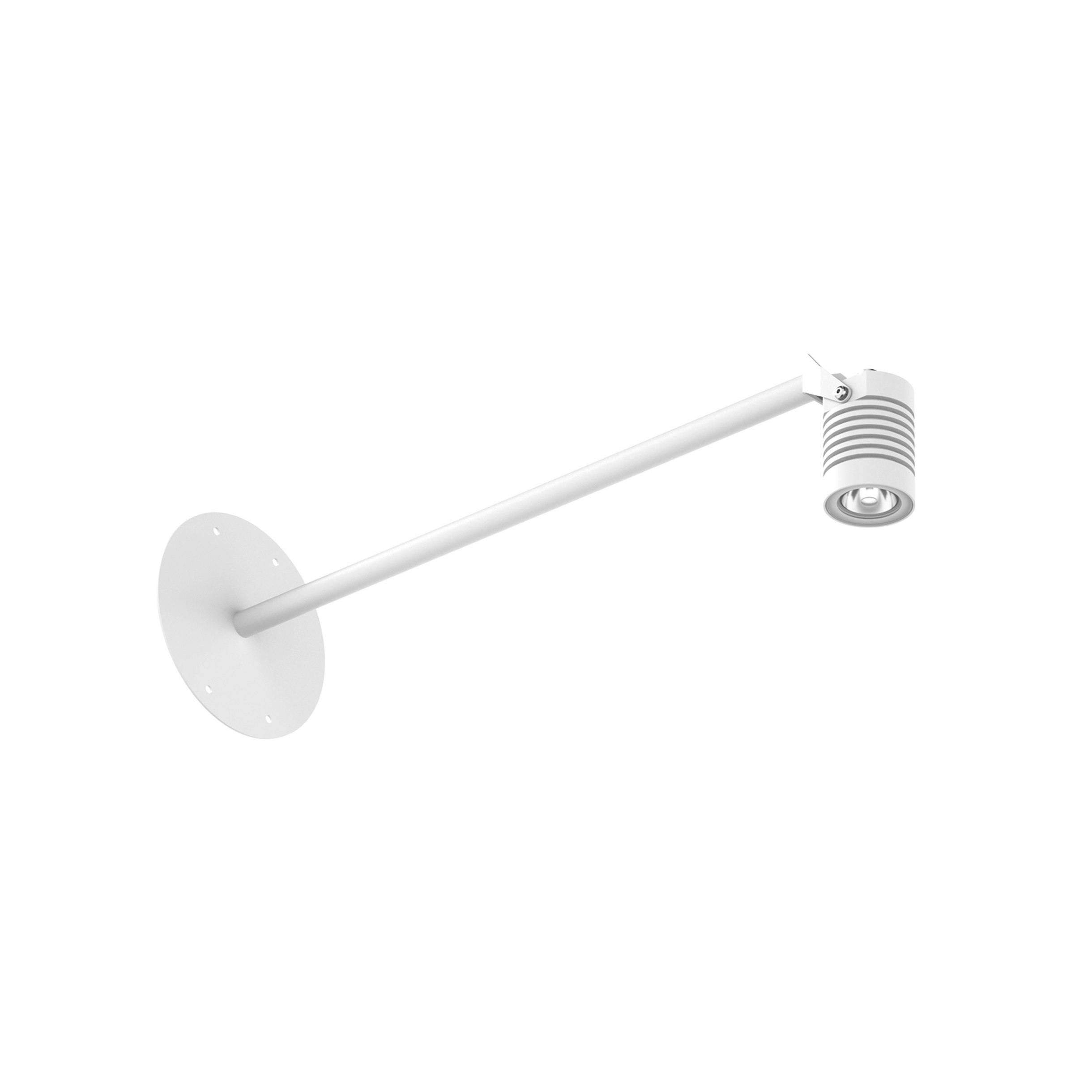

Aimer 2 Wall 500
New
Designed by FLOS Outdoor, 2011
LED source included. Remote electrical power supply 24V dc ON/OFF to be ordered separately. Equipped with a 2000 mm protruding section of neoprene cable and a 2-pole and 3-way connection box with H2O STOP system that guarantee the tightness of the connection. Extraclear transparent glass. Metal nail for ground installation included. Dimmable version available upon request.
2W - 155lm - 4000K - CRI> 80 - Beam° 12
Also available in:
Technical Drawing
Main specifications
EAN
8054793632001
Mounting
Wall
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
2
System power (W)
3.4
Source flux (lm)
224
System flux (lm)
155
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
4000
CRI>
80
Beam angle C0-180 (º)
12
Beam angle C90-270 (º)
12
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
24
Driver
Remote excluded
Dimmable
No
Dimming type
Non Dimmable
Dimming interface
Not Dimmable
Emergency type
No
Physical
Colour
White
Orientation
Directional
Longitudinal tilting (°)
174
Net weight (kg)
0.88
Package height (cm)
545
Package width (cm)
185
Package length (cm)
185
Package volume (m3)
0.02
IP
65
Notes
Dimmable version on request
Photometric Files
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class F
