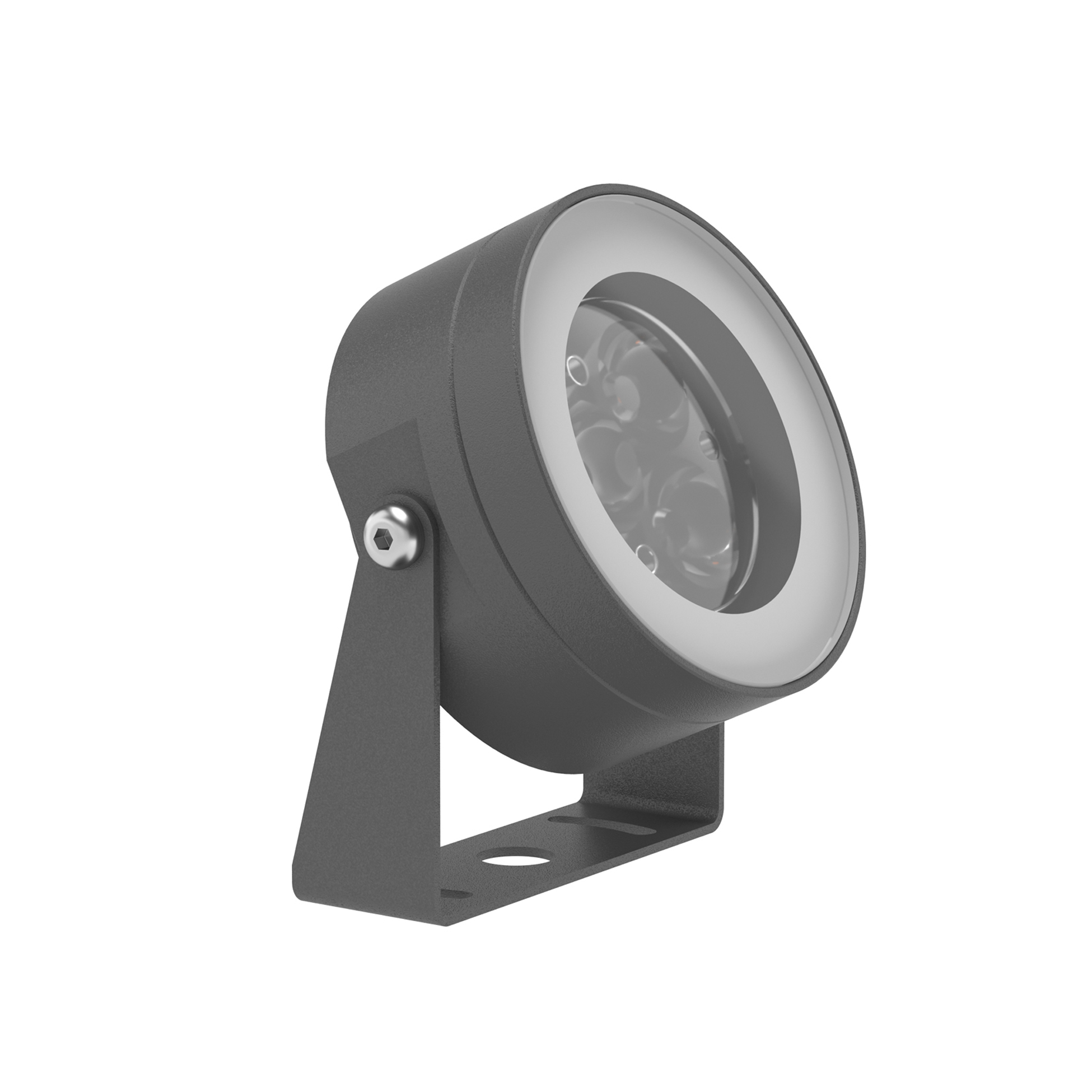

Outdoor Aimer
FA1051900033 Anthracite

Aimer 3 Constant Current
New

LED source included. Remote power supply 350/500 mA ON/OFF and dimmable 1-10V or DALI. Must be ordered separately. Serial connection. Equipped with a 2000 mm protruding section of neoprene cable and a kit with crimpable connectors and adhesive heat-shrinkable sleeves that guarantee the tightness of the connection. Extraclear transparent glass. The metal nail for ground installation needs to be ordered separately.

5W - 371lm - 4000K - CRI> 80 - Beam° 50

Also available in:
Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8054793608563
Mounting
Ground
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
5
System power (W)
5.1
Source flux (lm)
484
System flux (lm)
371
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
4000
CRI>
80
Beam angle C0-180 (º)
50
Beam angle C90-270 (º)
50
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Driver
Remote excluded
Dimmable
Yes
Dimming type
Non Dimmable, Dimmable 1-10V, Dimmable DALI 1
Dimming interface
Remote Dimmable (Dimmer Not Included)
Emergency type
No
Physical
Colour
Anthracite
Orientation
Directional
Longitudinal tilting (°)
185
Net weight (kg)
0.65
Package height (cm)
75
Package width (cm)
145
Package length (cm)
235
IP
67
IP external
66
IECEE-CB
EAC
CE
UKCA
Risk 1
USA
Risk 1
66
66
IK07 - 2.00 Joule
IK07 - 2.00 Joule
67
Notes

Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

Accessories & Power Supply

optional (11)
All
Accessory
Power supply
Thumbnail
x1
2 way terminal block 4 poles IP68 H20 stop. (ø5,5÷12mm cable) F990C00A000
Thumbnail
x1
Visor for Aimer 3 FA5130
Thumbnail
x1
Ground Spike Aimer 1/Aimer 2/Aimer 3/Perseo 2 FA136
Thumbnail
x1
Power supply 10 x 1W/ 100÷265V - Iout 350mA (7x1W/110V) IP40 Class II Selv Eq. FA68
Thumbnail
x1
Power supply 16 x 1W/ 110÷240V - Iout 350mA (12x1W@110V) IP20 Class II Selv Eq. Dimmable Push-Dimm Or 1.10V FA129
Thumbnail
x1
Power supply 16 x 1W/ 110÷240V - Iout 350mA (12x1W@110V) IP67 Class II Selv Dimmable Push-Dimm Or 1.10V FA184
Thumbnail
x1
Power supply 13 x 2W/ 110÷240V - Iout 500mA (7x2W@110V) IP20 Class II Selv. Eq. Dimmable Push-Dimm Or 1.10V FA135
Thumbnail
x1
Power supply 13 x 2W/ 110÷240V - Iout 500mA (7x2W@110V) IP67 Class II Selv. Dimmable Push-Dimm Or 1.10V FA218
x1
Power Supply dual function C.V. Vout 24Vdc 8W, Vin 220÷240V C.C. Iout 350mA: 8W, Vin 220÷240V IP 20 Class II Selv. NON Dimmable F990B34A000
x1
Power Supply dual function C.V. Vout 24Vdc 8W, Vin 220÷240V C.C. Iout 350mA: 8W, Vin 220÷240V IP 65 Class II Selv. NON Dimmable RF25748
