FA1052550033 Anthracite

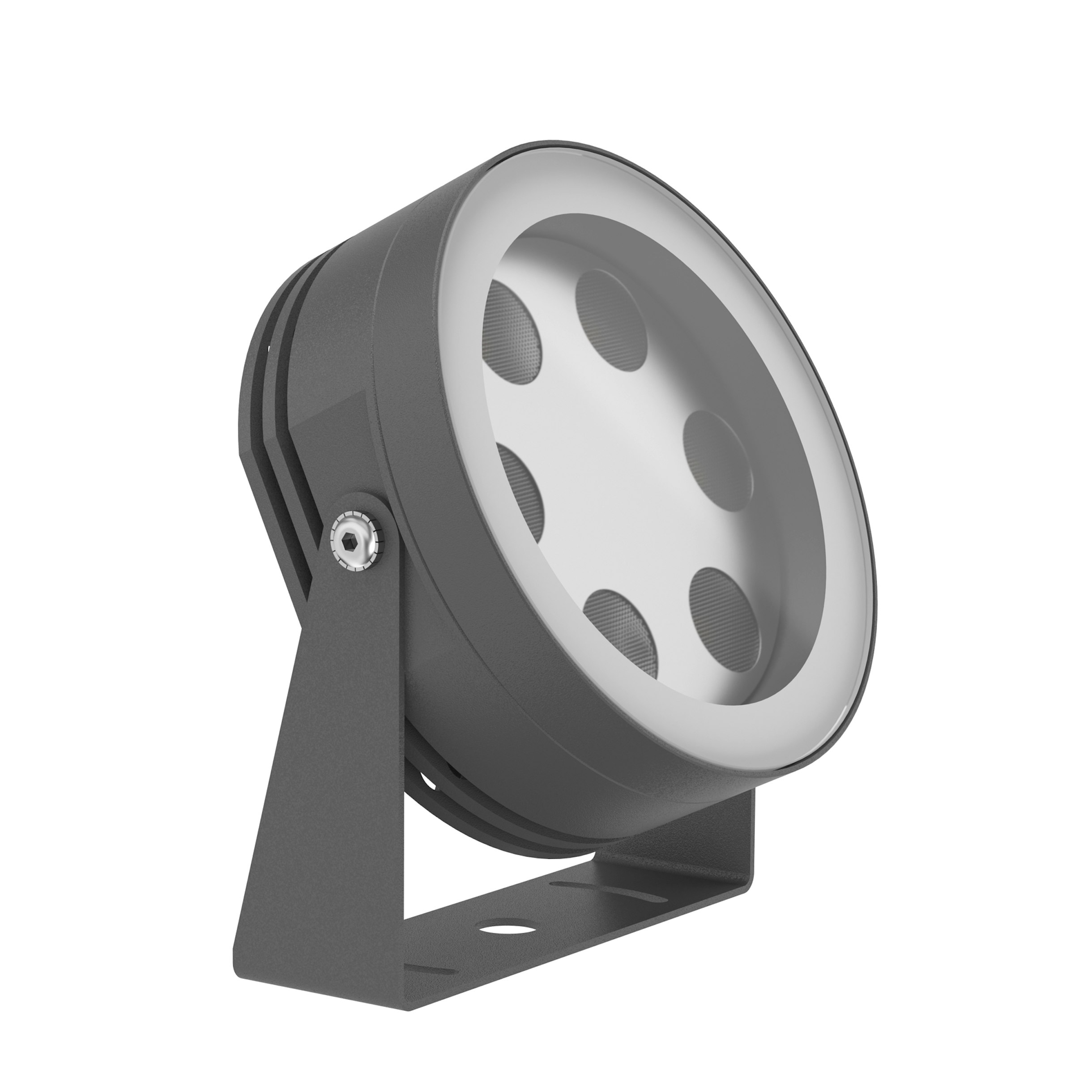

Aimer 4 Constant Voltage
New
Designed by FLOS Outdoor, 2011
LED source included. Remote electrical power supply 24V dc ON/OFF to be ordered separately. Parallel connection. Equipped with a 2000 mm protruding section of neoprene cable and a kit with crimpable connectors and adhesive heat-shrinkable sleeves that guarantee the tightness of the connection. Fixing bracket included. Extraclear transparent glass. The metal nail for ground installation needs to be ordered separately.
10W - 523lm - 3000K - CRI> 80 - Beam° 30
Also available in:
Technical Drawing
Main specifications
EAN
8054793610382
Mounting
Ground
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
10
System power (W)
10
Source flux (lm)
834
System flux (lm)
523
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
30
Beam angle C90-270 (º)
30
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
24
Driver
Remote excluded
Dimmable
No
Dimming type
Non Dimmable
Dimming interface
Not Dimmable
Emergency type
No
Physical
Colour
Anthracite
Orientation
Directional
Longitudinal tilting (°)
185
Net weight (kg)
1.26
Package height (cm)
175
Package width (cm)
135
Package length (cm)
135
IP
67
IP external
66
Notes
Dimmable version on request
Photometric Files
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class F
Replaceable (LED only) light source by a professional
