Almendra
F0420026

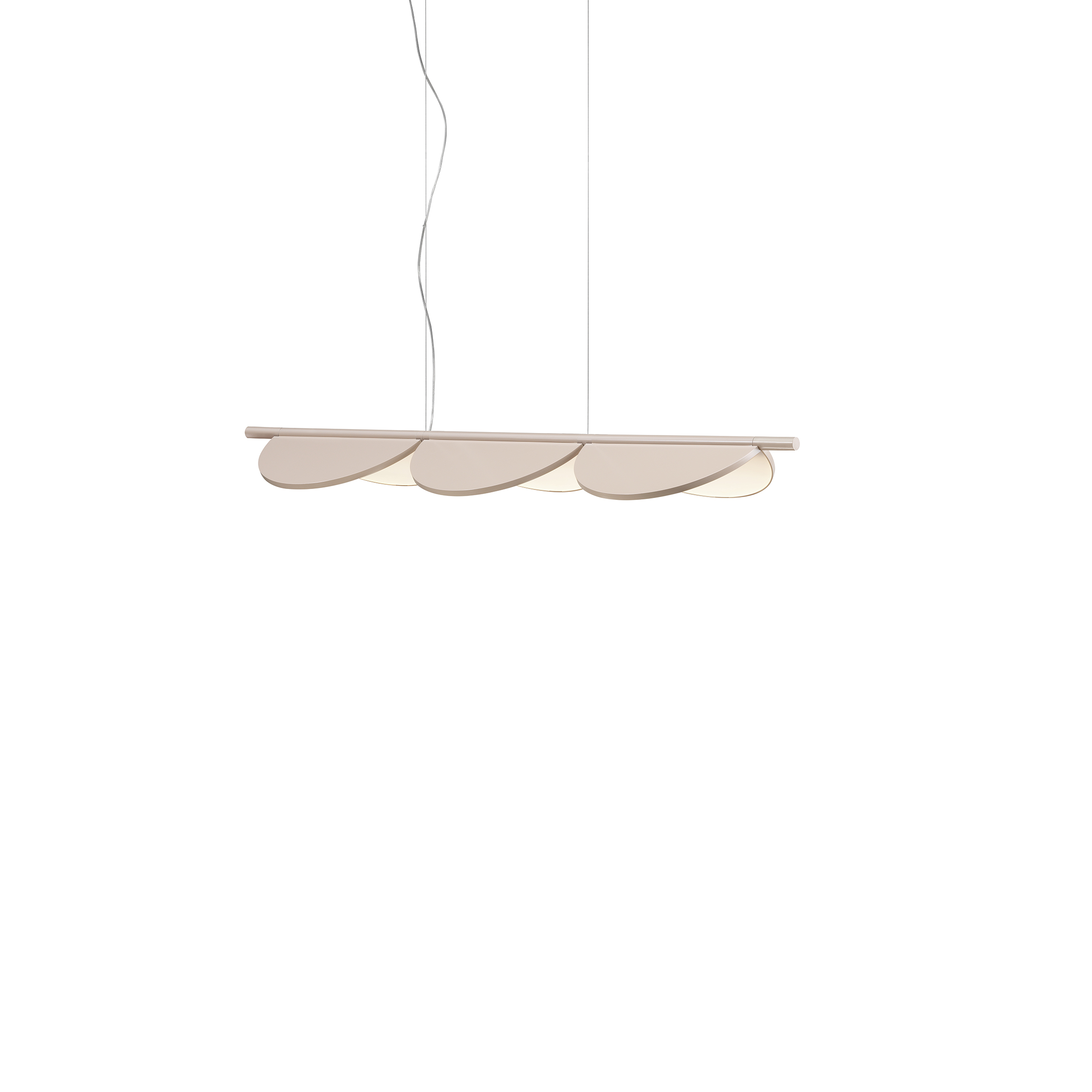

Almendra Linear Suspension 3

Suspension lamp with diffused light emission available in linear and organic compositions. Tubular structure made of aluminium and CNC aluminium terminals with matte or metallized finish. Edge Lighting technology integrated. Light units can be turned by steps of 60º within the structure in order to change the direction of the light emitted. Metal rosette with matte white finish.  The integrated electronics in the ceiling rose allow the use of different dimming systems: 1-10V, DALI, push-dim or potentiometer. Useful length of the cable 3 mt. The product has been designed according to the ISCC standards and it is assembled with total absence of glued components so that it can be completely separated for future recyclability.

45W - 1371lm - 2700K - CRI> 95

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Almendra-Linear_3
Main specifications
EAN
8059607048269
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
45
Lumen Output (lm)
1371
Schematic light drawing
32516_ALMENDRA_S_MAR_BODY
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Dimmable
Power supply type
, , ,
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
1286
Cord colour
productFields.physical.cordLength
2800
Canopy colour
Canopy length/diameter (mm)
420
Canopy width (mm)
70
Canopy height (mm)
39
Net weight (kg)
7.24
Package volume (m3)
0.15
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

REPLACEABLE2

PWRSUPRPL2

Spare Parts

F0420026-almendra-S3-flos-boom
