Decorative Almendra
F0391026 Nude

Almendra Linear Suspension 3 Primer

Suspension lamp with diffused light emission available in linear and organic compositions. Tubular structure made of aluminium and CNC aluminium terminals with matte or metallized finish. Edge Lighting technology integrated. Light units can be turned by steps of 60º within the structure in order to change the direction of the light emitted. Metal rosette with primer finish.  The integrated electronics in the ceiling rose allow the use of different dimming systems: 1-10V, DALI, push-dim or potentiometer. Useful length of the cable 3 mt. The product has been designed according to the ISCC standards and it is assembled with total absence of glued components so that it can be completely separated for future recyclability.

45W - 1371lm - 2700K - CRI> 95

Also available in:
Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8059607050705
Mounting
Suspension
Enviroment
Indoor dry location
Light source type
LED
LED type
Edge Lighting
Power (W)
45
System flux (lm)
1371
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
95
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmable 0-10V, Dimmable 1-10V, Dimmable DALI 1, Dimmable Push
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Nude
Length (mm)
1286
Cord colour
Clear
Canopy colour
Primer
Canopy dimension (mm)
420
Net weight (kg)
7.14
Package volume (m3)
0.15
IP
20
CE
CMIM Morocco
IECEE-CB
EAC
KOREA
UKCA
IRAM Argentina
CCC
USA
20
20

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

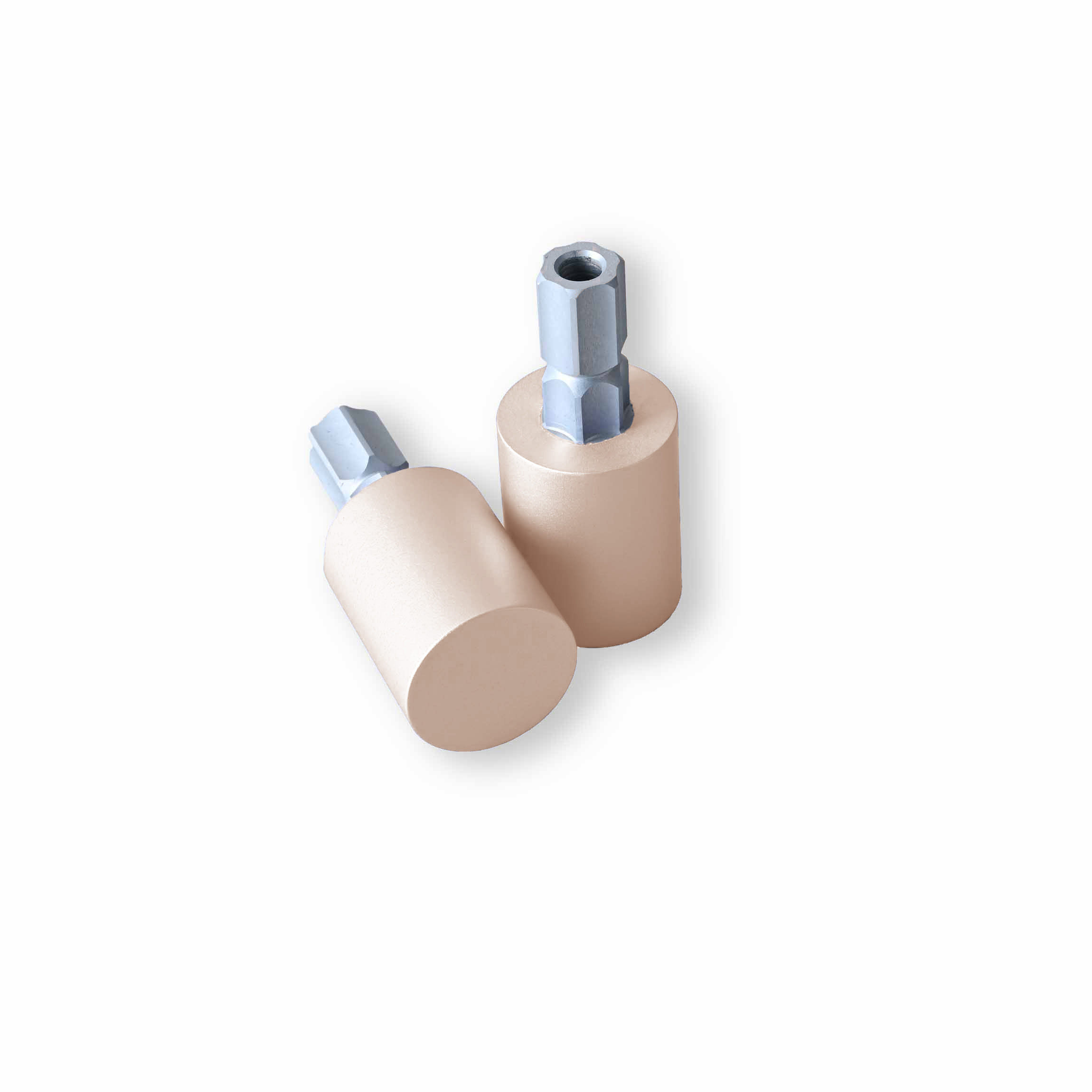

Spare Parts
