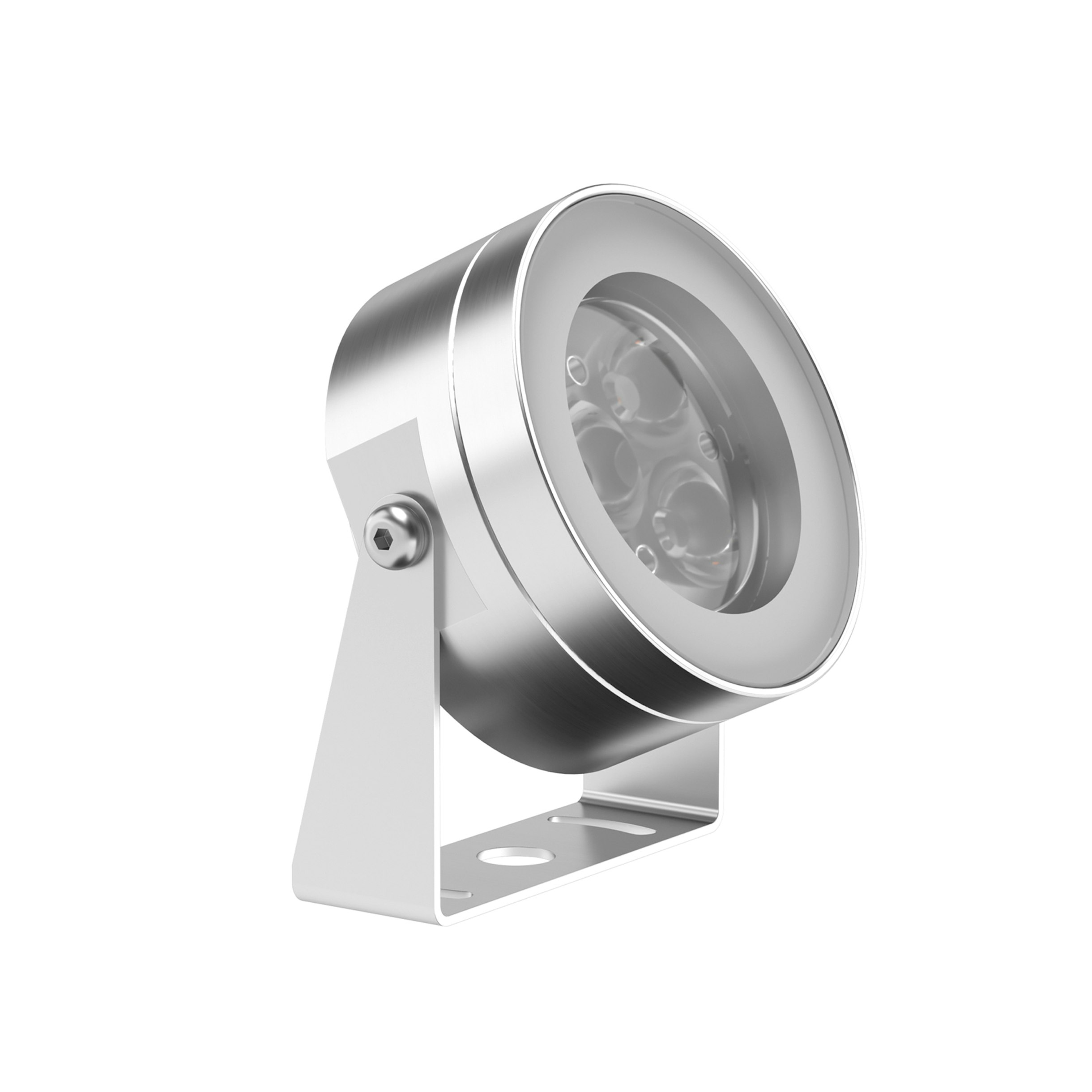

Outdoor Aimer
FA10517214657 Polished Stainless Steel

Aqua Aimer 3
New

LED source included. 316L stainless steel body and bracket, suitable for submersion. Remote electrical power supply 24V dc ON/OFF to be ordered separately. Parallel connection. Equipped with a 5000 mm protruding section of neoprene cable and a kit with crimpable connectors and adhesive heat-shrinkable sleeves that guarantee the tightness of the connection. Fixing bracket included. Extraclear transparent glass. The metal nail for ground installation needs to be ordered separately. 2700K and 3000K models available upon request.

3W - 267lm - 3000K - CRI> 80 - Beam° 50

Also available in:
Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8054793608259
Mounting
Ground
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
3
System power (W)
4.5
Source flux (lm)
359
System flux (lm)
267
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
50
Beam angle C90-270 (º)
50
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
24
Driver
Remote excluded
Dimmable
No
Dimming type
Non Dimmable
Dimming interface
Not Dimmable
Emergency type
No
Physical
Colour
Polished Stainless Steel
Orientation
Directional
Net weight (kg)
1.15
Package height (cm)
92
Package width (cm)
232
Package length (cm)
127
IP
68
IP external
66
IECEE-CB
EAC
CE
UKCA
Risk 1
USA
Risk 1
66
68
66
IK07 - 2.00 Joule
IK07 - 2.00 Joule
68
68
Notes

Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class G

REPLACEABLE2 Replaceable (LED only) light source by a professional

Accessories & Power Supply

optional (8)
