Outdoor Aimer
FA10517414457 Polished Stainless Steel

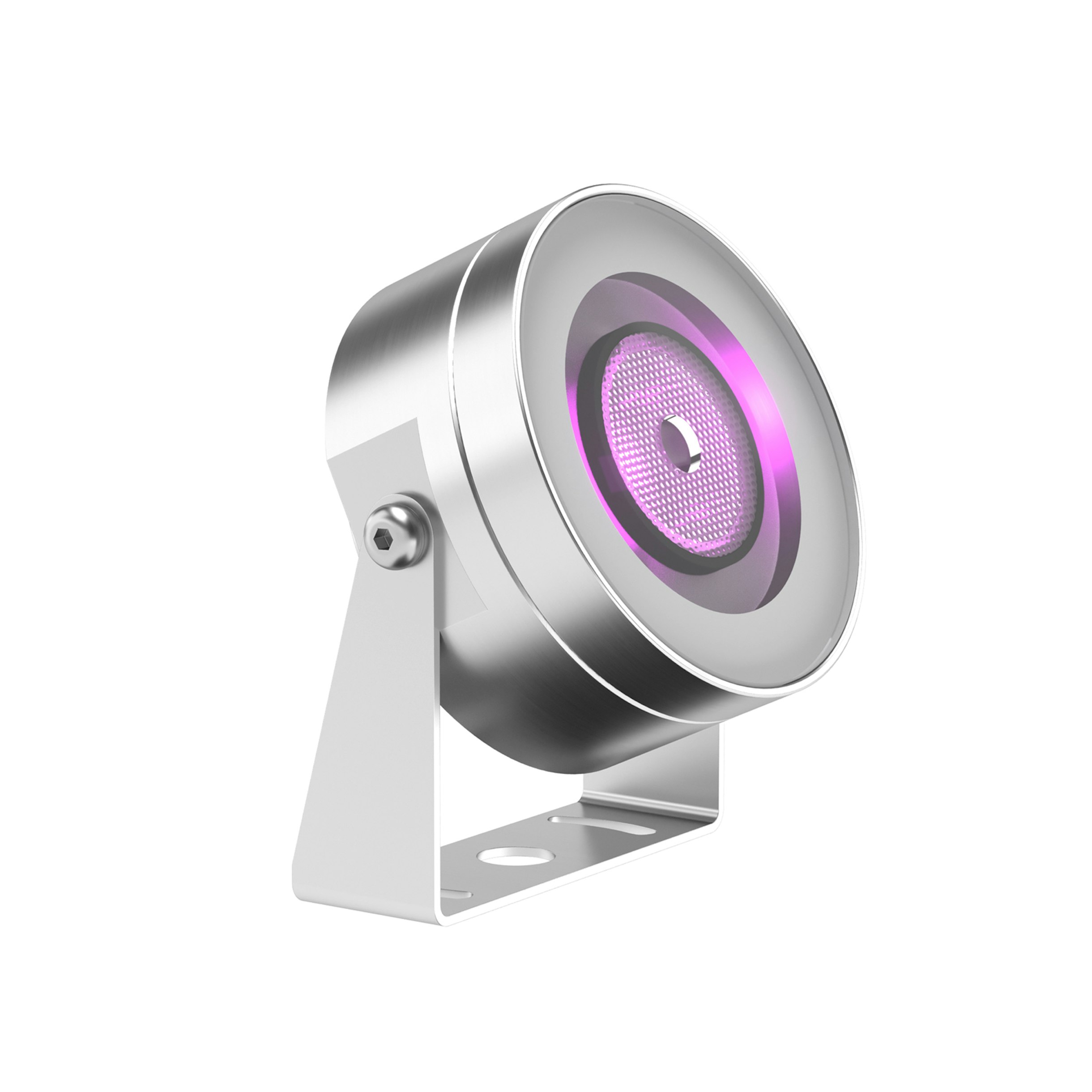

Aqua Aimer 3 Rgb
New

RGB LED source included. 316L stainless steel body and bracket, suitable for submersion. Remote electrical power supply with DMX 3chx350mA interface to be ordered separately. Serial connection. Equipped with a 5000 mm protruding section of neoprene cable and a kit with crimpable connectors and adhesive heat-shrinkable sleeves that guarantee the tightness of the connection. Transparent screen-printed glass. Fixing bracket included. The metal nail for ground installation needs to be ordered separately.

3W - RGBK

Also available in:
Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8054793608495
Mounting
Ground
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
3
System power (W)
3.4
Photometric
Light distribution
Symmetric
CCT (K)
RGB
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Driver
Remote excluded
Dimmable
Yes
Dimming type
Dimmable DMX
Dimming interface
Remote Dimmable (Dimmer Not Included)
Emergency type
No
Physical
Colour
Polished Stainless Steel
Orientation
Directional
Net weight (kg)
0.65
Package height (cm)
75
Package width (cm)
145
Package length (cm)
235
IP
68
IP external
66
IECEE-CB
EAC
CE
UKCA
Risk 1
USA
Risk 1
66
68
66
IK07 - 2.00 Joule
IK07 - 2.00 Joule
68
68
Notes

Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance

Ecodesign and Energy Labelling

REPLACEABLE2 Replaceable (LED only) light source by a professional

Accessories & Power Supply

optional (6)
