F0413030 Black

Arrangements Drop Down

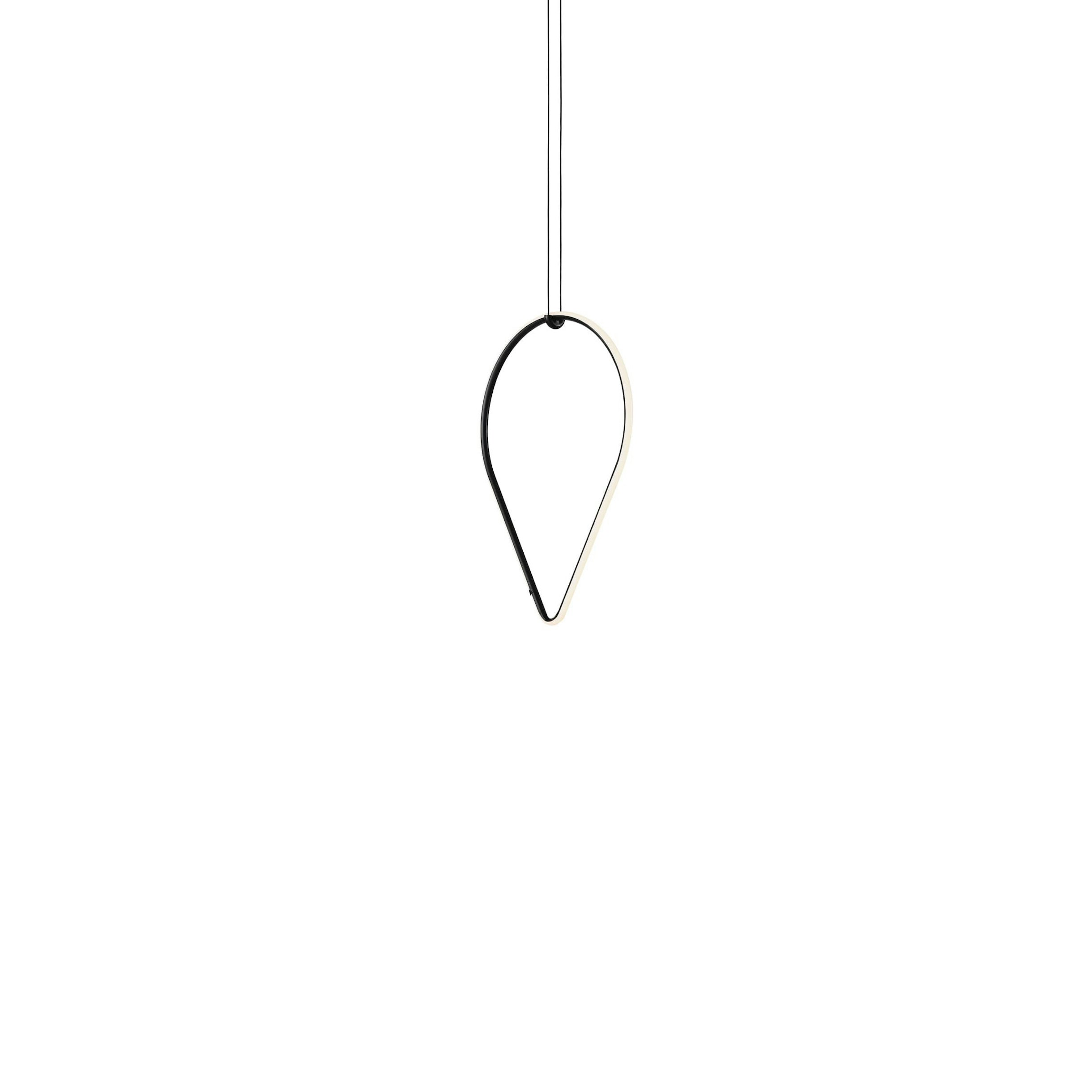

Diffuse light suspended lighting device. Body in extruded, curved NC-machined and black powder-coated aluminium, diffuser in platinum optical silicone. Each component can be connected to the power pack by means of an electrical and mechanical connection system designed for customisable product set-up. Roses available with two powers: lamp with power under 70W and lamp with power under 190W. Class III roses also available for installations with remote power supply: “surface” version for installations on cement, “recessed” version for plasterboard ceilings. The electronics integrated in the rose enables use of dimming systems: push, 1-10, potentiometer, DALI. In the absence of these systems, the light flow can be set with the push system included in the rose. Cable length 2.4m

30W - 1530lm - 2700K

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
Technical Drawing
Main specifications
EAN
8059607014158
Mounting
Suspension
Enviroment
Indoor dry location
Light source type
LED
LED type
LED Module
Power (W)
30
System flux (lm)
1530
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
2700
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
48
Driver
Remote
Dimmable
Yes
Dimming type
Electronic 48V
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Black
Length (mm)
495
Net weight (kg)
0.65
Package height (cm)
45
Package width (cm)
545
Package length (cm)
755
Package volume (m3)
0.02
IP
20
CE
CMIM Morocco
IECEE-CB
EAC
RETILAP
UKCA
USA
20
20

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

Accessories & Power Supply

required (6)
