05.5155.ER.CB Brushed Steel

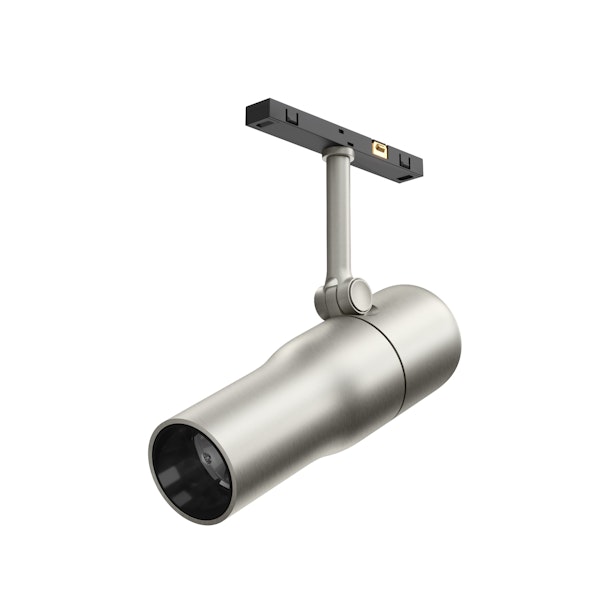

Atom 120 Casambi Dimmable
New
Designed by FLOS Architectural, 2023
LED projection lighting module for installation in the Zero Track Pro system. Electronic DC/DC converter incorporated. Individual wireless adjustment via Casambi. Casambi control implemented via the FLOS Control® app for mobile devices (available in the Apple Store and Google Play).
8W - 440lm - 3000K - CRI> 90 - Beam° 14
Technical Drawing
Main specifications
Mounting
Track
Enviroment
Indoor dry location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
8
Source flux (lm)
648
System flux (lm)
440
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
2
Beam angle C0-180 (º)
14
Beam angle C90-270 (º)
14
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
24
LED current (mA)
600
Driver
Remote excluded
Dimmable
Yes
Dimming type
Dimmable Casambi
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Brushed Steel
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Net weight (kg)
0.16
IP
20
Photometric Files
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class G
Non-replaceable light source
Replaceable control gear by a professional
