Architectural The Glowing Track Zero Track & Pro
05.5156.14.CB Black

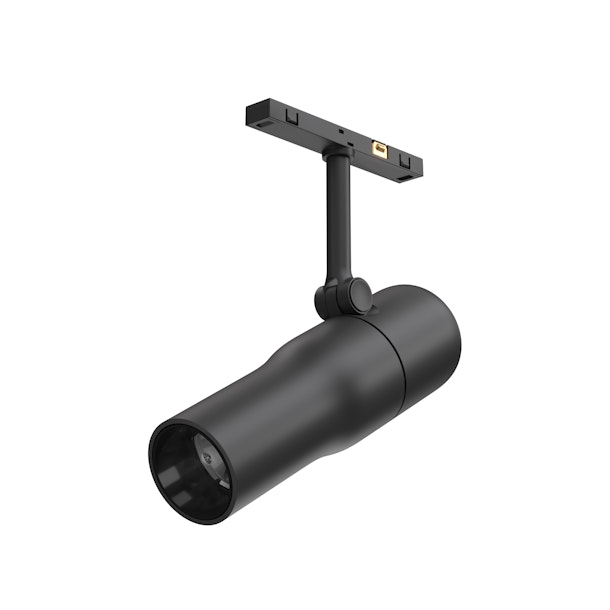

Atom 120 Casambi Dimmable
New

LED projection lighting module for installation in the Zero Track Pro system. Electronic DC/DC converter incorporated. Individual wireless adjustment via Casambi. Casambi control implemented via the FLOS Control® app for mobile devices (available in the Apple Store and Google Play).

8W - 373lm - 3000K - CRI> 90 - Beam° 20

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
Mounting
Track
Enviroment
Indoor dry location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
8
Source flux (lm)
648
System flux (lm)
373
Efficacy (lm/W)
47
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
2
Beam angle C0-180 (º)
20
Beam angle C90-270 (º)
20
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
24
LED current (mA)
600
Driver
Remote excluded
Dimmable
Yes
Dimming type
Dimmable Casambi
Dimming range (%)
1-100
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Black
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Net weight (kg)
0.16
IP
20
EAC
CE
UKCA
Canada & USA
Canada & USA
USA
Flammable Surface
20
20

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class G

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional
