F1081064 Bright Aluminium

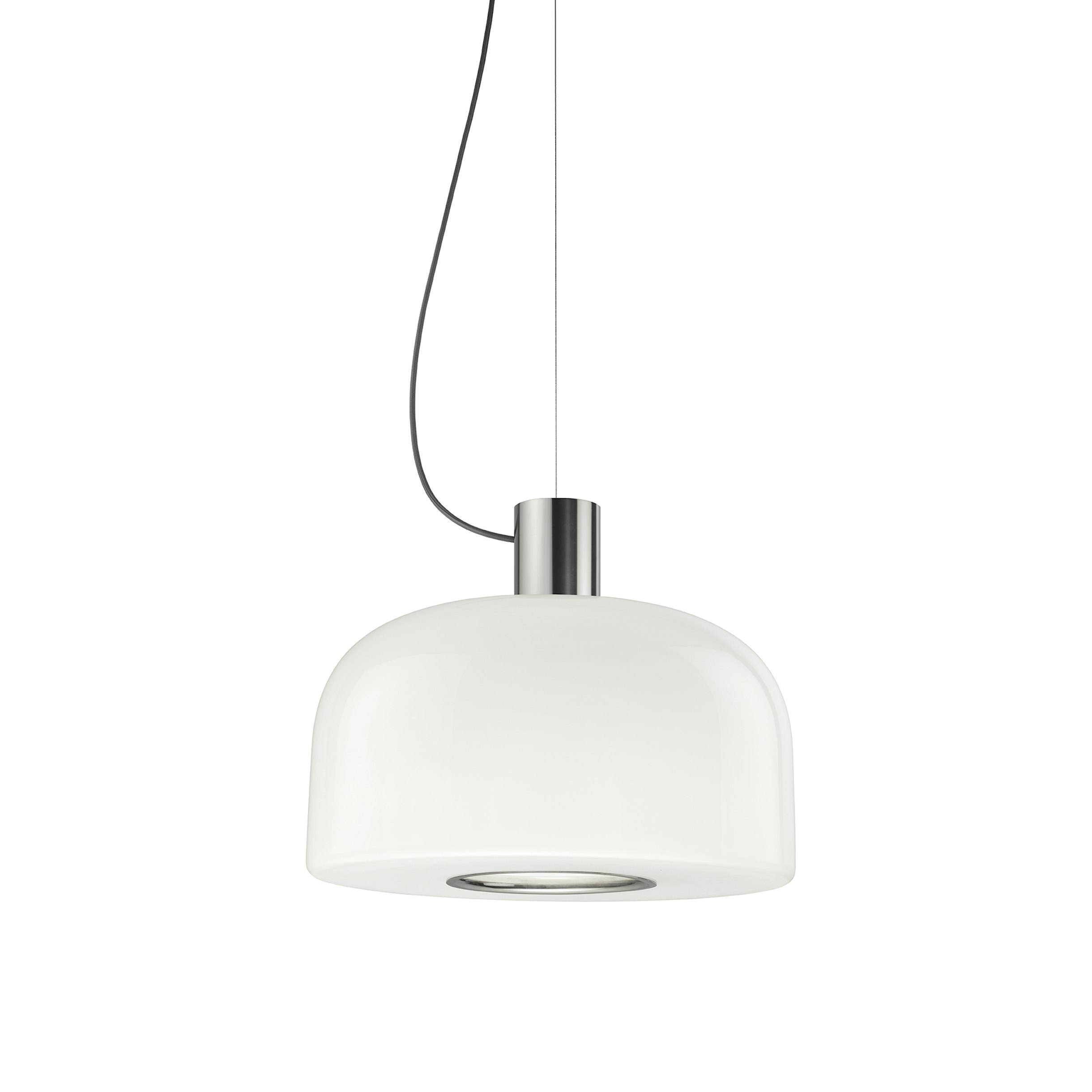

Bellhop Glass S2

Bellhop Glass Suspension can be used it as an ambient but also as a task light, which directly illuminates, with a non-blinding cone of light, the surface on which it is suspended. The hole in the bottom part of the lamp, protected by an aluminum element, is shaped to direct the light (and change the bulb) avoiding the diffusion up to the eyes of those sitting at the table. A cone of light is therefore created inside the suspended Bellhop Glass, which expands homogeneously in the environment on all sides and lands on the table precisely, like a torch, visually signaled by the colored aluminum ring that surrounds the lower opening of the lamp.

LED retrofit - 30W

Also available in:
Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
Technical Drawing
Main specifications
EAN
8059607067758
Mounting
Suspension
Enviroment
Indoor dry location
Light source type
Bulb
Lamp category
LED retrofit
Lamp holder
E27
Ilcos
HSGSA
Number of heads
1
Power (W)
30
System power (W)
30
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Cord length (mm)
2700
Batteries inside
No
Physical
Colour
Bright Aluminium
Orientation
Fixed
Length (mm)
450
Cord colour
Grey
Cord length (mm)
2700
Canopy colour
White
Canopy dimension (mm)
132
Net weight (kg)
7.2
Package volume (m3)
0.14
IP
20
IECEE-CB
CMIM Morocco
EAC
CE
RETILAP
UKCA
03 - Italy
03 - Italy
USA
Autoprotected Lamp
20
20

Ecodesign and Energy Labelling

REPLACEABLE4 Replaceable (LED only) light source by an end-user
