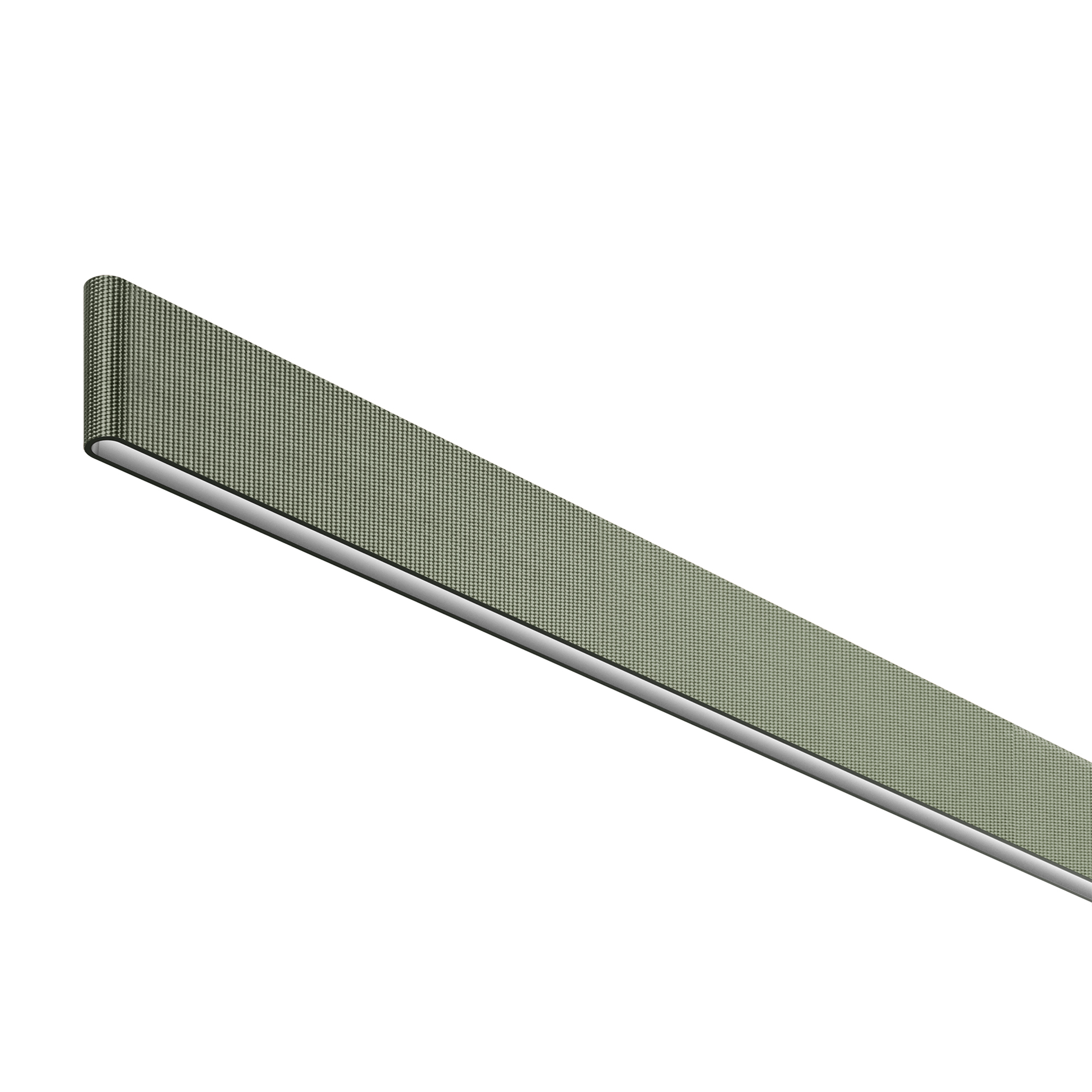

03.8500.GO.CB Grey OliveBelt Fabric L 2000 mm Casambi integrated
Designed by Ronan & Erwan Bouroullec

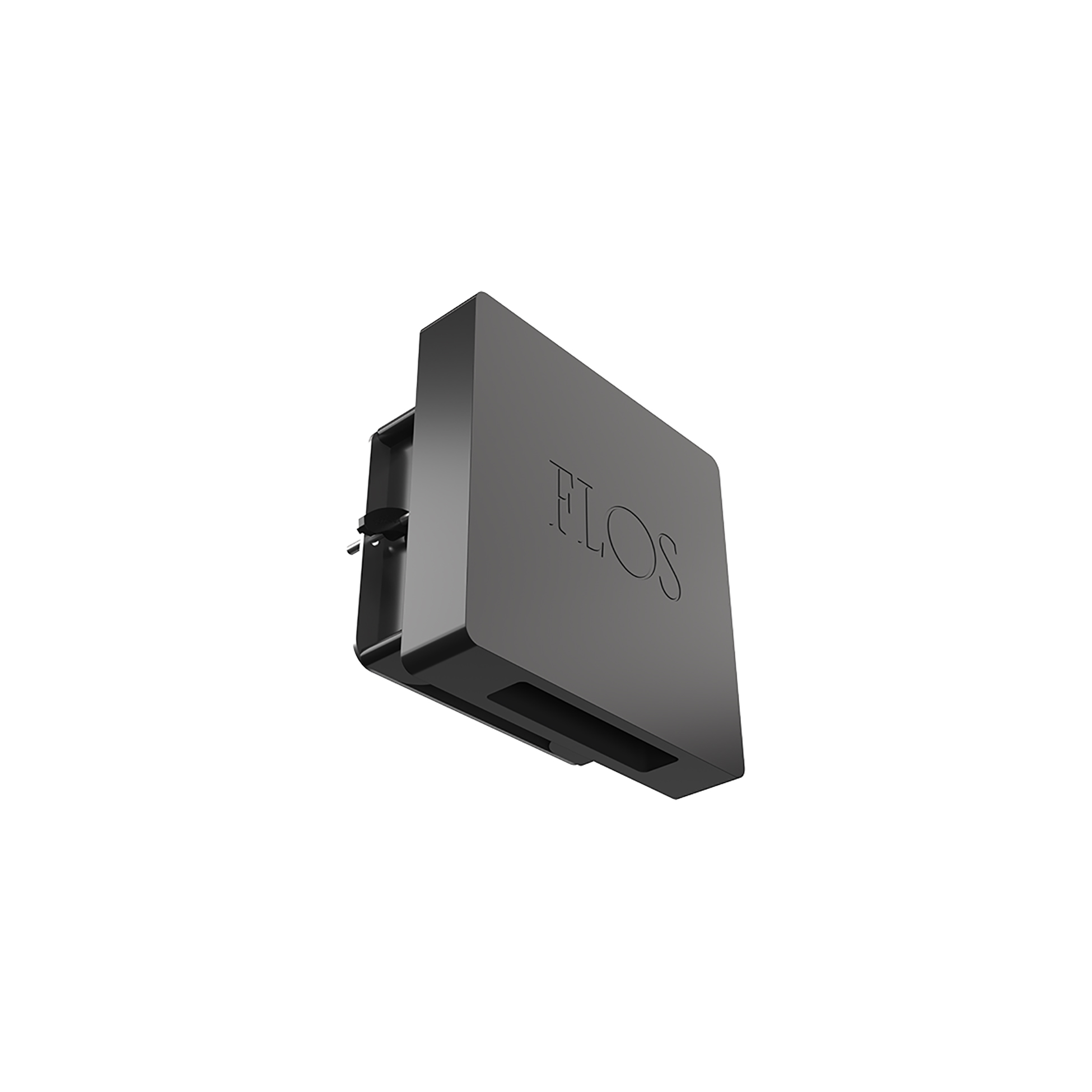

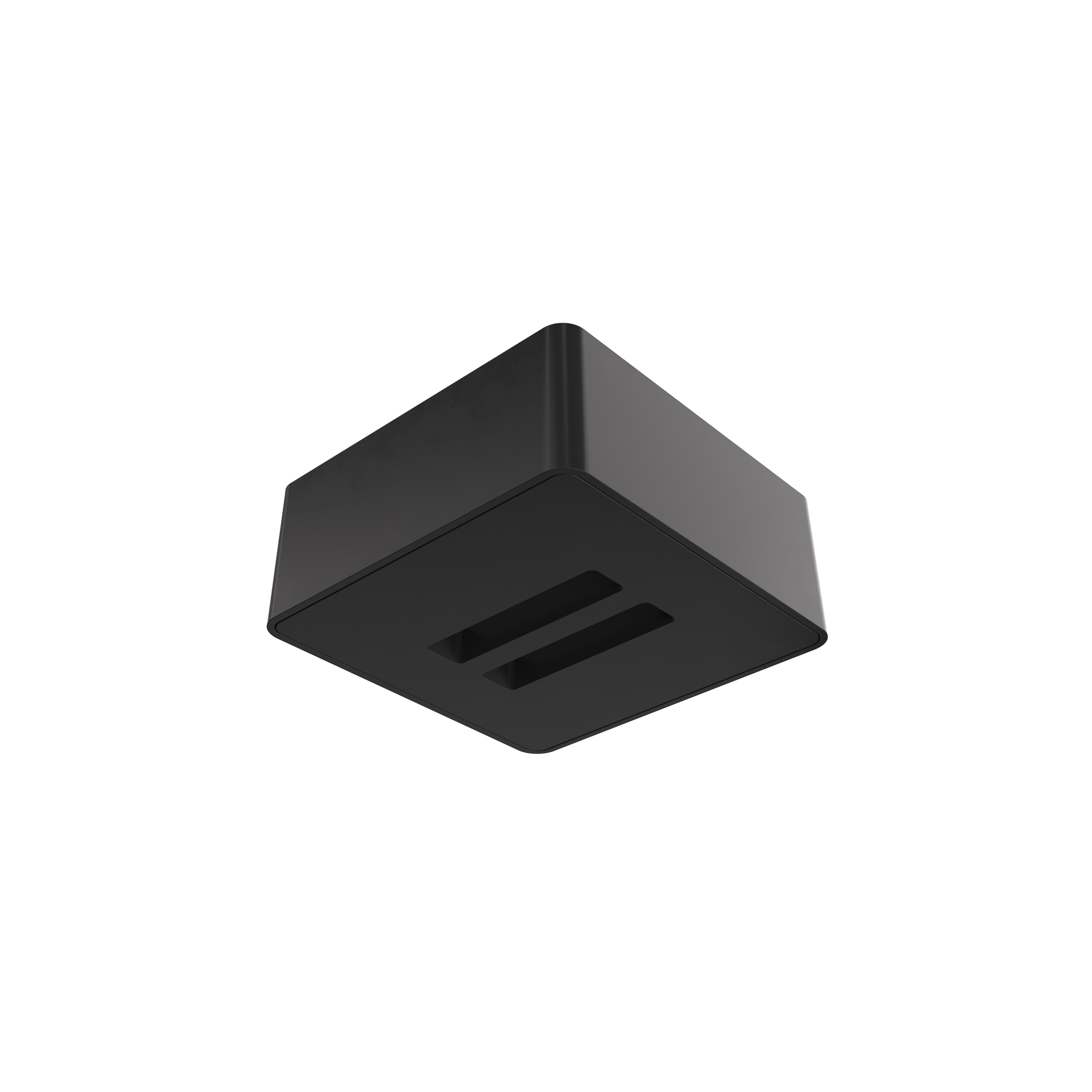

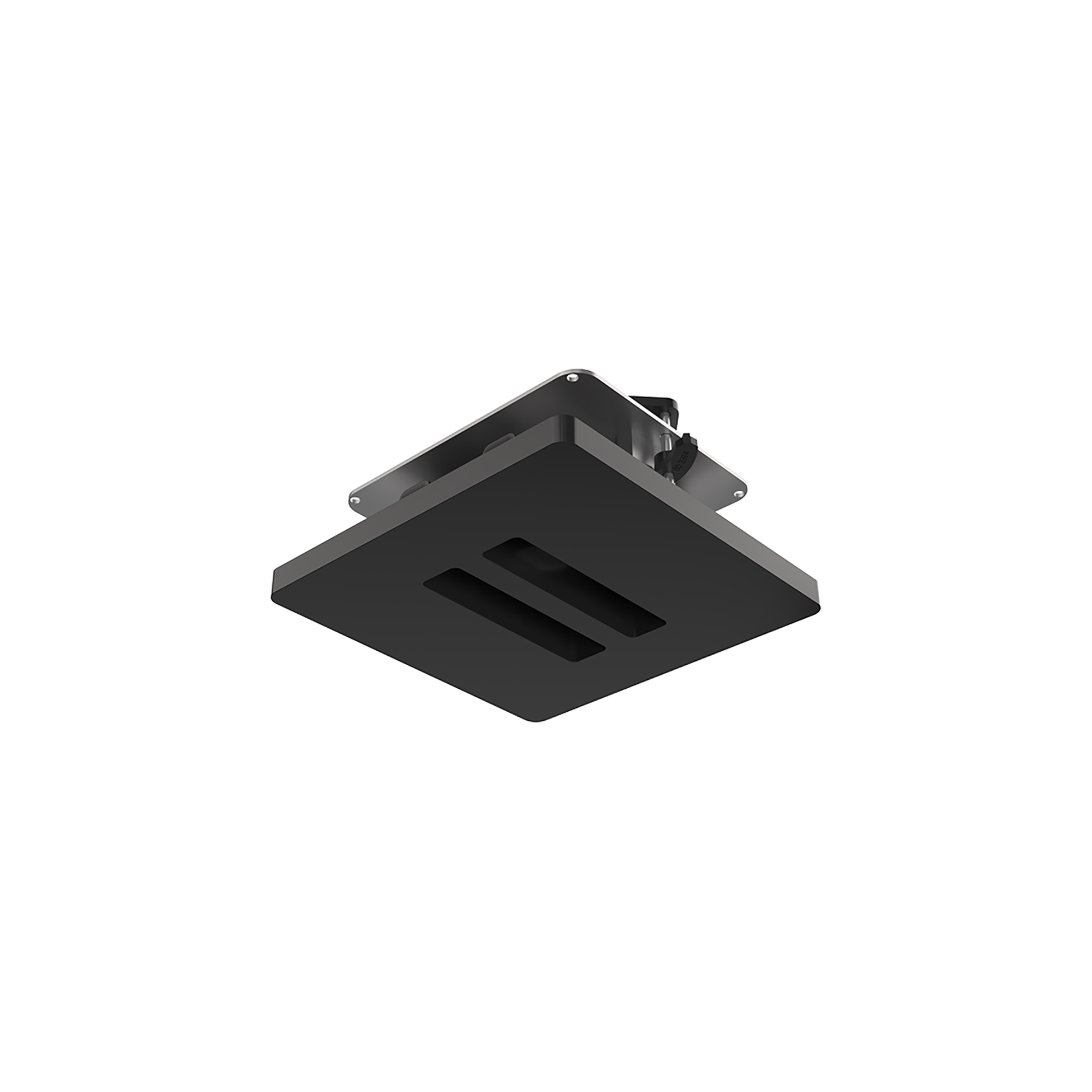

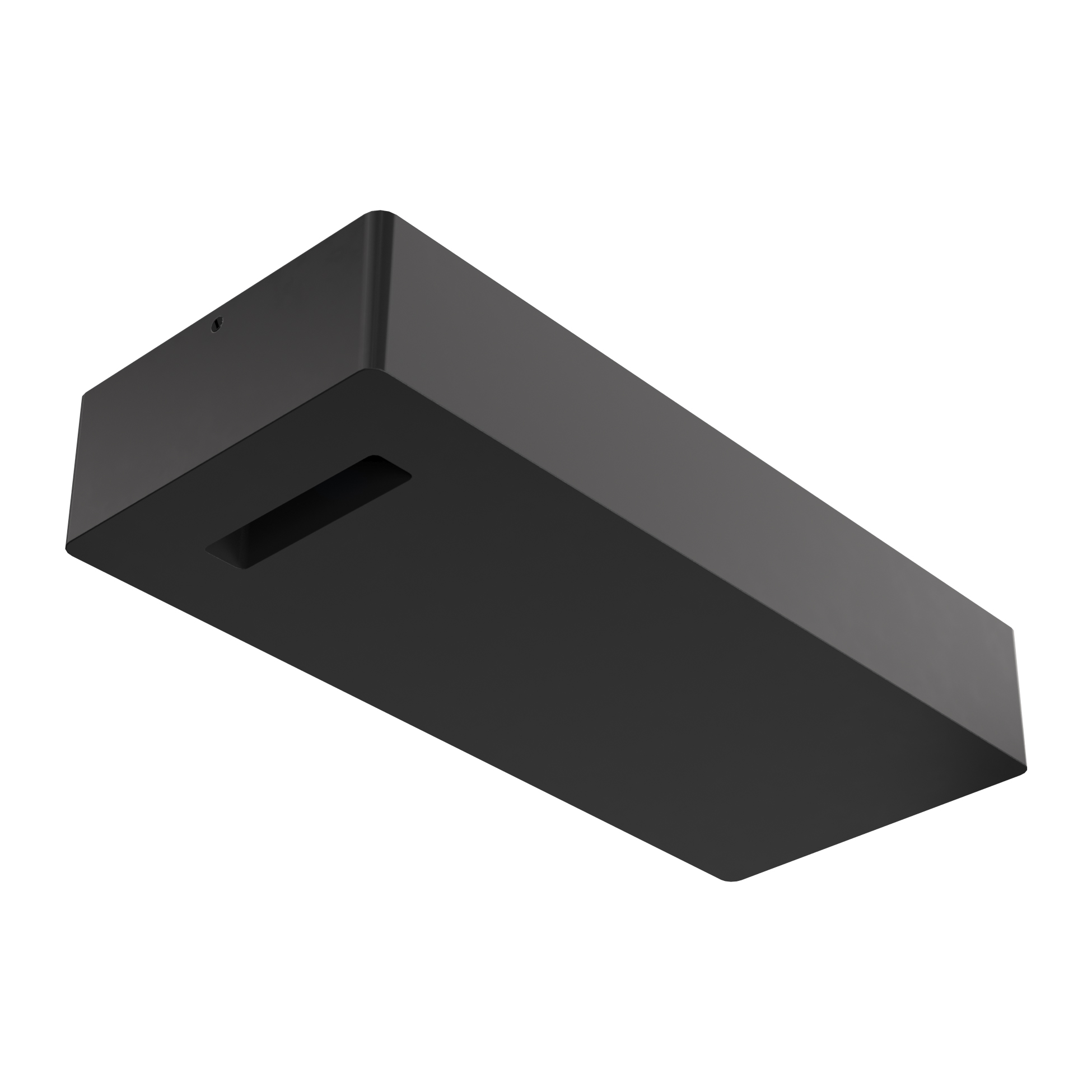

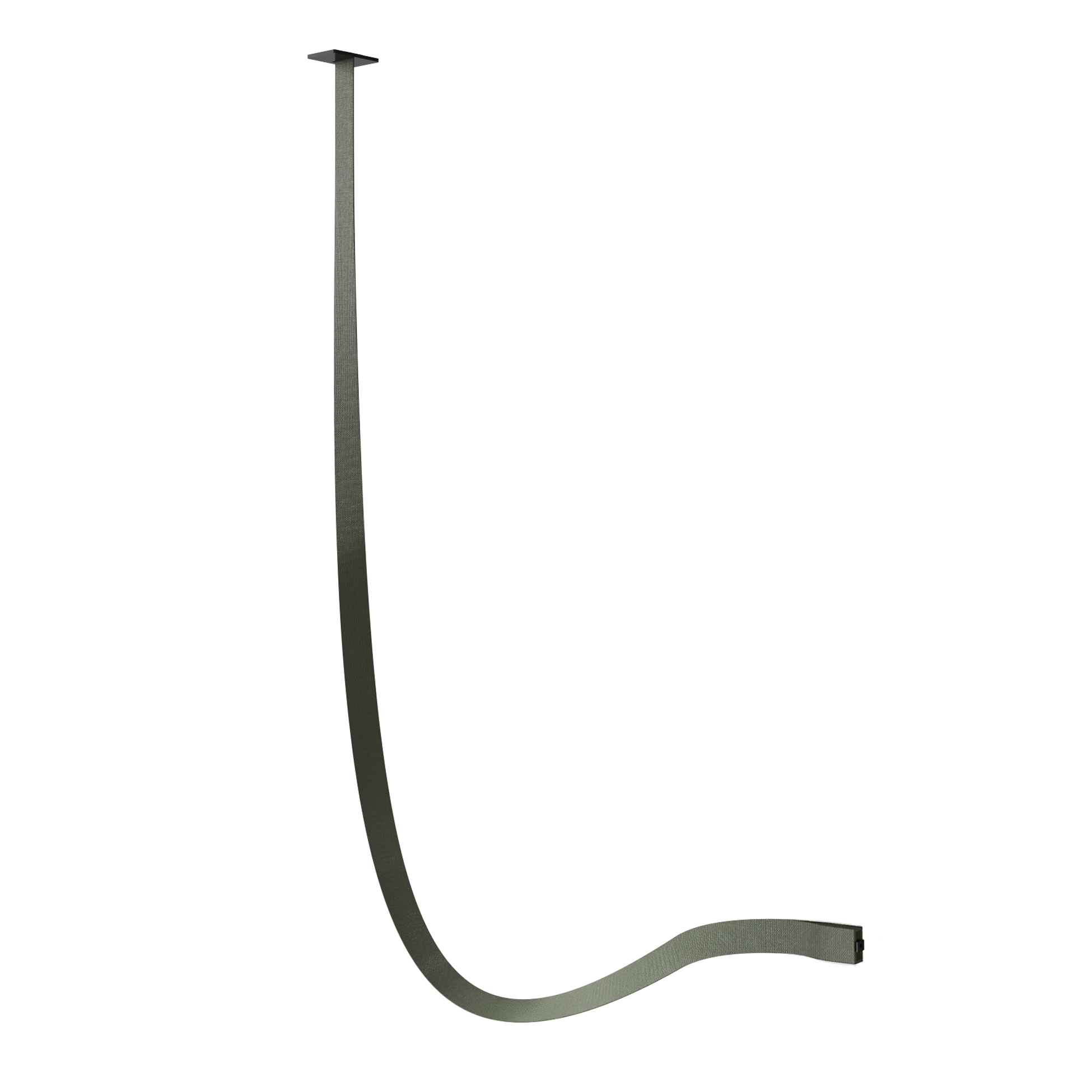

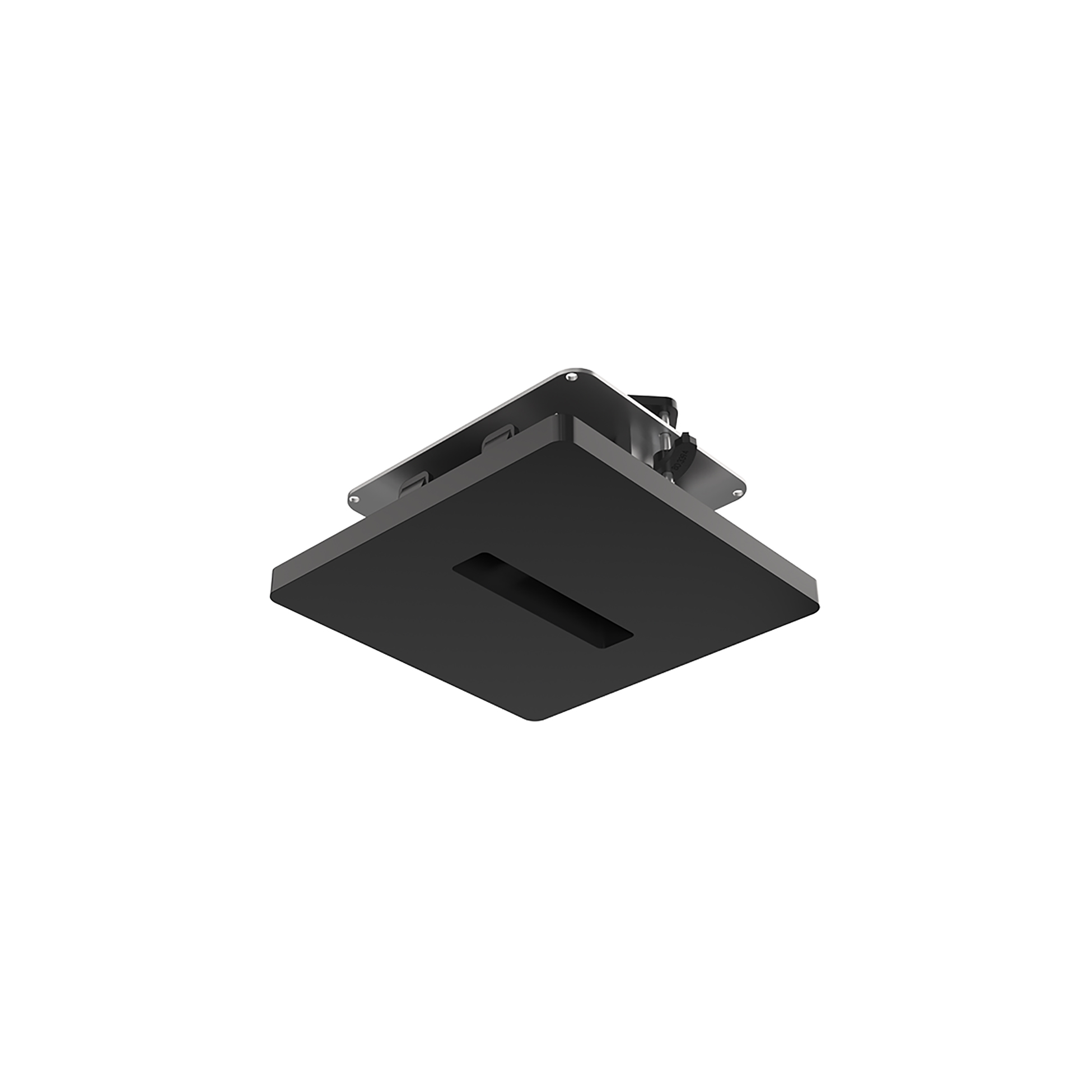

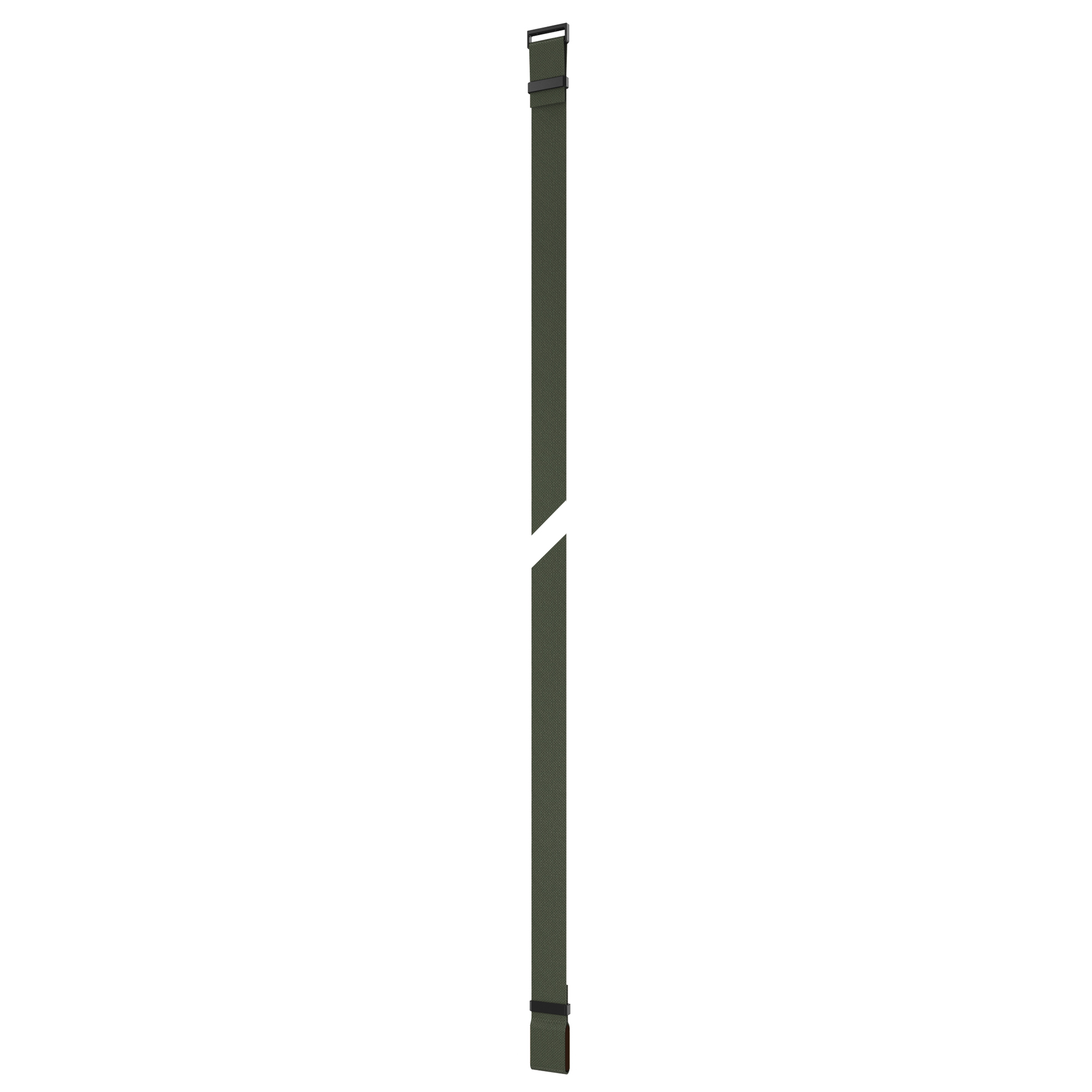

Electromechanical profile for interior use with integrated linear lighting for suspended installation available with 2 or 3 m lengths. Installation via suspension leather or fabric straps on the ceiling and remote power kit, to be ordered separately. Up&Down system controlled via DALI or CASAMBI individually and via 1-10V all together (Broadcast).
55W - 1694lm - 2700K - CRI> 95 - Beam° 60
Technical Drawing
Main specifications
Mounting
Suspension
Enviroment
Indoor dry location
Light source type
LED
LED type
Top LED
Power (W)
55
System flux (lm)
1694
Schematic light drawing
Photometric
Lighting type
Indirect, Direct
Light distribution
Asymmetric
CCT (K)
2700
CRI>
95
McAdam steps (SDCM)
3
Beam angle C0-180 (º)
60
Beam angle C90-270 (º)
100
Beam angle indirect C0-180 (º)
70
Beam angle direct C90-270 (º)
90
Electrical
Insulation class
III
Forward voltage (V)
48

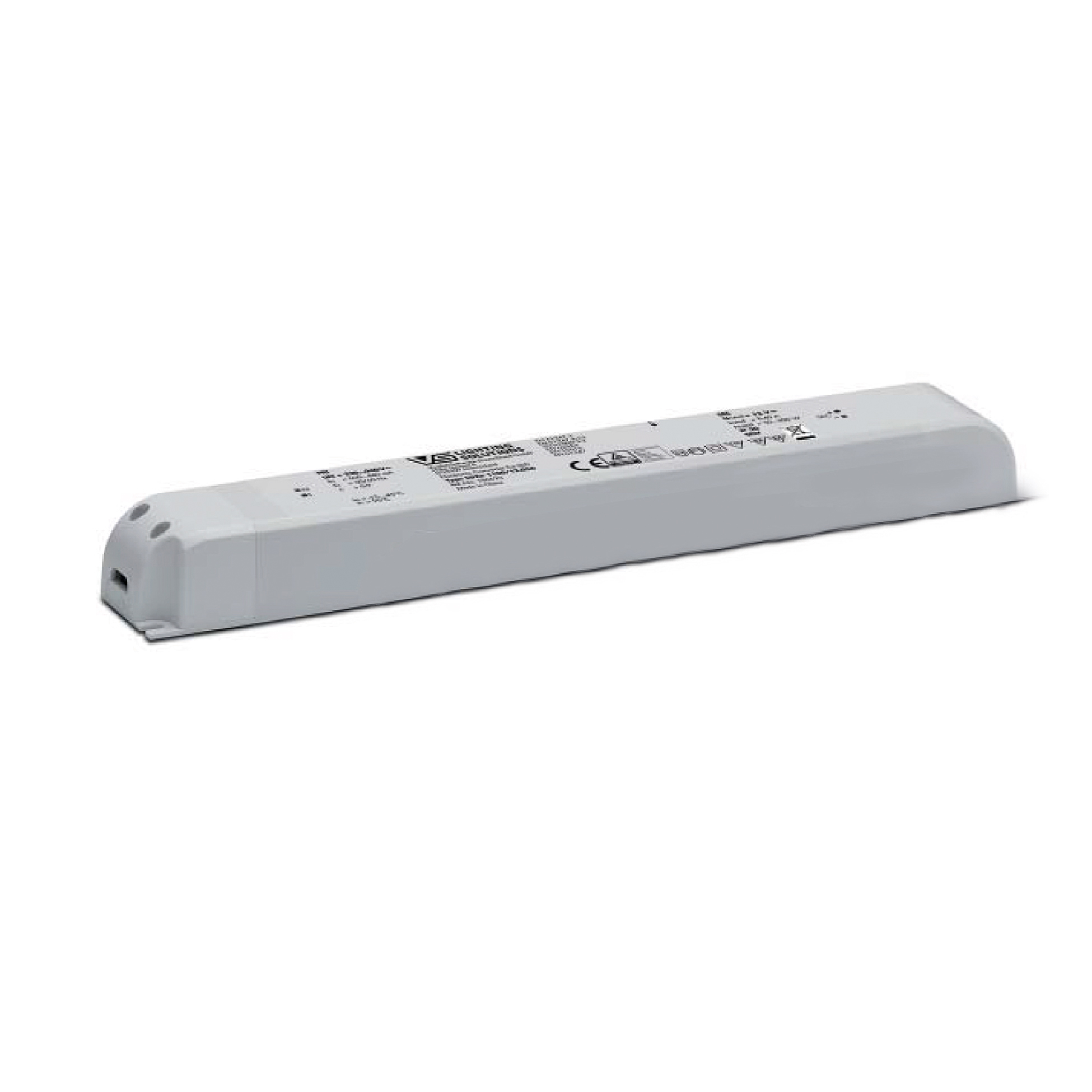

Driver
Remote excluded
Dimmable
Yes
Dimming type
Dimmable Casambi
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Grey Olive
Orientation
Fixed
Length (mm)
2000
Net weight (kg)
2.1
Package height (cm)
127
Package width (cm)
2600
Package length (cm)
127
IP
20
Notes

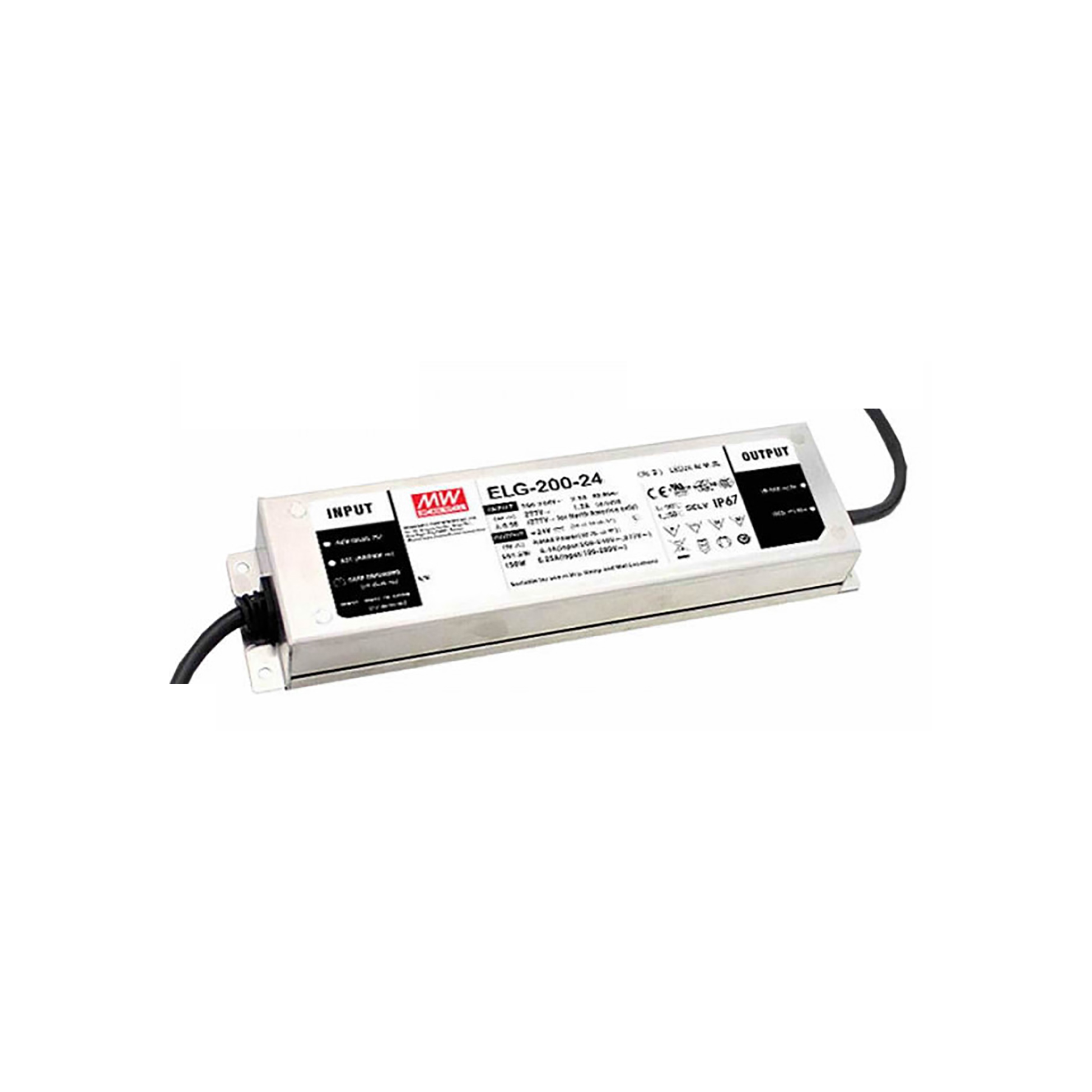

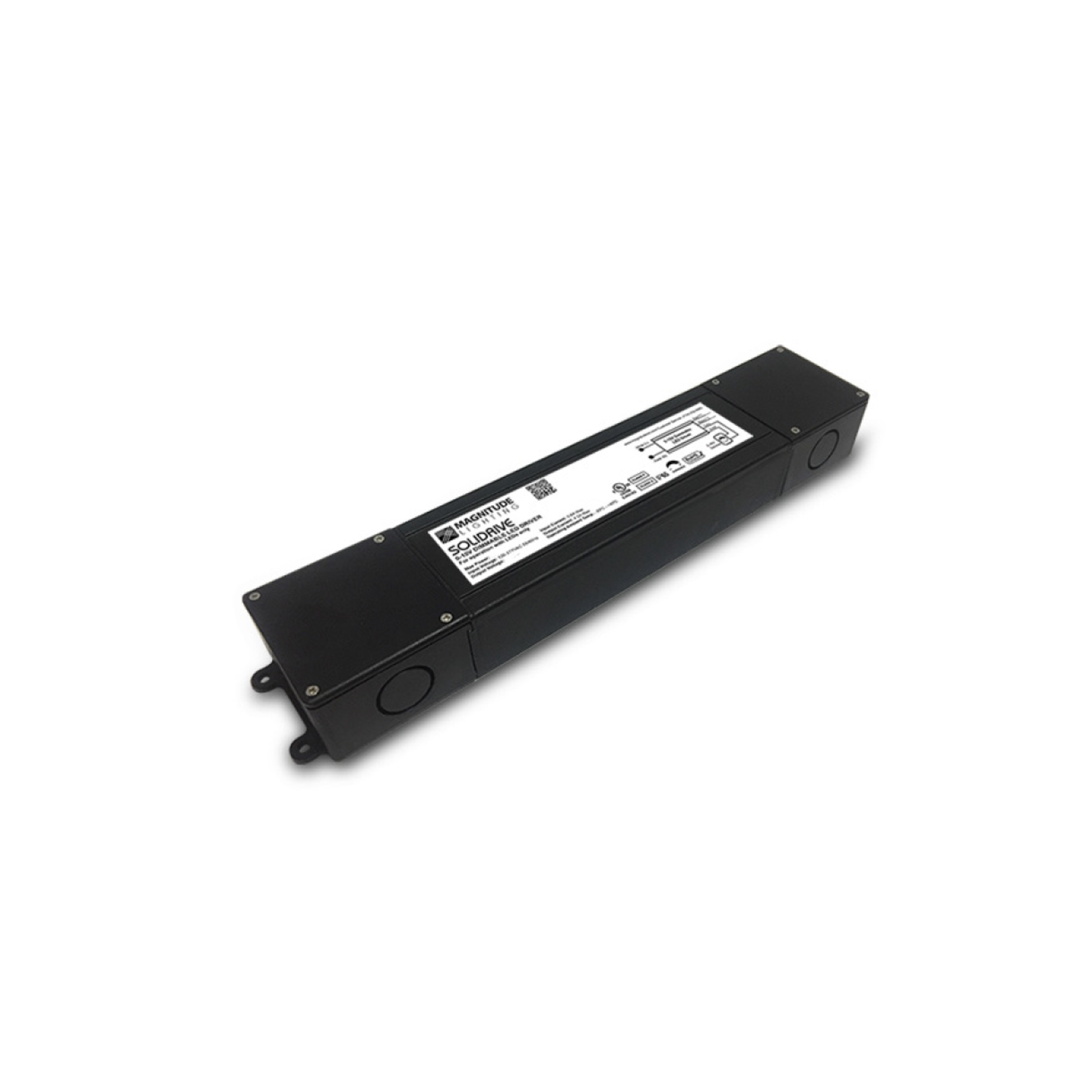

Power kit and suspension straps sold separately. For the sizing of the installation keep a safety margin of 15% of the maximum power of the LED power source.
Photometric Files
Ecodesign and Energy Labelling
Replaceable (LED only) light source by a professional
