Bon JourBon Jour Ø 45
Designed by Philippe Starck, 2016

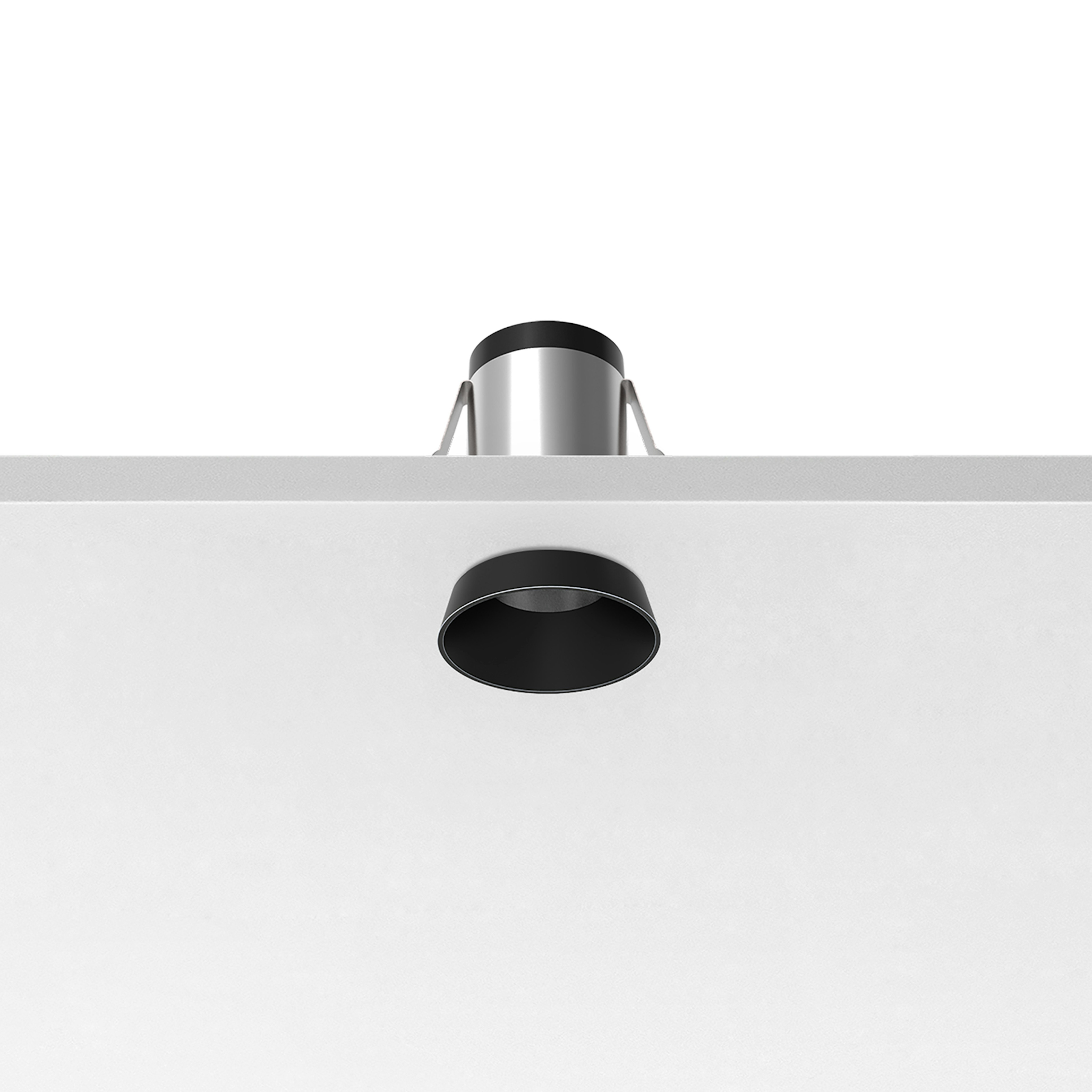

Recessed luminaire with LED light source. Remote 220/240V power supply included. It is necessary to anticipate a space for accessing the driver.
4.5W - 311lm - 2700K - CRI> 90 - Beam° 19
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
4.5
System power (W)
6
Source flux (lm)
524
Lumen Output (lm)
311
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Rf fidelity index
90
Rg gamut index
99
LED Life / Failure Ratio
L80B20 >36000h (Tc=85ºC)
Beam angle C0-180 (º)
19
Beam angle C90-270 (º)
19
UGRL
<10
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Forward voltage (V)
11.5
LED current (mA)
400
Power supply
Dimmable
Power supply type
Physical
Colour
Trim
Yes
Recessed depth (mm)
187
Bezel diameter (mm)
45
Net weight (kg)
0.13
Package volume (m3)
0.01
IP internal
IP external
Notes
Accessories included (honeycomb and cross screening cylinder)
