Outdoor C-ME
FA10018240 Transparent

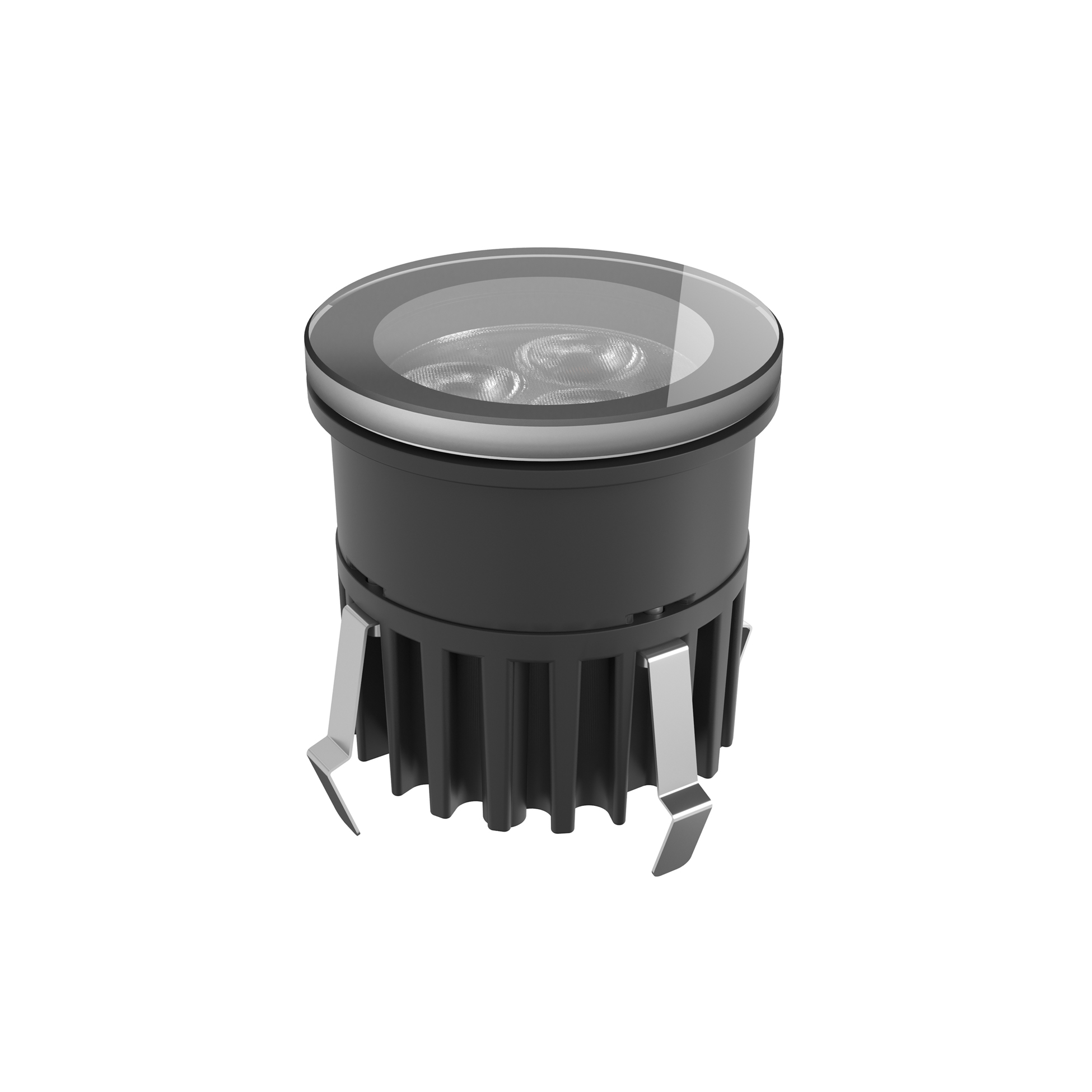

C-Me Round 70
New

LED source included. 24V dc remote electric power supply to be ordered separately. Requires a junction box to be ordered separately. The luminaire is equipped with a protruding, neoprene, 200 mm cable with an integrated H2O STOP connection system and a wiring kit with crimp connectors and adhesive heat-shrink tubing guaranteeing the water tightness of the connection. Extra clear transparent glass. Adjustable light intensity version available upon request.

5W - 329lm - 2700K - CRI> 80 - Beam° 50

Also available in:
Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8054793605784
Mounting
In-ground
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
5
System power (W)
5.9
Source flux (lm)
431
System flux (lm)
329
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
2700
CRI>
80
Beam angle C0-180 (º)
50
Beam angle C90-270 (º)
50
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
24
Driver
Remote excluded
Dimmable
No
Dimming type
Non Dimmable
Dimming interface
Not Dimmable
Emergency type
No
Physical
Colour
Transparent
Orientation
Fixed
Net weight (kg)
0.37
Package height (cm)
90
Package width (cm)
140
Package length (cm)
140
IP
67
IP external
66
IECEE-CB
EAC
CE
UKCA
USA
66
66
IK08 - 5.00 Joule
IK08 - 5.00 Joule
67
Notes

Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance'

Dimmable version on request

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class G

REPLACEABLE2 Replaceable (LED only) light source by a professional

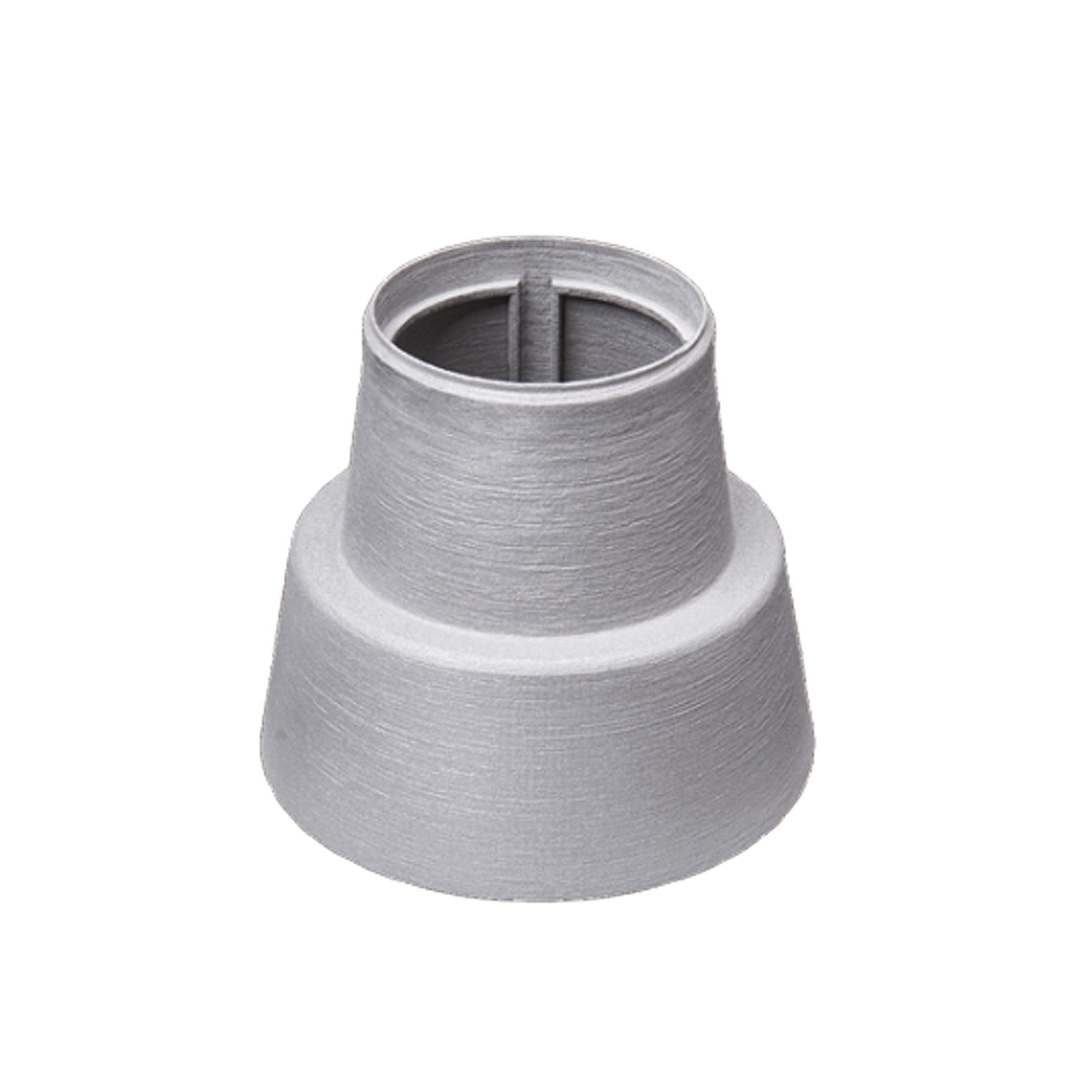

Accessories & Power Supply

required (7)
optional (1)
