FA100174125 Opal

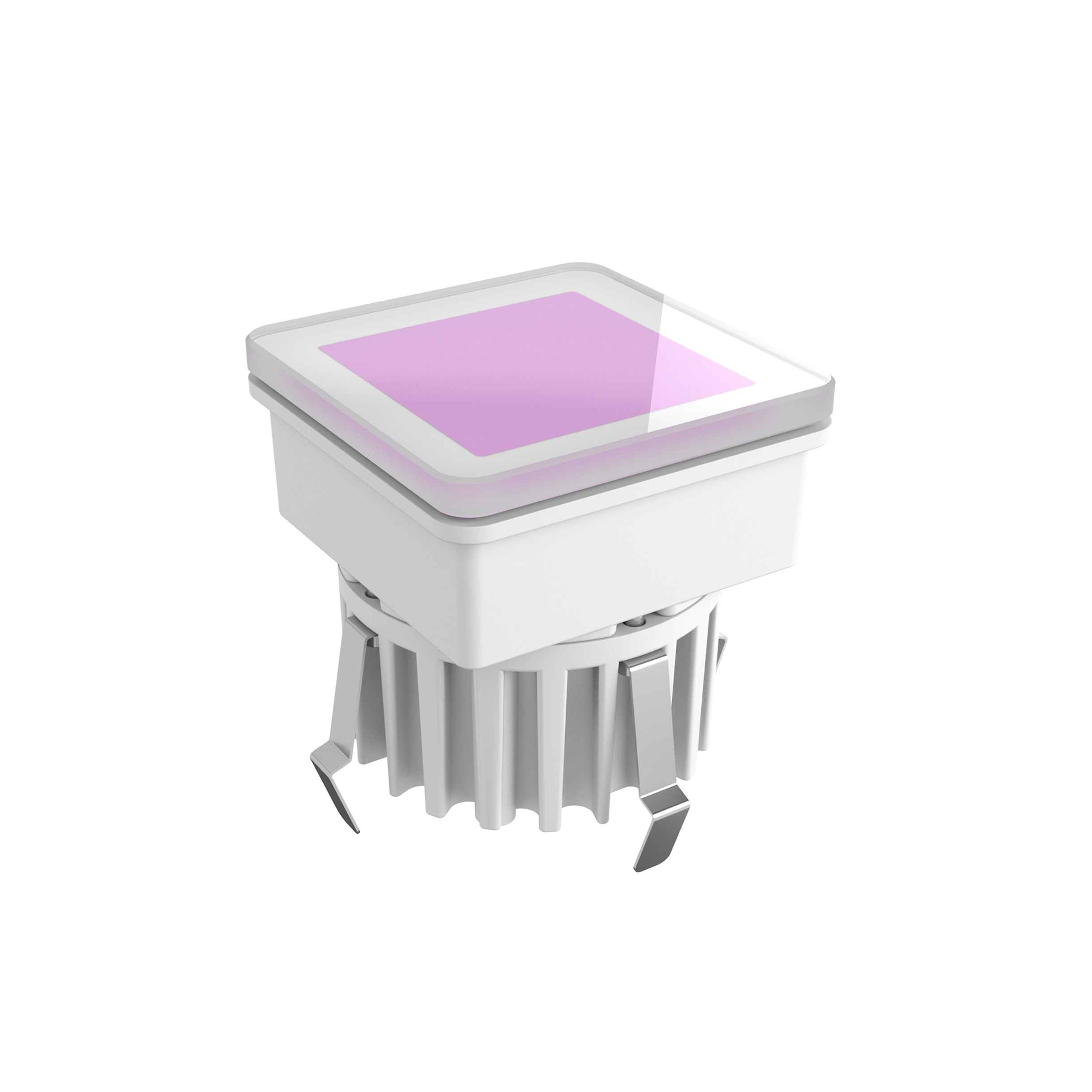

C-Me Square 70 Opal Rgb
New
Designed by FLOS Outdoor, 2008
LED source included. Remote electric power supply with DMX 3chx350mA interface, to be ordered separately. Requires a junction box to be ordered separately. The luminaire is equipped with a protruding, neoprene, 200 mm cable and a wiring kit with crimp connectors and adhesive heat-shrink tubing guaranteeing the water tightness of the connection. Extra clear transparent glass.
3W - RGBK
Also available in:
Technical Drawing
Main specifications
EAN
8054793604954
Mounting
In-ground
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
3
System power (W)
3.4
Photometric
Light distribution
Symmetric
CCT (K)
RGB
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
24
Driver
Remote excluded
Dimmable
Yes
Dimming type
Dimmable DMX
Dimming interface
Remote Dimmable (Dimmer Not Included)
Emergency type
No
Physical
Colour
Opal
Orientation
Fixed
Net weight (kg)
0.41
Package height (cm)
134
Package width (cm)
134
Package length (cm)
83
IP
67
IP external
66
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance'
Dimmable version on request
Ecodesign and Energy Labelling
Replaceable (LED only) light source by a professional
