Clara
F1570009

Clara

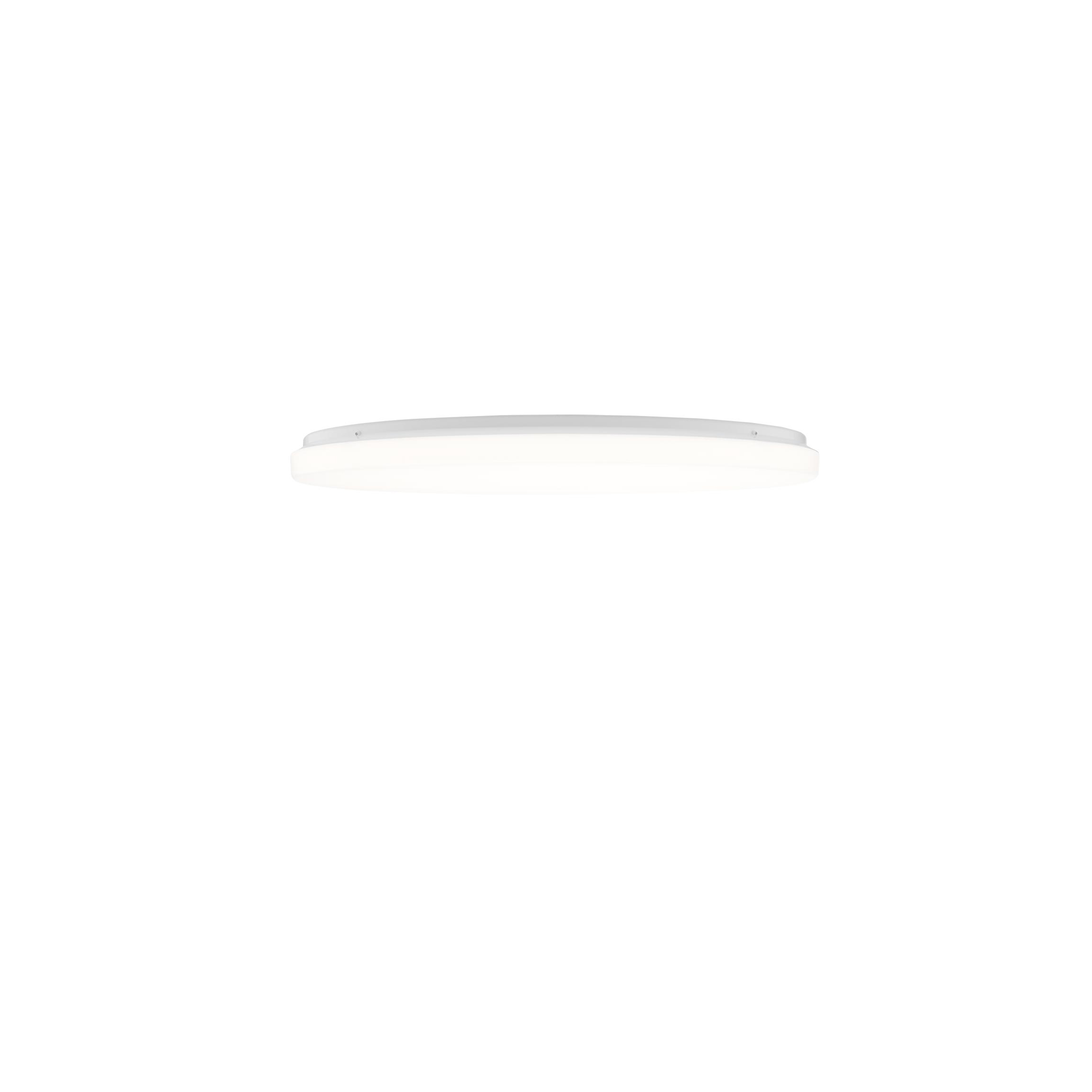

Ceiling or wall-mounted lamp emitting diffused light. Front diffuser made of high-efficiency injection-moulded opaline polycarbonate, with optional interchangeable decorative crowns. Ceiling/wall fitting in injection-moulded polycarbonate. Dimmable LED light source powered directly by mains voltage without the need for a transformer.

57W - 3141lm - 2700K

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Ceiling-Clara
Main specifications
EAN
8059607015322
Mounting
,
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
57
Lumen Output (lm)
3141
Schematic light drawing
F1570009WCLARA_57W-LED
Photometric
Lighting type
Light distribution
CCT (K)
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Dimmable
Power supply type
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
600
Net weight (kg)
3.9
Package height (mm)
110
Package width (mm)
670
Package length (mm)
680
Package volume (m3)
0.05
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

REPLACEABLE2

Accessories & Power Supply

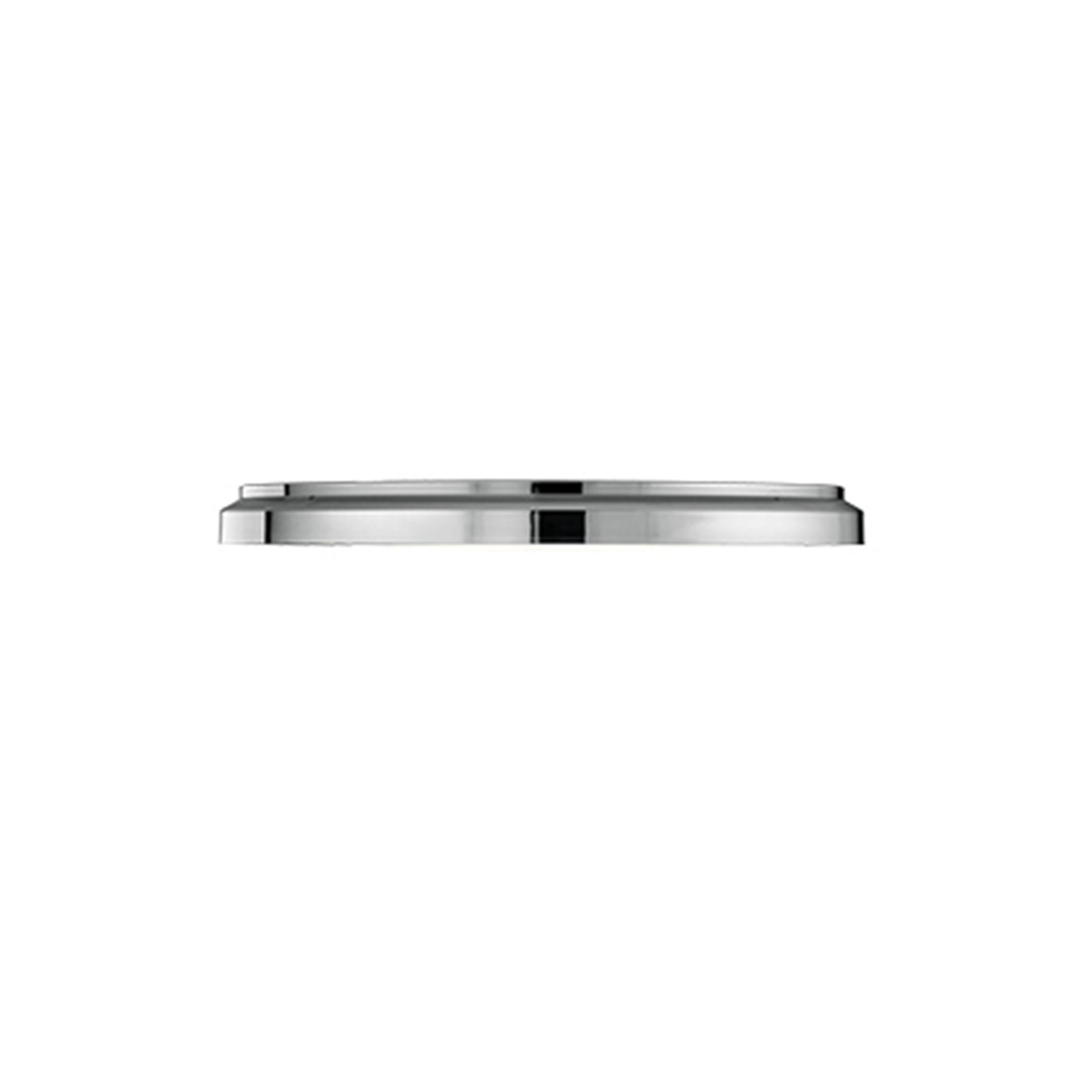

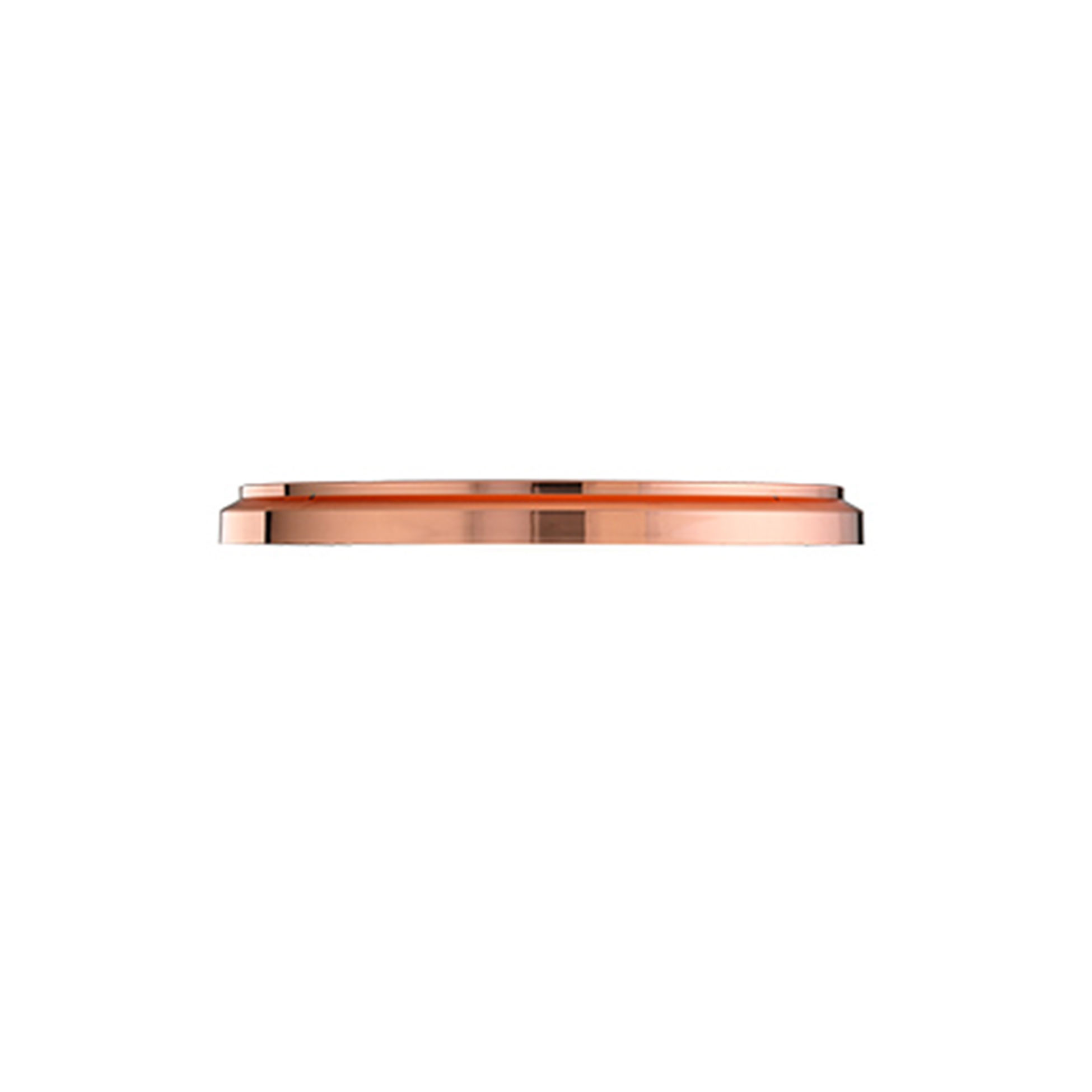

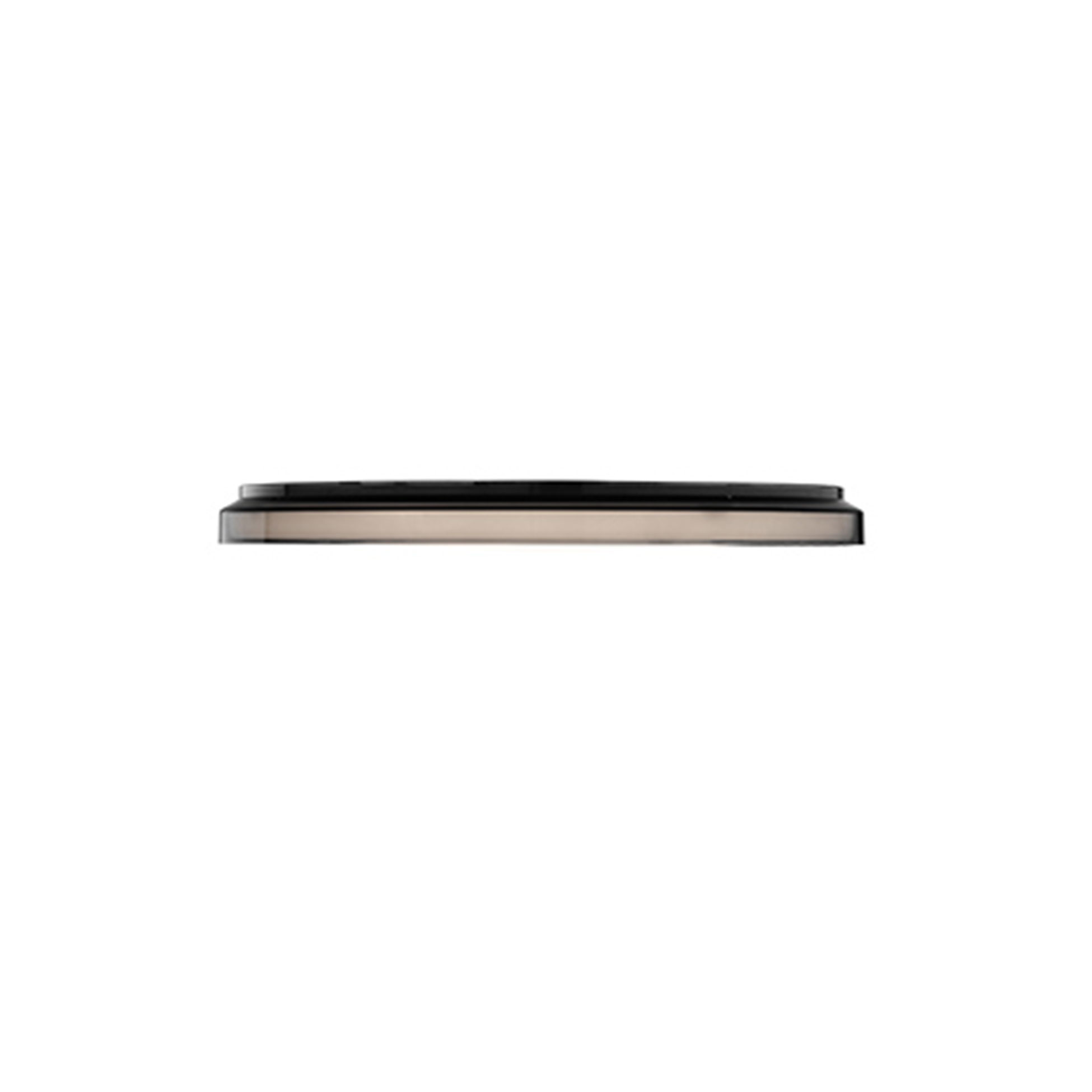

Optional(3)

Spare Parts

F1570009-clara-flos-boom
