Architectural ACCESSORIES
60.9222

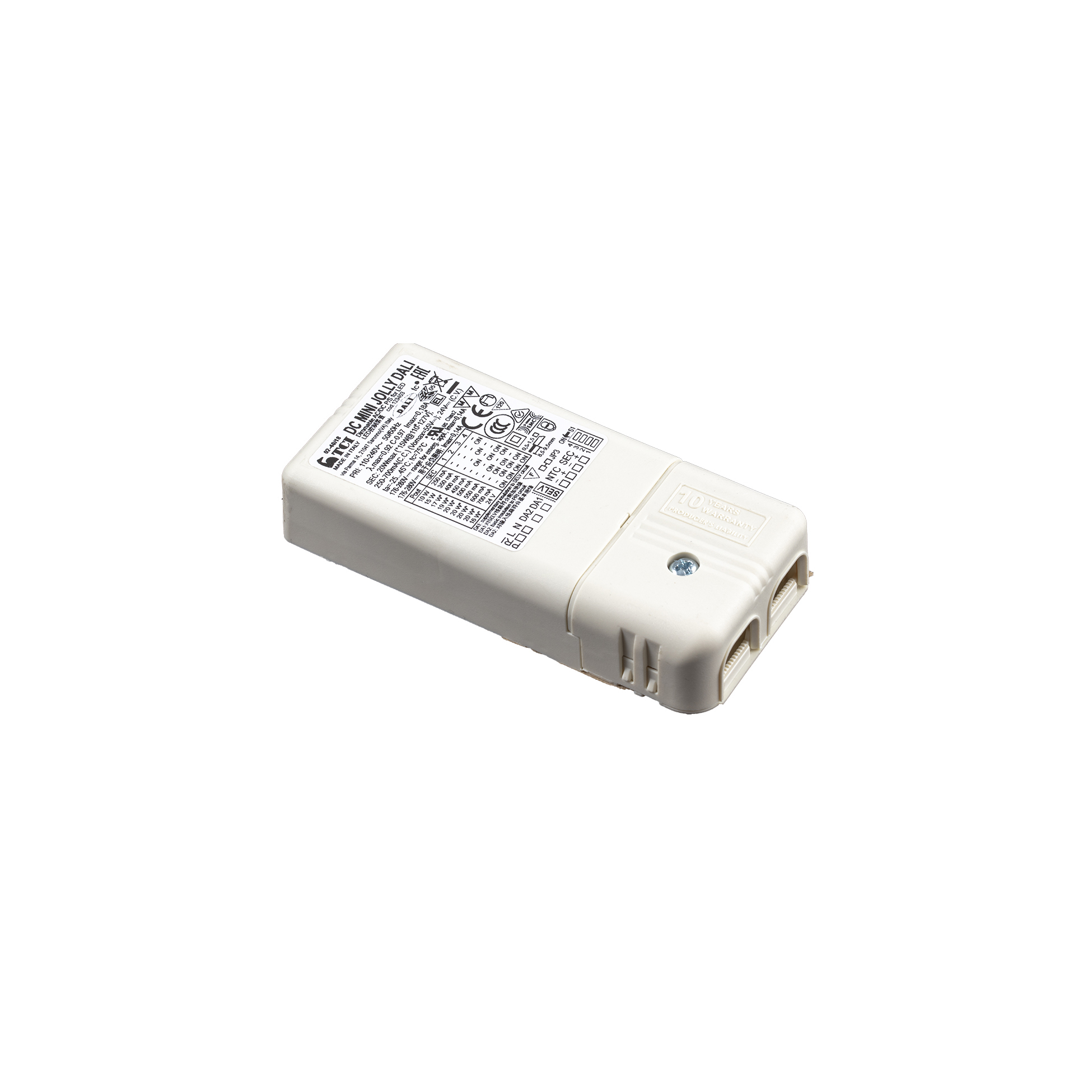

Continuous current power supply of 12-20W, 110/240V - 50/60Hz with power current selected through adjustable 250mA - 12W / 350mA - 17W / 400mA - 19W / 450 / 500/ 550 / 600 / 700mA - 20W regulable Dali 1 & Dali 2

110V = Max 15W.

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
Enviroment
Indoor dry location
Power (W)
20
Photometric
Extreme cut off
No
Electrical
Insulation class
II
Main voltage (Vac)
110-240
LED current (mA)
250 / 350 / 400 / 450 / 500 / 550 / 600 / 700
Dimmable
Yes
Dimming type
Dimmable DALI 2, Dimmable DALI 1
Dimming range (%)
1-100
Precabled
No
Emergency type
Yes
Batteries inside
No
Physical
Trim
No
Bezel diameter (mm)
55
Length (mm)
108
Net weight (kg)
0.11
IP
20
CE
UKCA
03 - Italy
Canada & USA
03 - Italy
Canada & USA
20
Notes

Default dimming AM+PWM: 1-25% PWM 2 kHz+25-100% AM. Full AM DIMMING: 1 - 100%. Active Power Factor Corrector. Input and output terminal blocks on the same side
(wire cross-section up to 1,5 mm2 / AWG15).

Ecodesign and Energy Labelling

PWRSUPRPL2 Replaceable control gear by a professional
