Architectural ACCESSORIES
60.7709

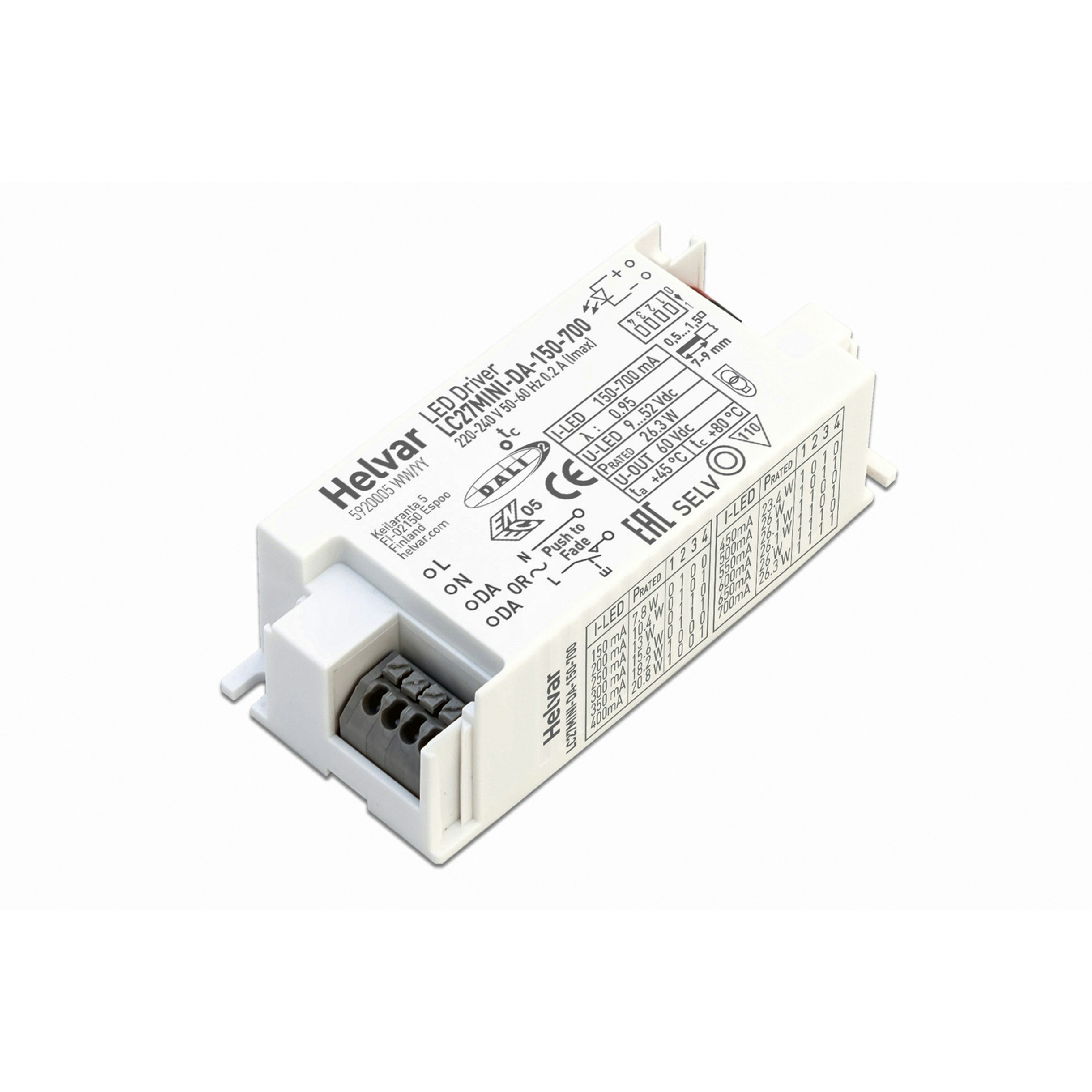

Continuous current supply source of 220-240V - 50/60Hz with selectable current via switch. Dimmable Dali 1, Dali 2, push dimming. 150mA - 7.8W / 200mA - 10.4W / 250mA - 13W / 300mA - 15.6W / 350mA - 18.2W / 400mA - 20.8W / 450mA - 23.4W / 500mA - 26W /...

Continuous current supply source of 220 - 240V - 50/60Hz with dimmable Dali 2 & push dimming, 150mA - 7.8W / 200mA - 10.4W / 250mA - 13W / 300mA - 15.6W / 350mA - 18.2W / 400mA - 20.8W / 450mA - 23.4W / 500mA - 26W / 550mA - 26.1W / 600mA - 26.1W / 650mA - 26W / 700mA - 26.3W

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
Power (W)
26.3
Photometric
Extreme cut off
No
Electrical
Frequency (Hz)
50/60
Main voltage (Vac)
230
Driver output voltage (V)
9–37.5
LED current (mA)
150 mA – 700 mA
Dimming type
Dimmable DALI 2, Mains Cut Dimming
Precabled
No
Physical
IP
20
EAC
CE
UKCA
03 - Italy
03 - Italy
20
20
