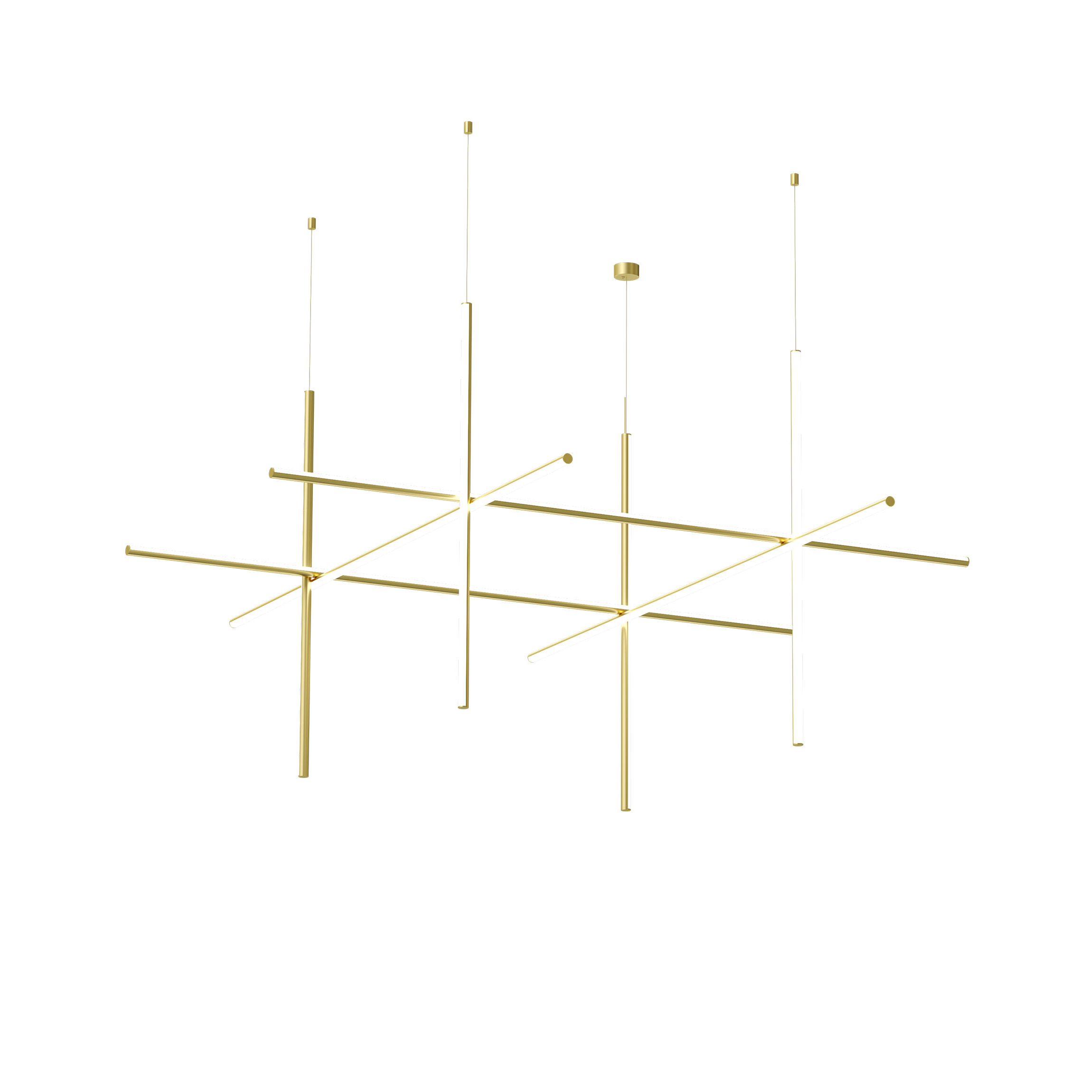

CoordinatesCoordinates Suspension 4 CLIII
Designed by Michael Anastassiades, 2020
Suspension lighting system emitting diffused light. Composed of horizontal and vertical luminaires arranged in a grid. Elements made of extruded anodised aluminium with a platinum optical silicone diffuser housing an integrated LED strip. Invisible electrical and mechanical connection with 2.4 m cables. Each configuration includes a ceiling rose with integrated electronics for push, 1–10 V or DALI dimming.
147W - 8830lm - 2700K - CRI> 95
Also available in:
Technical Drawing
Main specifications
EAN
8059607043967
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
147
Lumen Output (lm)
8830
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Main voltage (Vac)
48
Power supply
Power supply type
Batteries inside
No
Physical
Colour
Length (mm)
1770
Cord colour
productFields.physical.cordLength
2400
Canopy length/diameter (mm)
61
Canopy height (mm)
29
Net weight (kg)
6.5
Package volume (m3)
0.05
IP internal
