Dooku
FA53907406-300

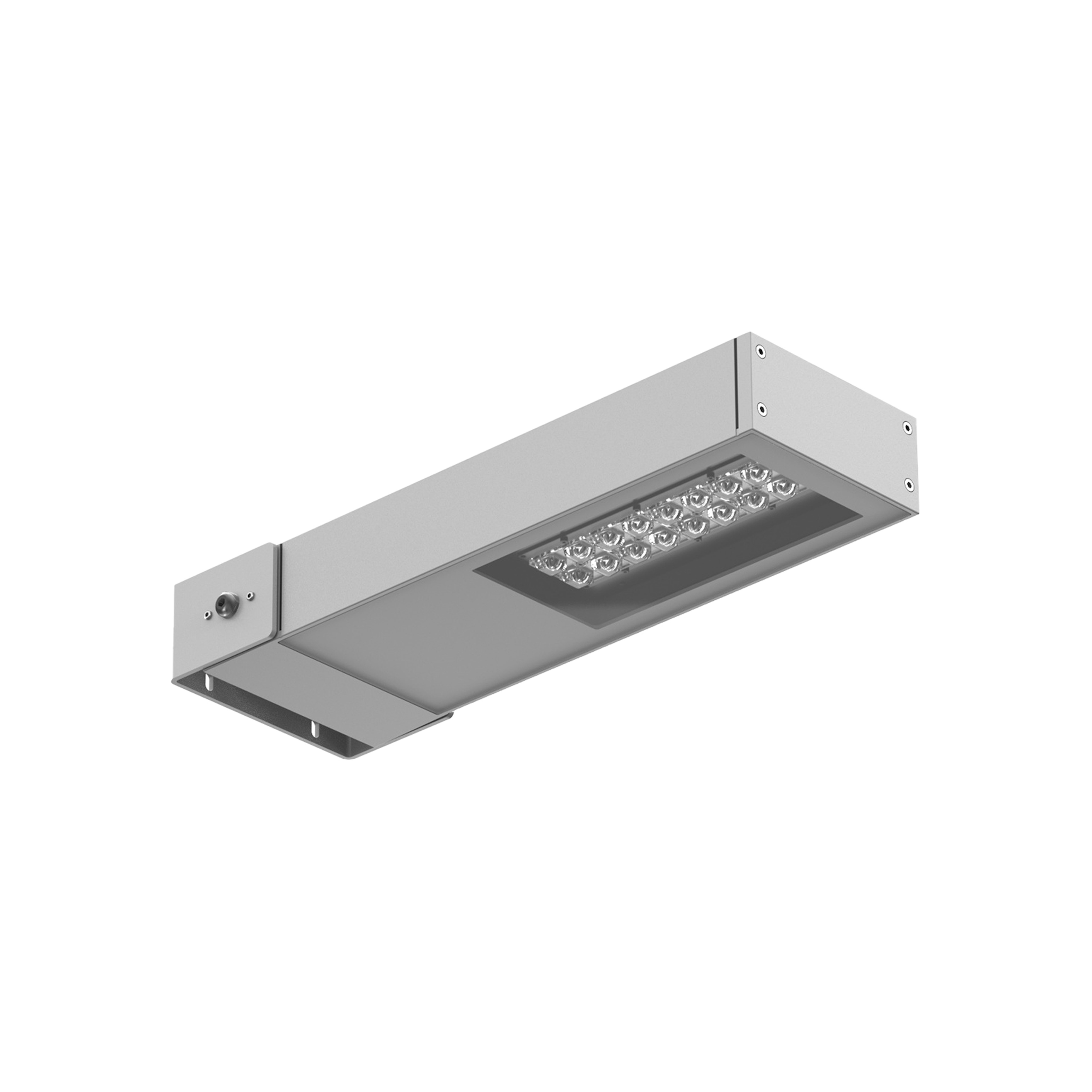

Dooku 400 Wall Symmetric Optic Dimmable Dali

LED source included. Integrated power supply 220-240V ON/OFF and dimmable 1-10V or DALI. Fixing bracket included. Equipped with a 400mm protruding neoprene cable section and IP68 connectors. Smart-City version available upon request.

34W - 3752lm - 4000K - CRI> 80 - Beam° 120

Technical Drawing
DR-DOOKU-400-WALL
Main specifications
EAN
8054793682358
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
34
System power (W)
39
Source flux (lm)
4563
Lumen Output (lm)
3752
Schematic light drawing
FA539074xx
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
120
Beam angle C90-270 (º)
120
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Dimmable
Power supply type
Dimming interface
Emergency
No
Physical
Colour
Orientation
Longitudinal tilting (°)
90
Net weight (kg)
5.1
Package height (mm)
140
Package width (mm)
535
Package length (mm)
200
Package volume (m3)
0.01
IP internal
Notes

Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
