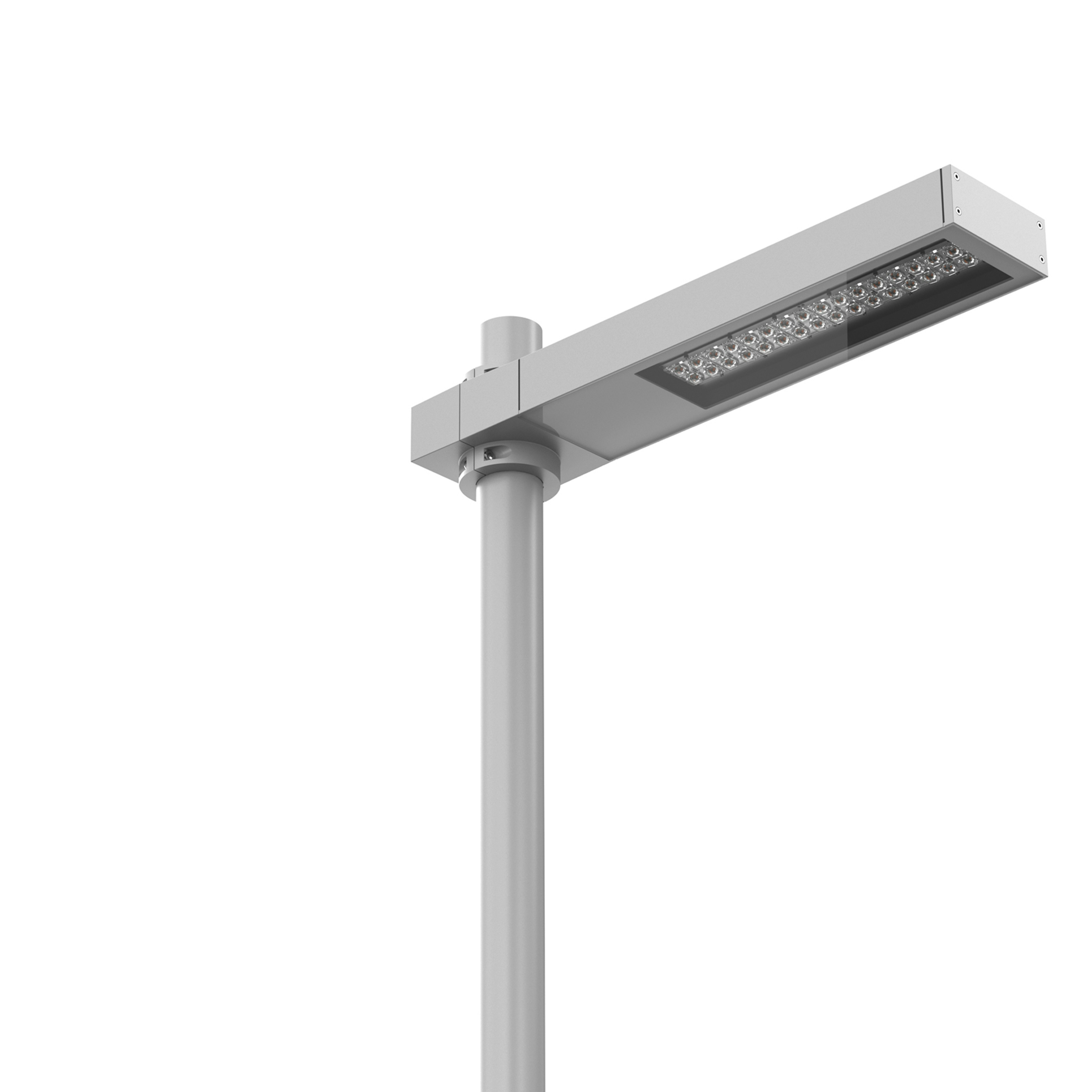

DookuDooku 600 Single Top Pole Ø76 mm Asymmetric Optic
Designed by FLOS Outdoor, 2014
LED source included. Integrated power supply 220-240V ON/OFF and dimmable 1-10V or DALI. Fixing bracket included. Equipped with a 400mm protruding neoprene cable section and IP68 connectors. Smart-City version available upon request.Single socket for 76mm diameter post. The post must be ordered separately. Smart-City version available upon request.
67W - 6868lm - 4000K - CRI> 80
Technical Drawing
Main specifications
EAN
8054793679211
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
67
System power (W)
78
Source flux (lm)
9126
Lumen Output (lm)
6868
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Dimmable
Power supply type
Dimming interface
Emergency
No
Physical
Colour
Orientation
Net weight (kg)
6.7
Package height (mm)
805
Package width (mm)
175
Package length (mm)
150
Package volume (m3)
0.02
IP internal
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
