Architectural Emi
05.4380.GY Deep Green

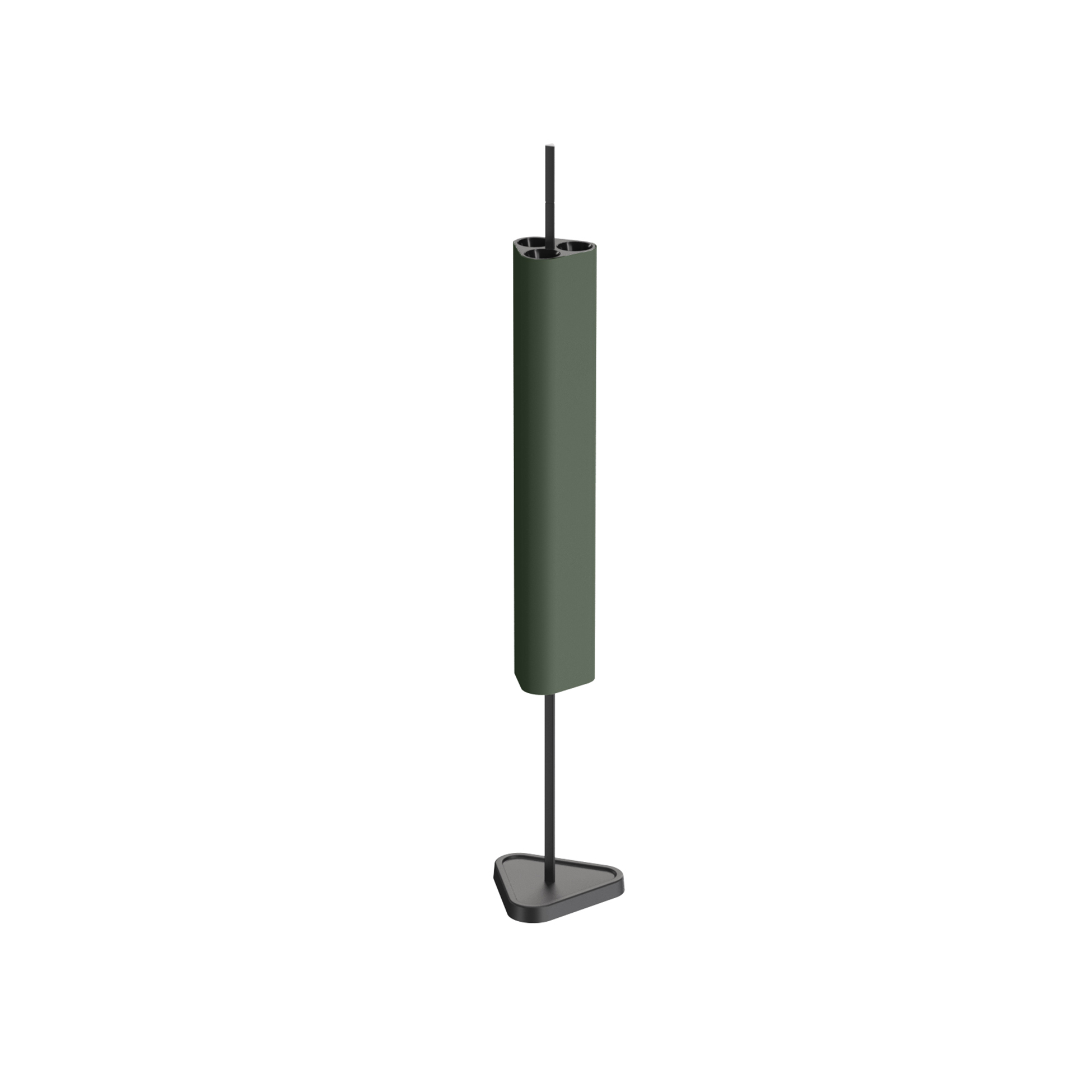

Emi Table

Anti-glare appliance for installation on tables and coffee tables. Built-in 220-240 V power supply, with cable and plug. Spare parts for the optical module (lens) are available, please see the accessories. Independent control of the Up&Down lighting through Touch Dimming capacitive sensors in the top part of the central rod.

LED - LED array - 37.5W - 2823lm - 2700K - CRI> 90 - Beam° 32

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8424229003192
Mounting
Table
Enviroment
Indoor dry location
Light source type
LED
LED type
LED array
Lamp category
LED
Number of heads
1
Power (W)
37.5
System power (W)
41
Source flux (lm)
4174
System flux (lm)
2823
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
3
Rf fidelity index
89
Rg gamut index
101
LED Life / Failure Ratio
L80B50>60.000h_Tc85ºC
Beam angle C0-180 (º)
32
Beam angle C90-270 (º)
32
Extreme cut off
Yes
UGRL
<19
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
110-240
LED current (mA)
760
Driver
Integrated
Dimmable
Yes
Dimming range (%)
1-100
Dimming interface
Dimmer Integrated
Physical
Colour
Deep Green
Orientation
Fixed
Cord colour
Black
Net weight (kg)
8.4
IP
20
CE
UKCA
USA
20
20
Notes

Gross Luminous Flux:
UpLigh - 3087 lm
DownLight - 1087 lm
Net Luminous Flux:
UpLigh - 2138 lm
DownLight - 685 lm

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL3 Replaceable control gear by an end-user

Accessories & Power Supply

optional (2)
