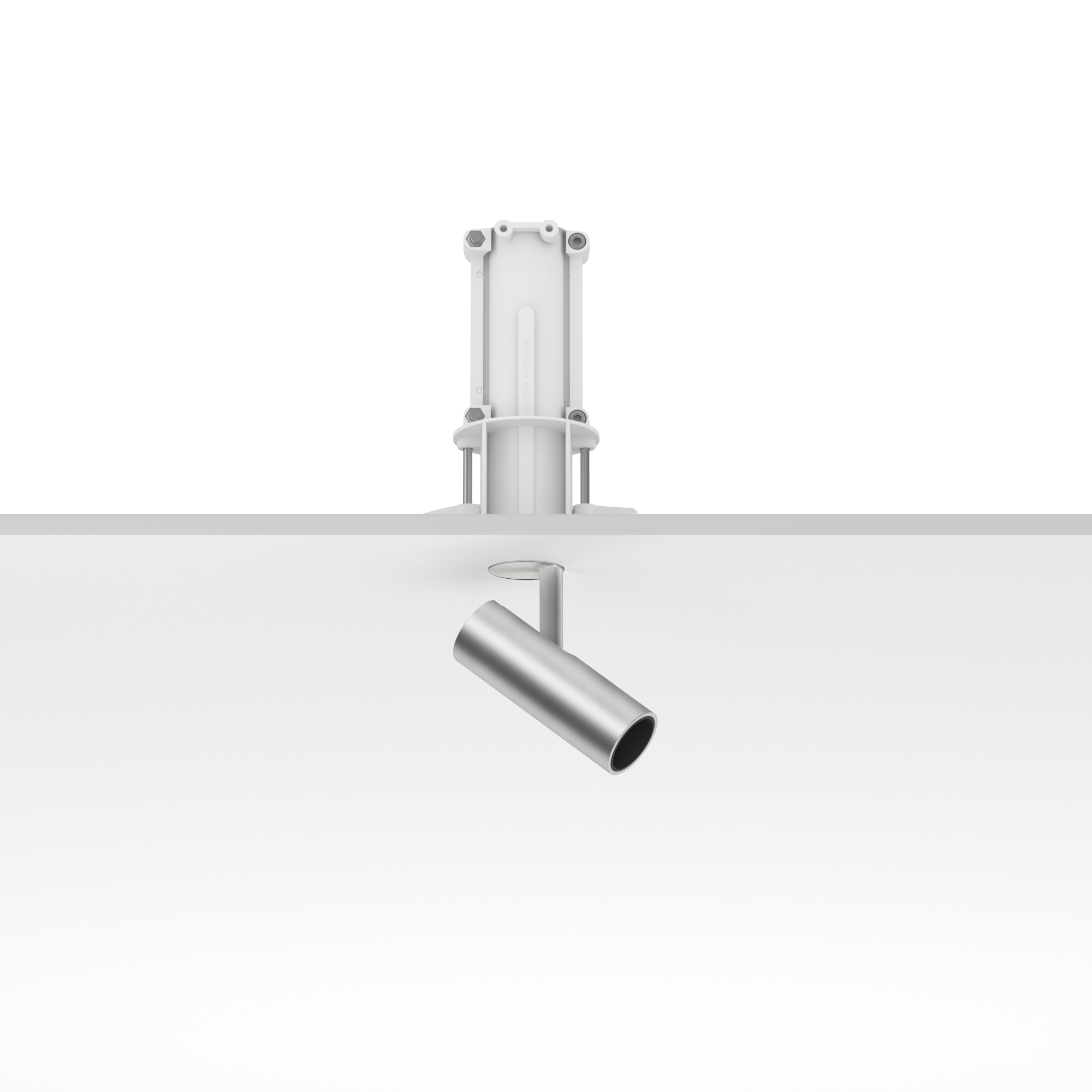

09.3781.05A Polished SilverFind Me 0 (Trim/No Trim)
Designed by Jorge Herrera
Recessed adjustable luminaire for indoor application. Remote power supply 250 mA not included.
LED - Power LED - 3W - 170lm - 2700K - CRI> 90 - Beam° 26
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Enviroment
Indoor dry location
Light source type
LED
LED type
Power LED
Lamp category
LED
Number of heads
1
Power (W)
3
Source flux (lm)
300
System flux (lm)
170
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
Rf fidelity index
91
Rg gamut index
98
LED Life / Failure Ratio
L80B20 >36000h (Tc=85ºC)
Beam angle C0-180 (º)
26
Beam angle C90-270 (º)
26
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
12
LED current (mA)
250

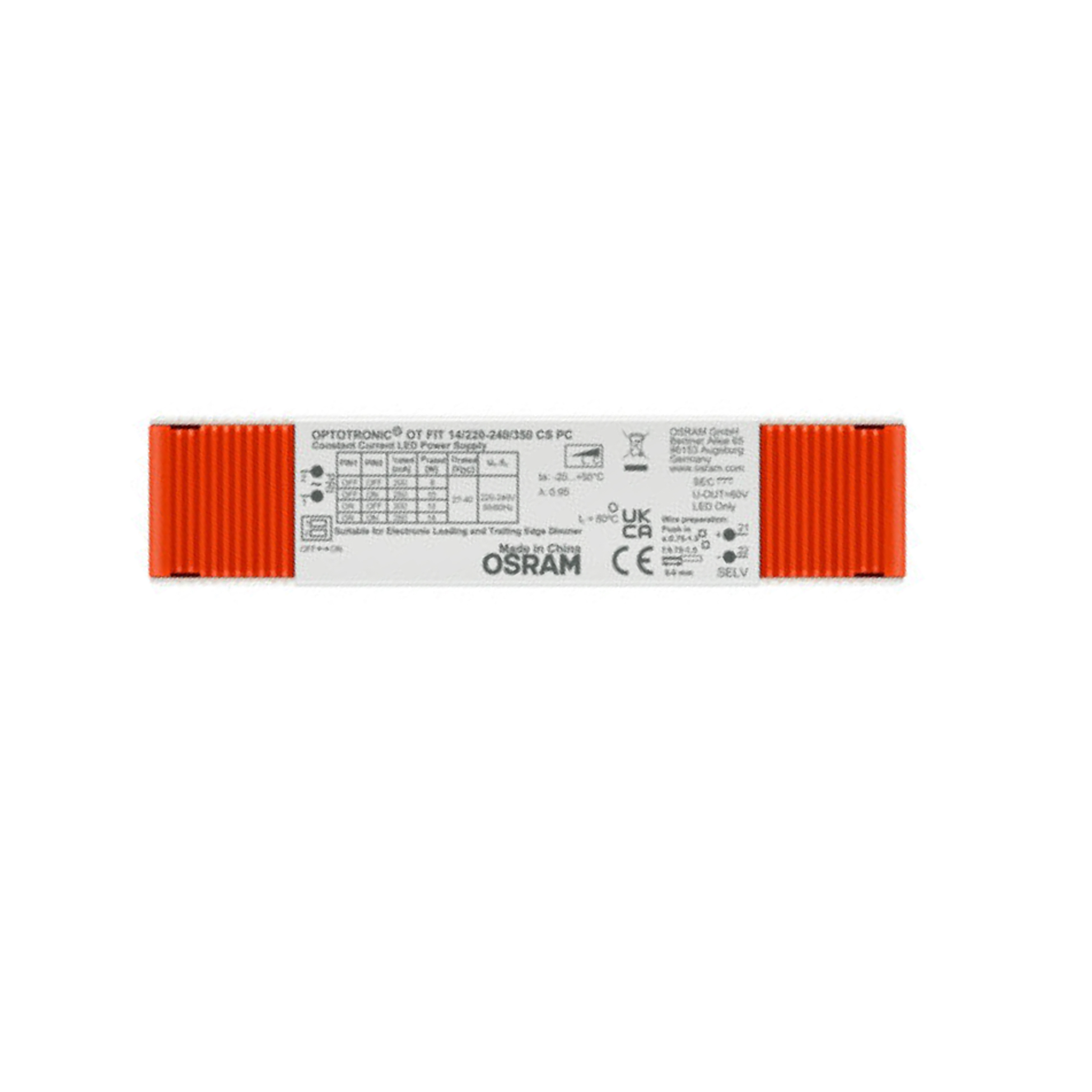

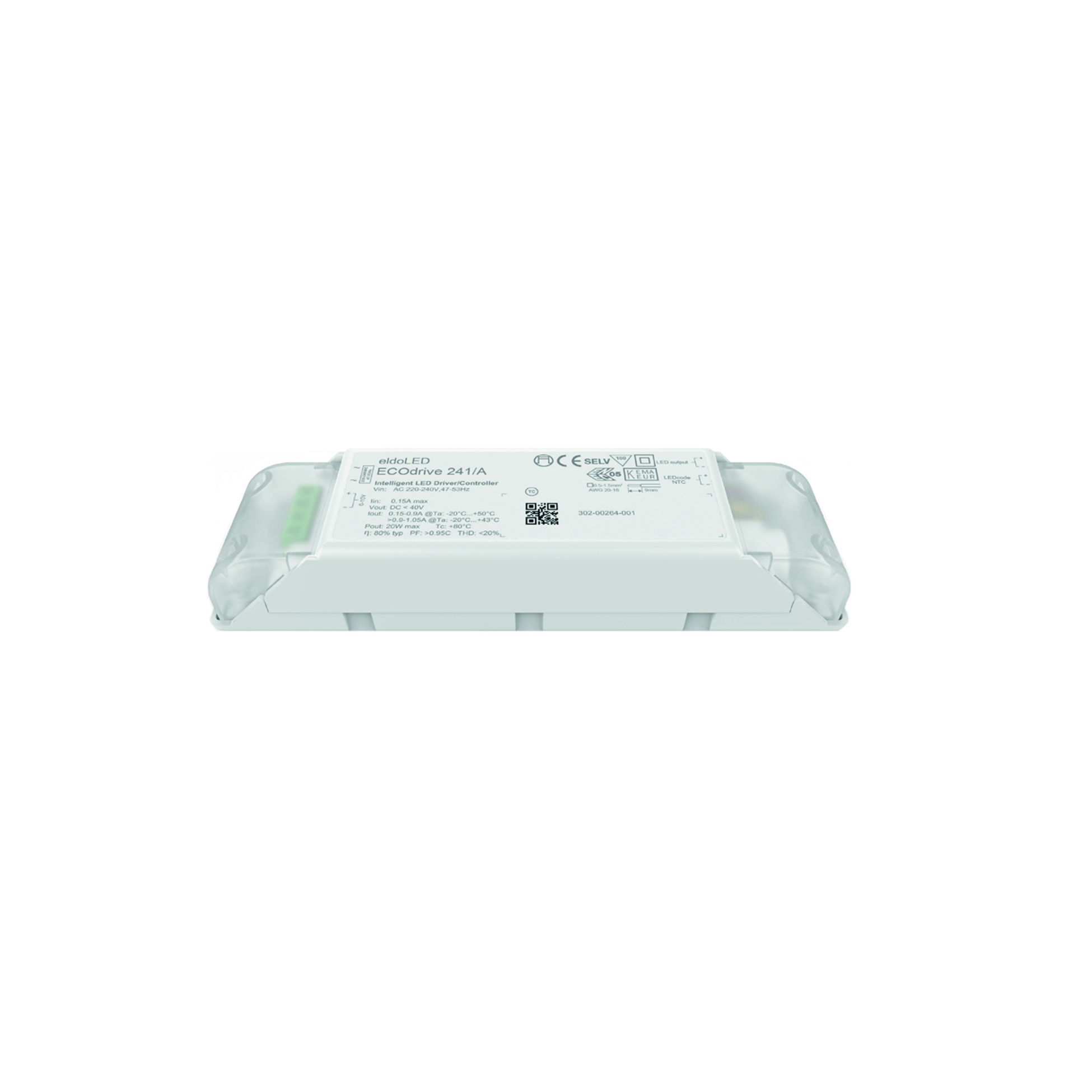

Driver
Remote excluded
Dimmable
Yes
Dimming type

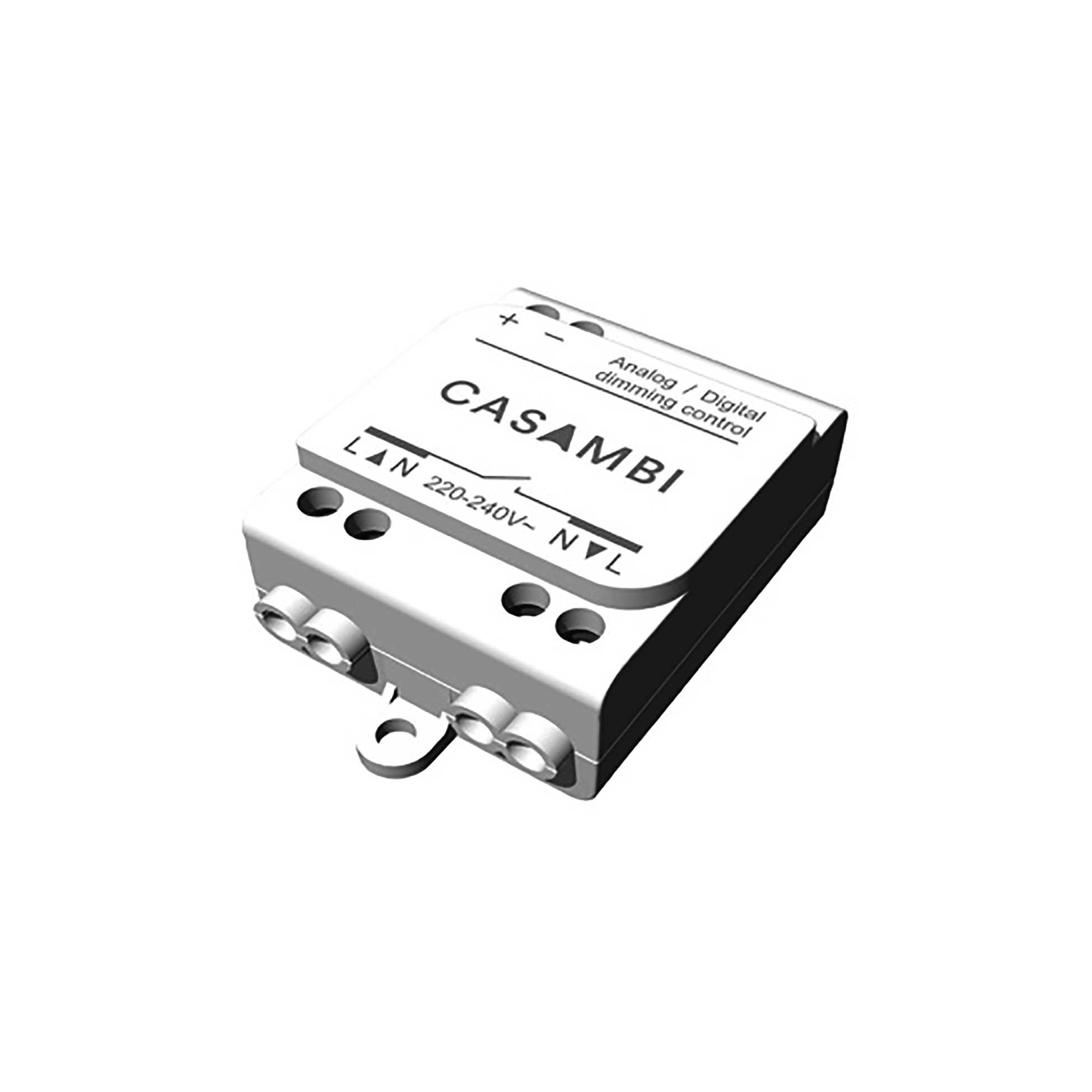

Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2
Physical
Colour
Polished Silver
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Recessed depth (mm)
135
Spot diameter (mm)
24
Net weight (kg)
0.14
IP
20
Notes
Accessories included (honeycomb and screening crosspiece). Remote power supply to be installed in an accessible place. It is not recommended to use dimmable drivers of several brands due to the specific dimming curves of each brand. To use only one driver for various spots, connect the spots in series.
Photometric Files
Ecodesign and Energy Labelling
Replaceable (LED only) light source by a professional
