Architectural Find Me
09.3710.14C Black

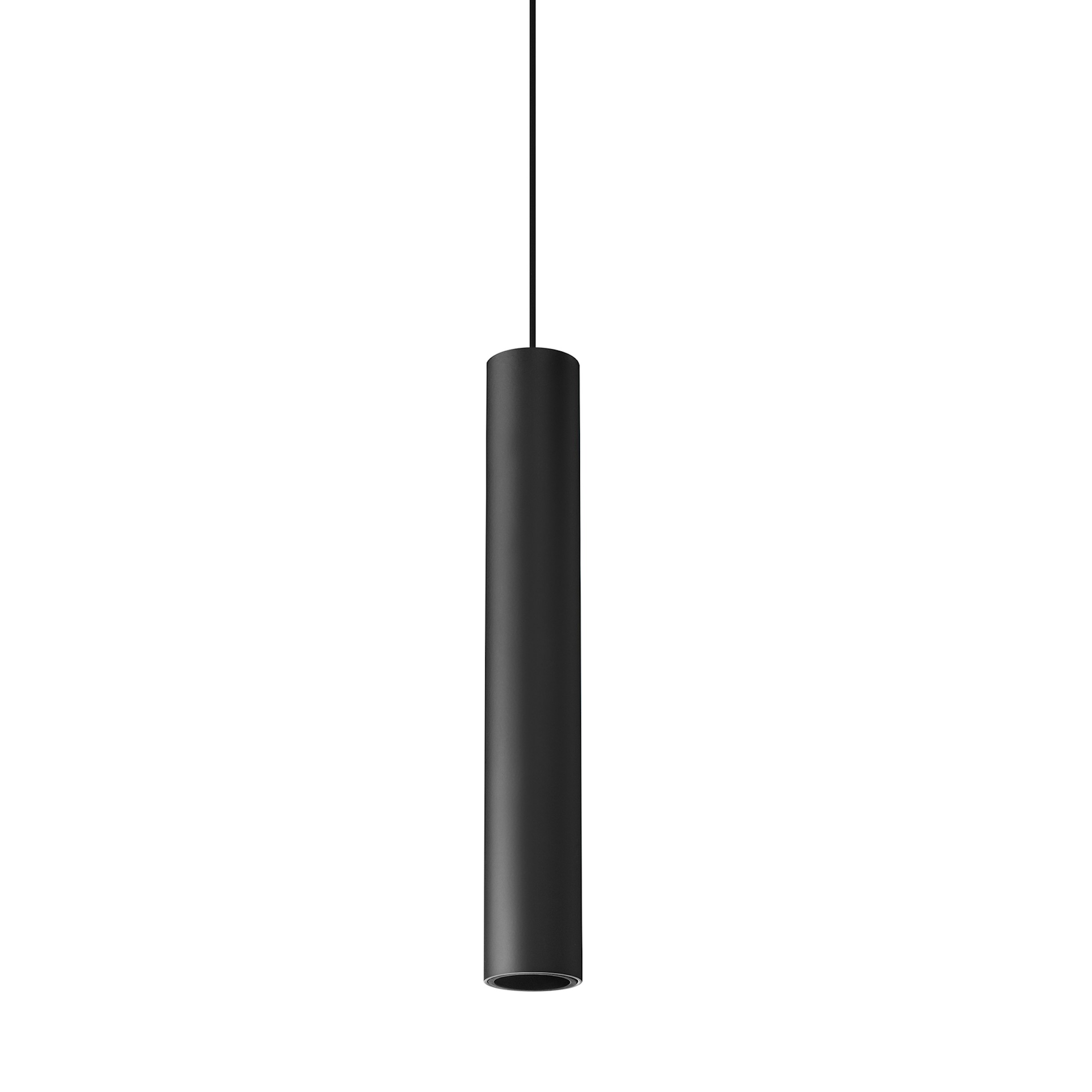

Find Me 1 Suspension

Suspended ceiling-mounted luminaire. The product includes interchangeable shield cylinder in different colours (orange, violet and black). Remote power supply 500 mA not included.

LED - Power LED - 6W - 365lm - 3000K - CRI> 90 - Beam° 14

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
Mounting
Suspension
Enviroment
Indoor dry location
Light source type
LED
LED type
Power LED
Lamp category
LED
Number of heads
1
Power (W)
6
System flux (lm)
365
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
Beam angle C0-180 (º)
14
Beam angle C90-270 (º)
14
UGRL
<10
Electrical
Insulation class
III
Frequency (Hz)
0
Forward voltage (V)
12
LED current (mA)
500
Driver
Remote excluded
Dimmable
Yes
Dimming type
Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Mains Cut Dimming
Physical
Colour
Black
Trim
No
Orientation
Adjustable
Net weight (kg)
0.23
IP
20
EAC
CE
RETILAP
UKCA
03 - Italy
03 - Italy
USA
Gwt 850 (º)
20
20

Ecodesign and Energy Labelling

REPLACEABLE2 Replaceable (LED only) light source by a professional

Accessories & Power Supply

required (13)
All
Power supply
Accessory
Thumbnail
x1

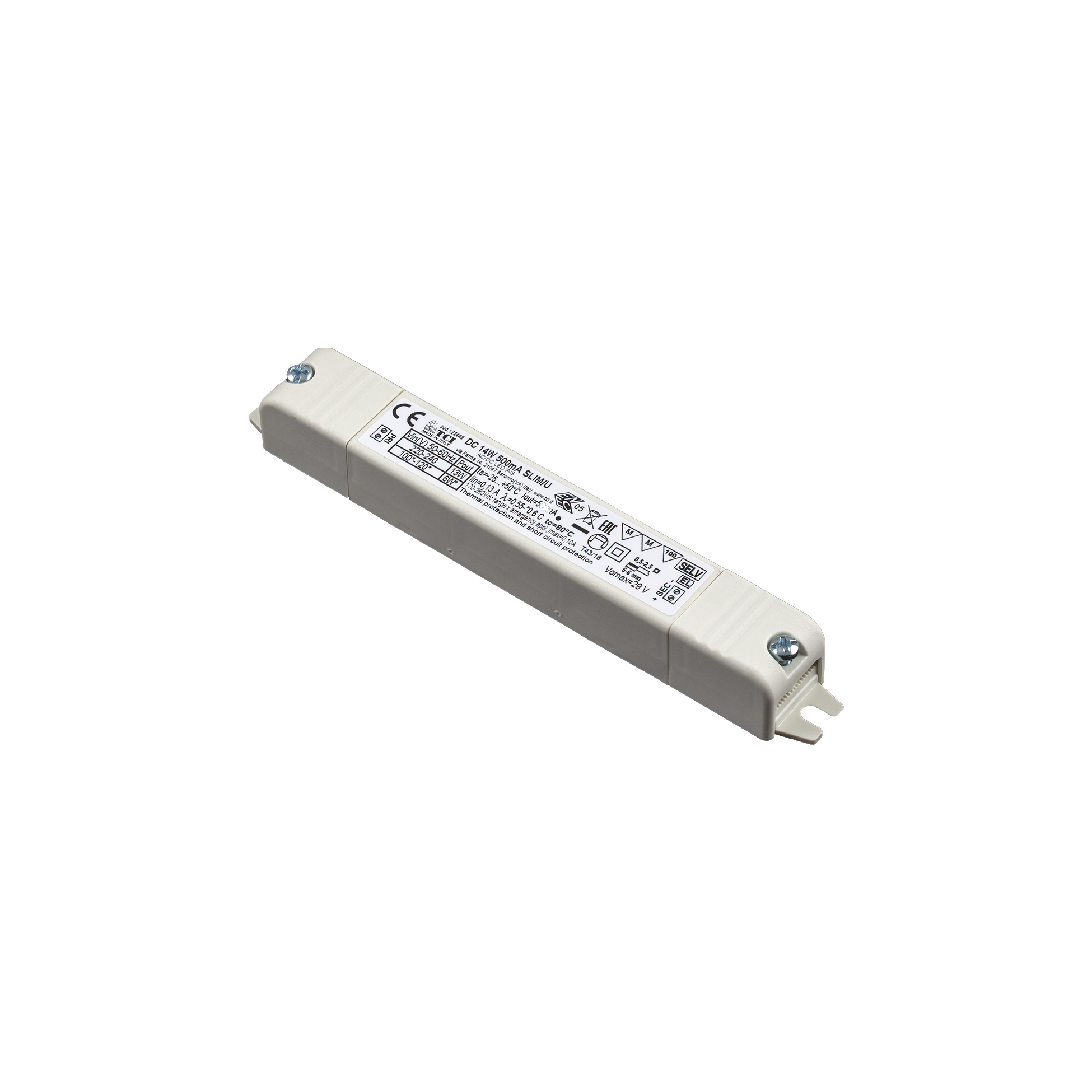

Electrical Continuous current power supply of 6W, 100V / 14W, 240V - 50/60Hz with 500 mA supply voltage 60.8880
Thumbnail
x1
Electrical Continuous current power supply of 13-20W, 110*/240V - 50/60Hz with current selected through adjustable 200 mA - 13W / 300 mA - 15W / 350 mA - 18W / 400 / 450 / 500 / 550 / 600 / 650 / 700 / 750 / 800 / 850 / 900 mA - 20W. switch. 0/1-10V or push. 60.9188
Thumbnail
x1
Electrical Non dimmable continuous current power supply of 220/240V - 50/60Hz with power current selected through adjustable with switch 200 mA - 8,5W / 250mA - 11W / 300 mA - 13W / 350 mA - 15W / 400 mA - 17,5W / 450 mA - 19,5W / 500 mA - 22W 60.9160
Thumbnail
x1
Electrical Continuous current power supply of 12-20W, 110/240V - 50/60Hz with power current selected through adjustable 250mA - 12W / 350mA - 17W / 400mA - 19W / 450 / 500/ 550 / 600 / 700mA - 20W regulable Dali 1 & Dali 2 60.9222
x1

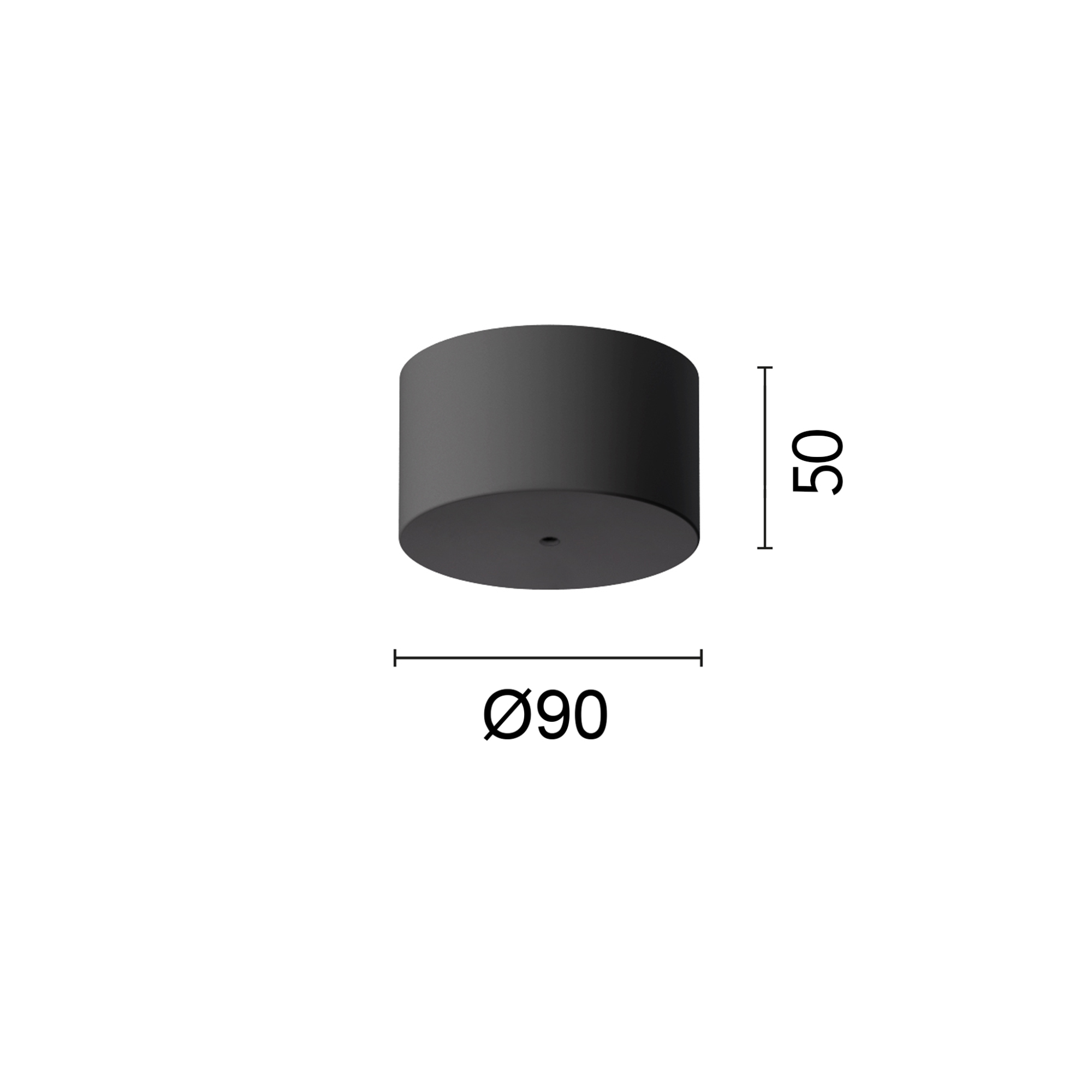

Surface Power Supply Rose 08.8783.30A
x1

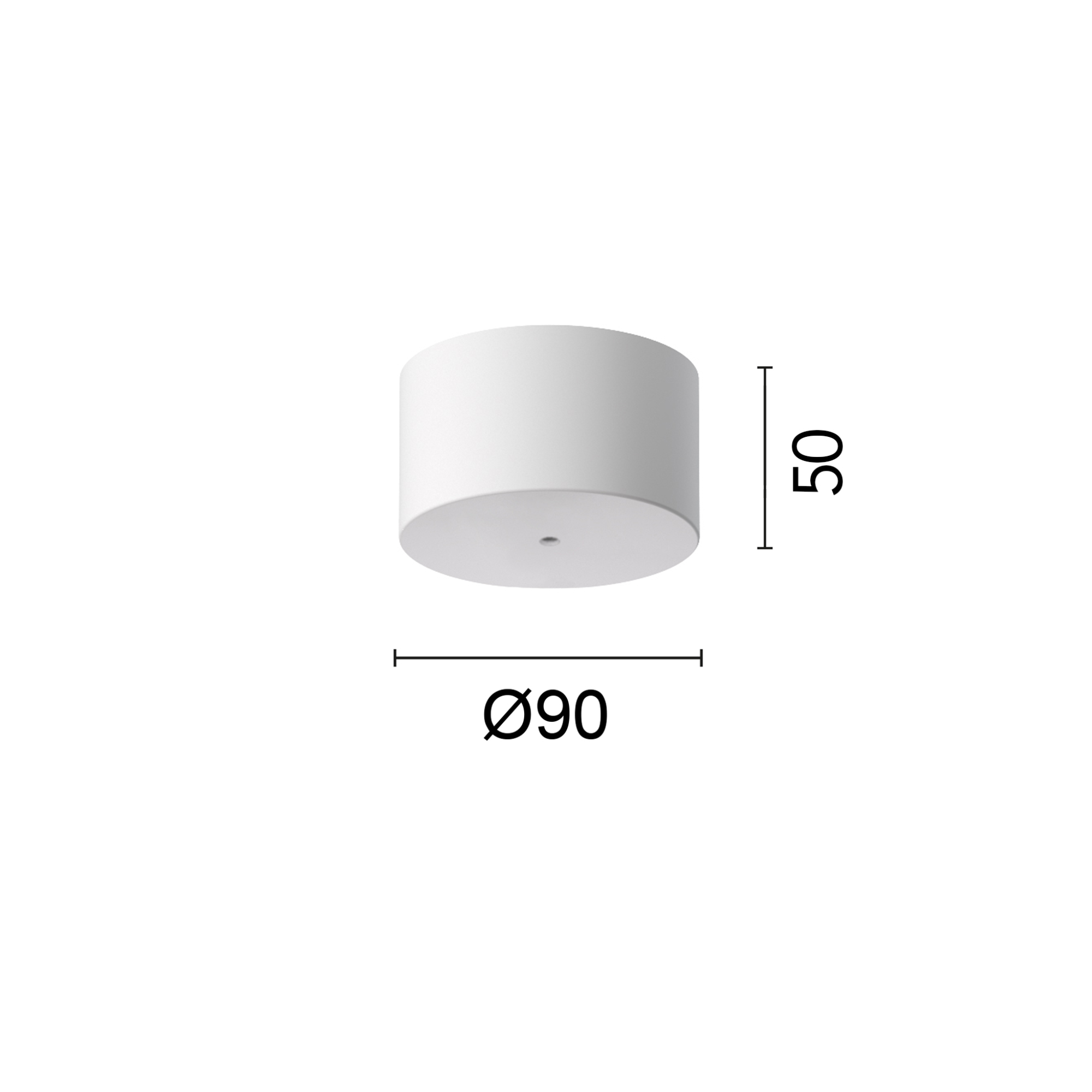

Surface Power Supply Rose 08.8783.14A
x1
Surface Power Supply Rose Dali 08.8783.30ADA
x1
Surface Power Supply Rose Dali 08.8783.14ADA
Thumbnail
x1

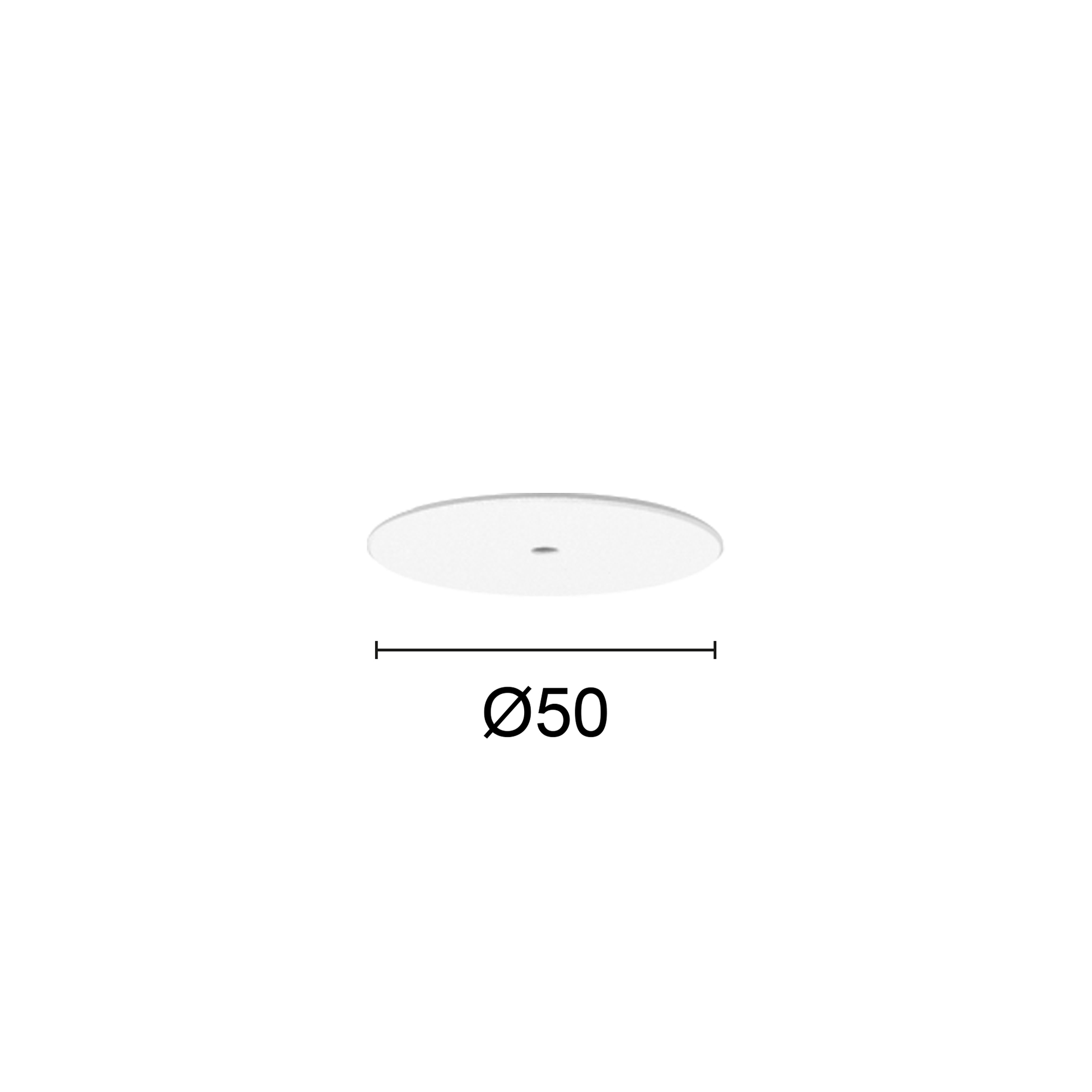

Recessed power supply rose 08.8782.30
Thumbnail
x1
Electrical Casambi continuous current power supply, dimmable 220/240V - 50/60Hz, 300mA - 16W / 350mA - 18,5W / 400mA - 21,5W / 450 mA - 24W / 500mA - 27W / 600mA - 32W / 650 mA - 35W / 700 mA - 36W /750 /800 /900 /1000 /1050 /1200 mA - 38W. 60.9207
Thumbnail
x1
Electrical Mains dimming 20W Constant current power supply, AC phase-cut adjustable, trailing & leading edge dimming, 220/240V - 50/60Hz, with dip-switch programmable power supply current. Output current: 900mA - 20W / 850mA - 20W / 800mA - 20W / 750mA - 20W / 70... 60.9467
