09.3708.14C BlackFind Me 2 (Trim/No Trim)
Designed by Jorge Herrera, 2015
Recessed adjustable luminaire for indoor application. Remote power supply not included.
LED - Power LED - 10W - 731lm - 3000K - CRI> 90 - Beam° 18
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Enviroment
Indoor dry location
Light source type
LED
LED type
Power LED
Lamp category
LED
Number of heads
1
Power (W)
10
Source flux (lm)
960
System flux (lm)
731
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
Rf fidelity index
91
Rg gamut index
98
LED Life / Failure Ratio
L80B20 >36000h (Tc=85ºC)
Beam angle C0-180 (º)
18
Beam angle C90-270 (º)
18
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
12
LED current (mA)
850

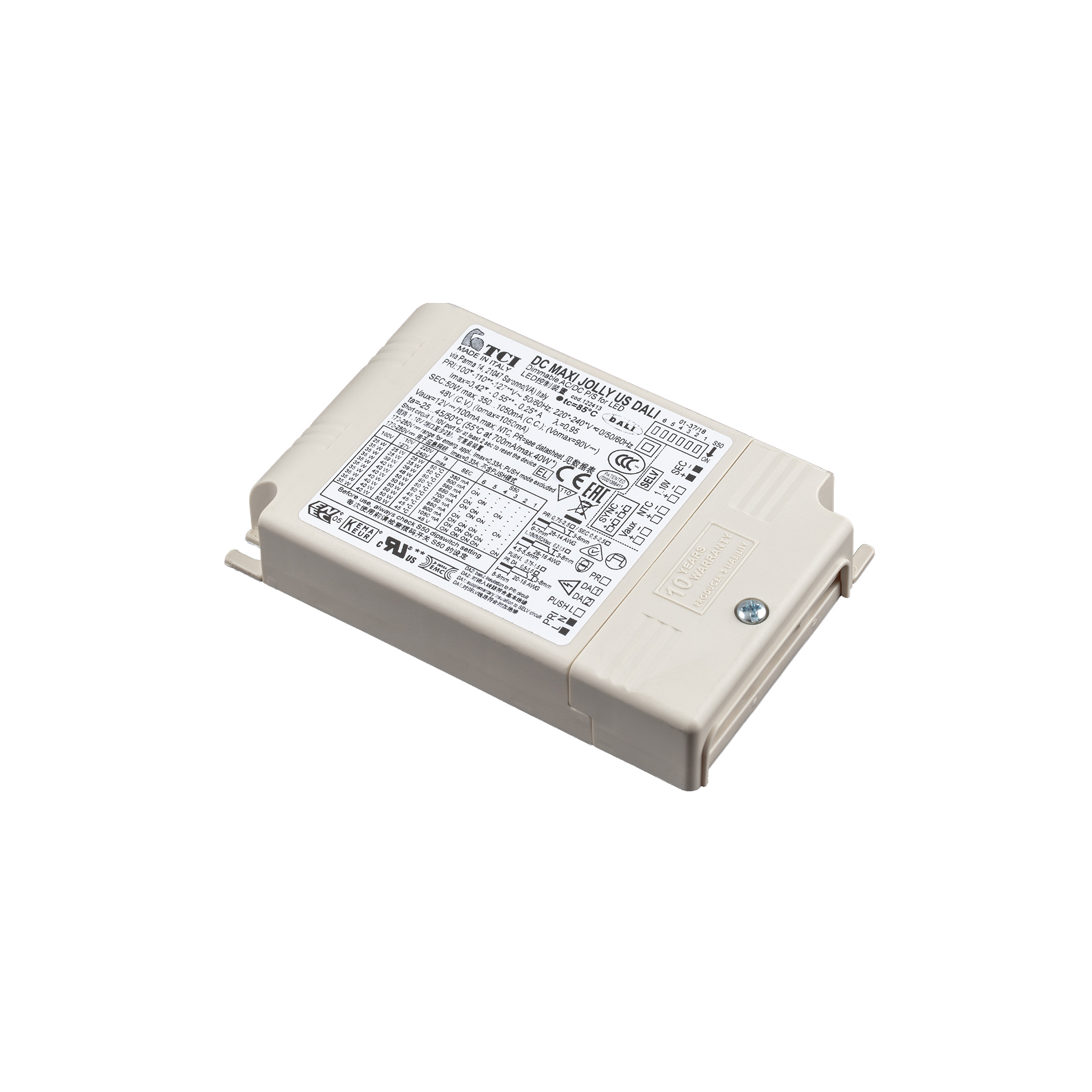

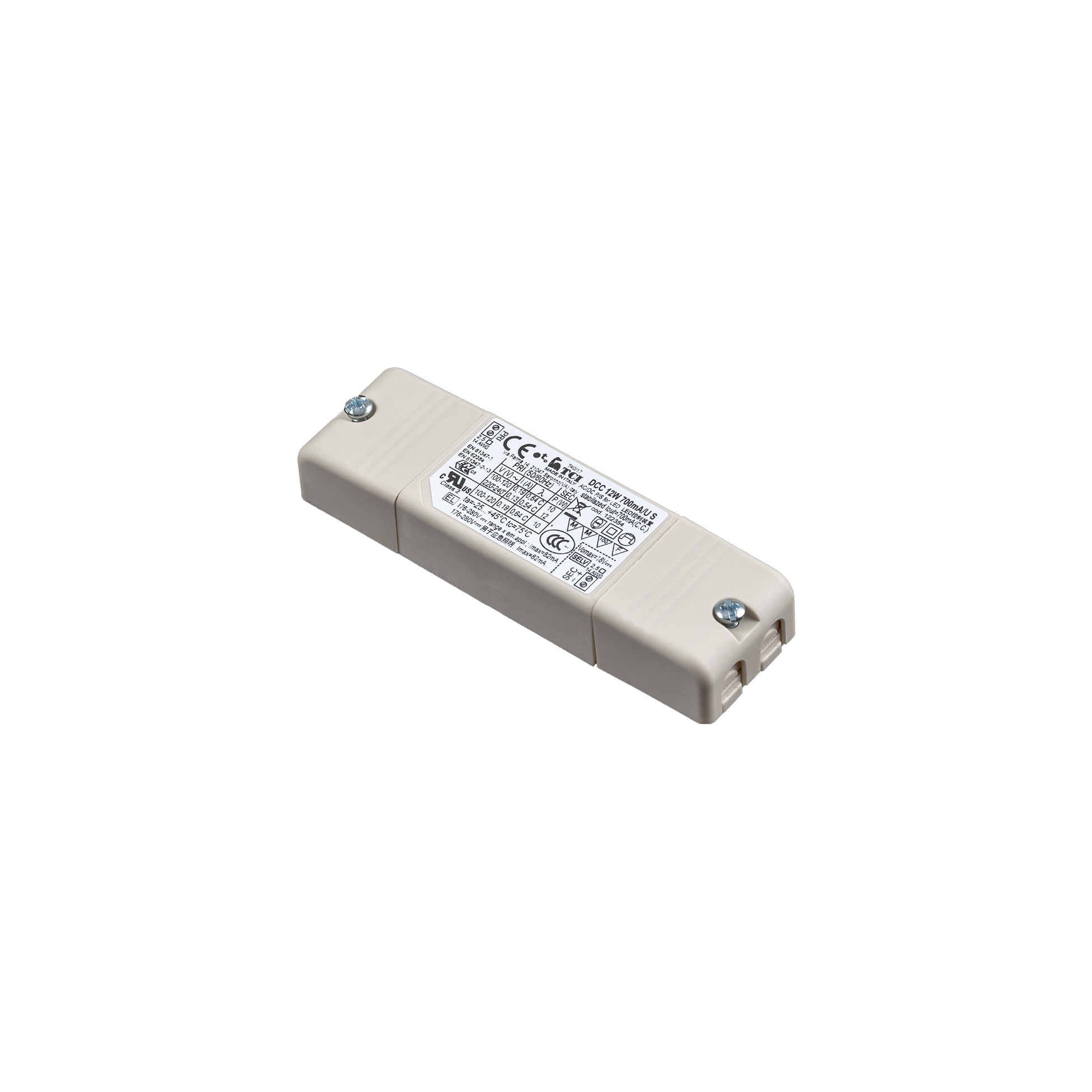

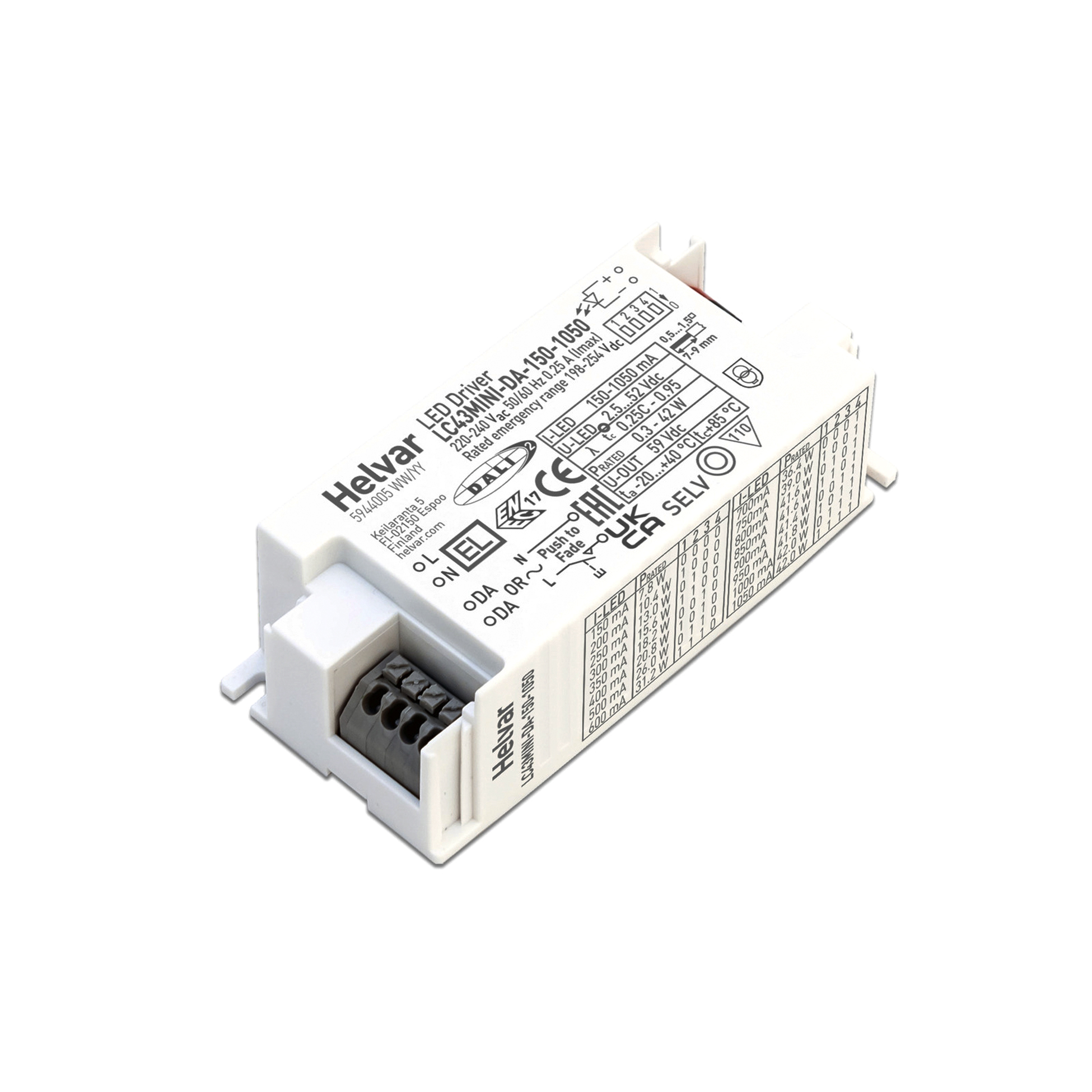

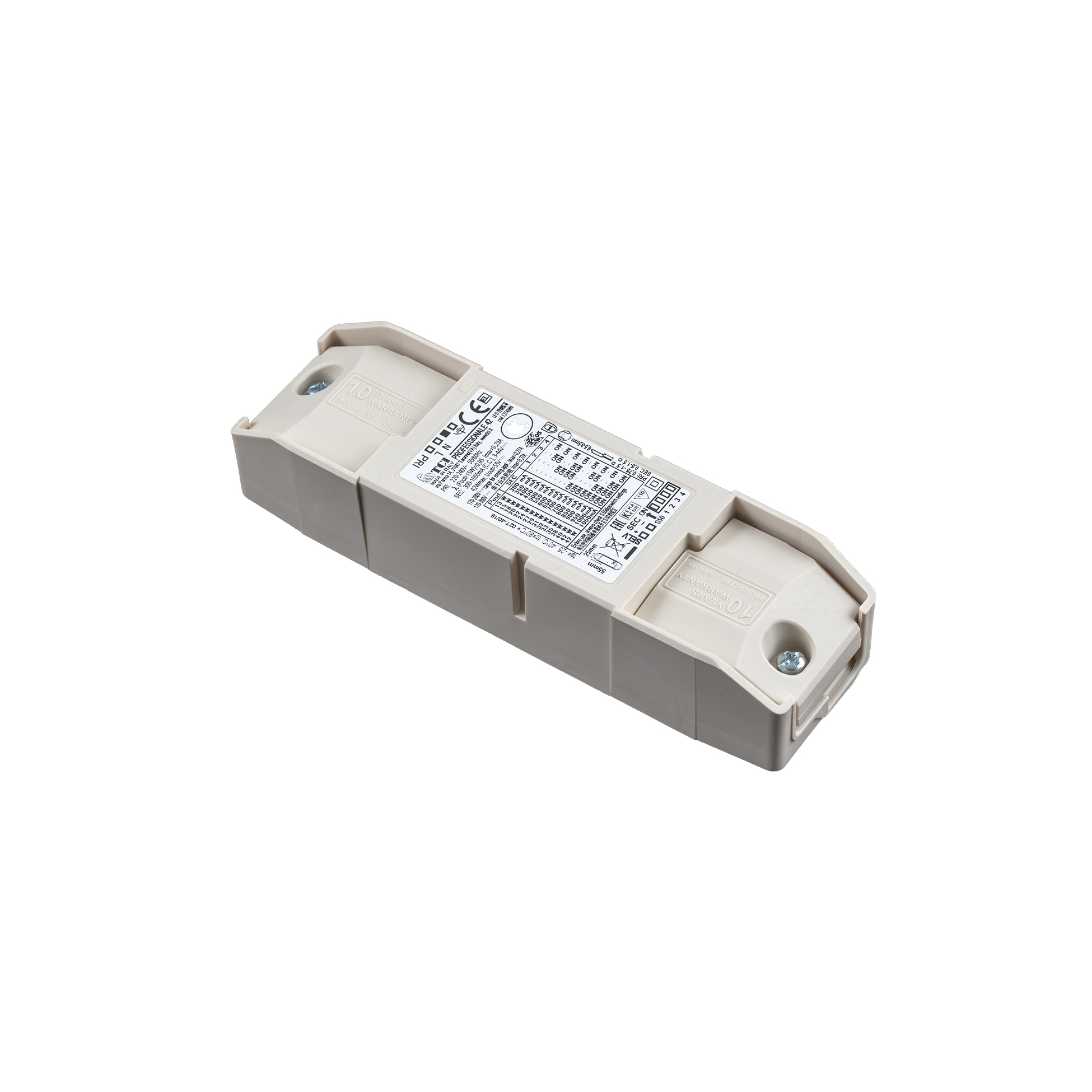

Driver
Remote excluded
Dimmable
Yes
Dimming type
Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Mains Cut Dimming
Physical
Colour
Black
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Recessed depth (mm)
210
Net weight (kg)
0.59
IP
20
Notes
Accessories included (honeycomb and screening crosspiece). Remote power supply to be installed in an accessible place. Ceiling thickness between 8 and 30mm.
Photometric Files
Ecodesign and Energy Labelling
Replaceable (LED only) light source by a professional
