FA162812430.A Black

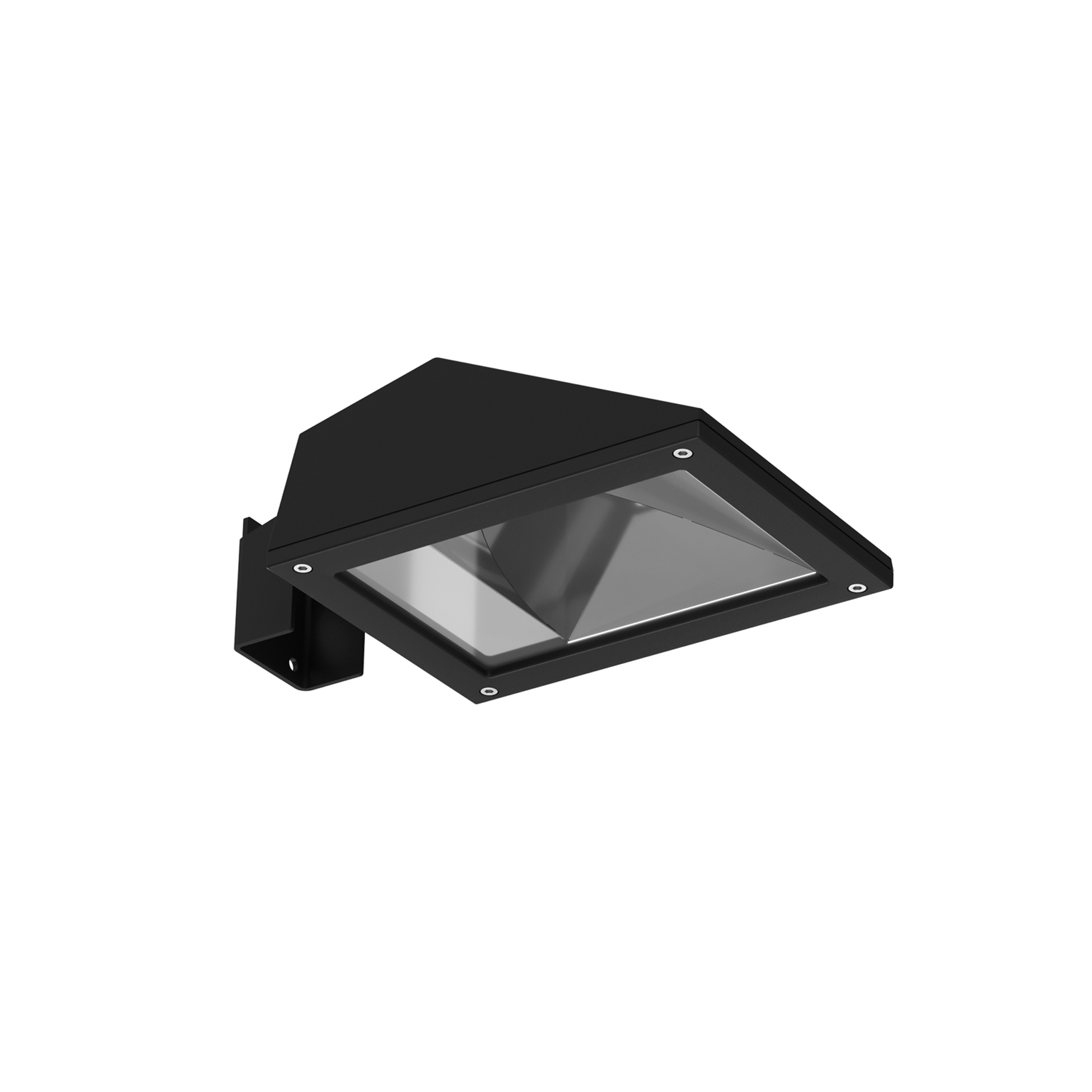

Franco 1 CoB Led Asymmetric Optic

Designed by FLOS Outdoor, 2007

LED source included. Integrated electrical power supply 220-240V ON/OFF. Fixing bracket included. Equipped with a M16x1.5 cable guide (for 4.5mm<ø<10mm cables) and IP68 connector. To ensure the tightness of the cable guide it's recommended to use flexible electric cables suitable for exterior use. Optional accessories: posts; mounts and arms to install as a mast; protruding arm for wall mounting.

22W - 1506lm - 2700K - CRI> 80

Are you a professional and your project needs consulting and support?

An exclusive one-on-one service for our professional clients providing specialist support and advice.

BOOK AN APPOINTMENT

Technical Drawing

Main specifications

EAN

8054793620756

Mounting

Ground

Enviroment

Outdoor wet location

Light source type

LED

LED type

LED array

Number of heads

1

Power (W)

22

System power (W)

24

Source flux (lm)

2856

System flux (lm)

1506

Schematic light drawing

Photometric

Light distribution

Asymmetric

CCT (K)

2700

CRI>

80

Extreme cut off

No

Electrical

Insulation class

I

Frequency (Hz)

50/60

Main voltage (Vac)

220-240

Driver

Integrated

Dimmable

No

Dimming interface

Not Dimmable

Emergency type

No

Physical

Colour

Black

Orientation

Adjustable

Longitudinal tilting (°)

103

Net weight (kg)

2.2

Package height (cm)

130

Package width (cm)

190

Package length (cm)

315

Package volume (m3)

0.01

IP

65

EAC

UKCA

USA

IK07 - 2.00 Joule

IK07 - 2.00 Joule

Notes

Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance

Download

Mounting instructions

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class D

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional
