F2500000 ChromeFrisbi
Designed by Achille Castiglioni, 1978

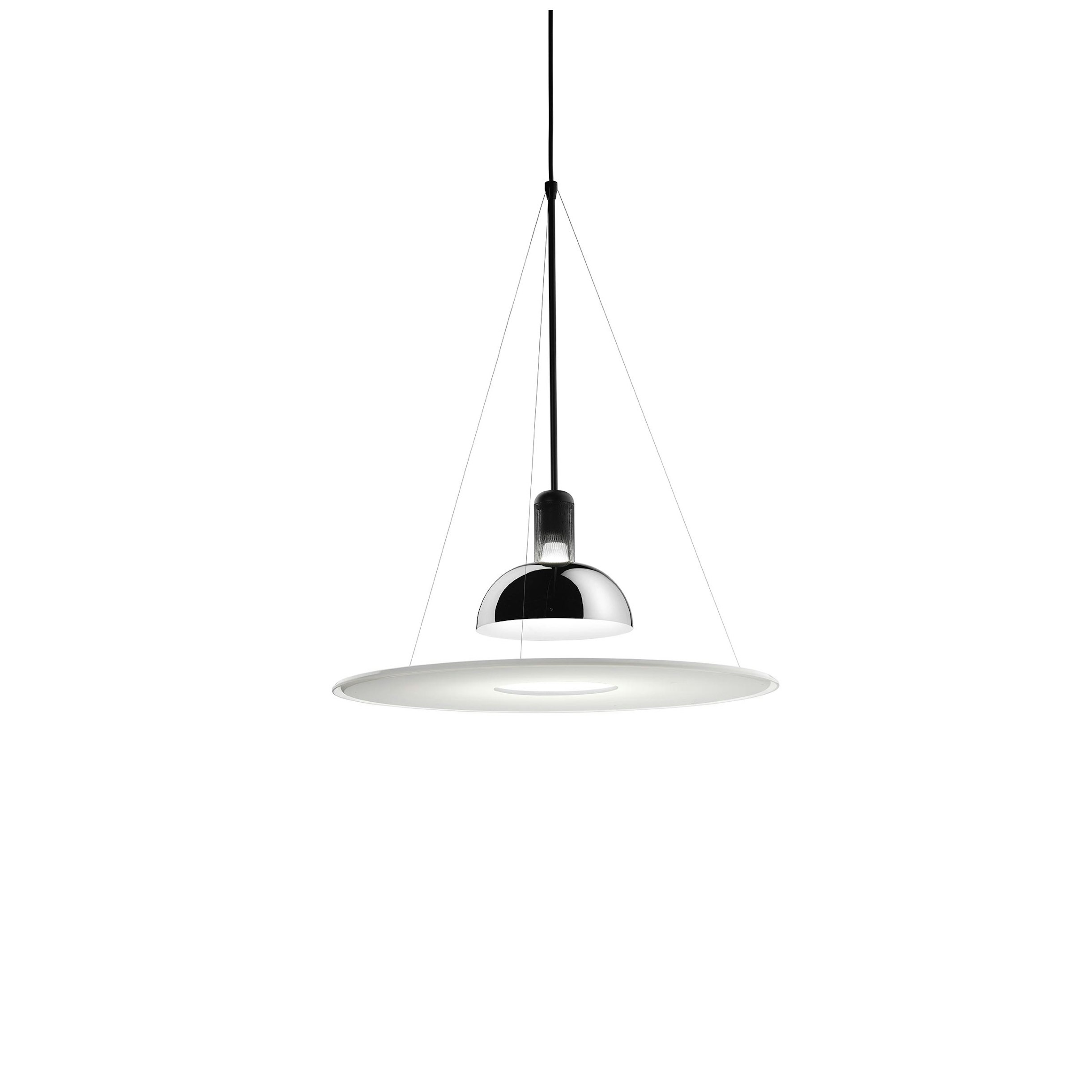

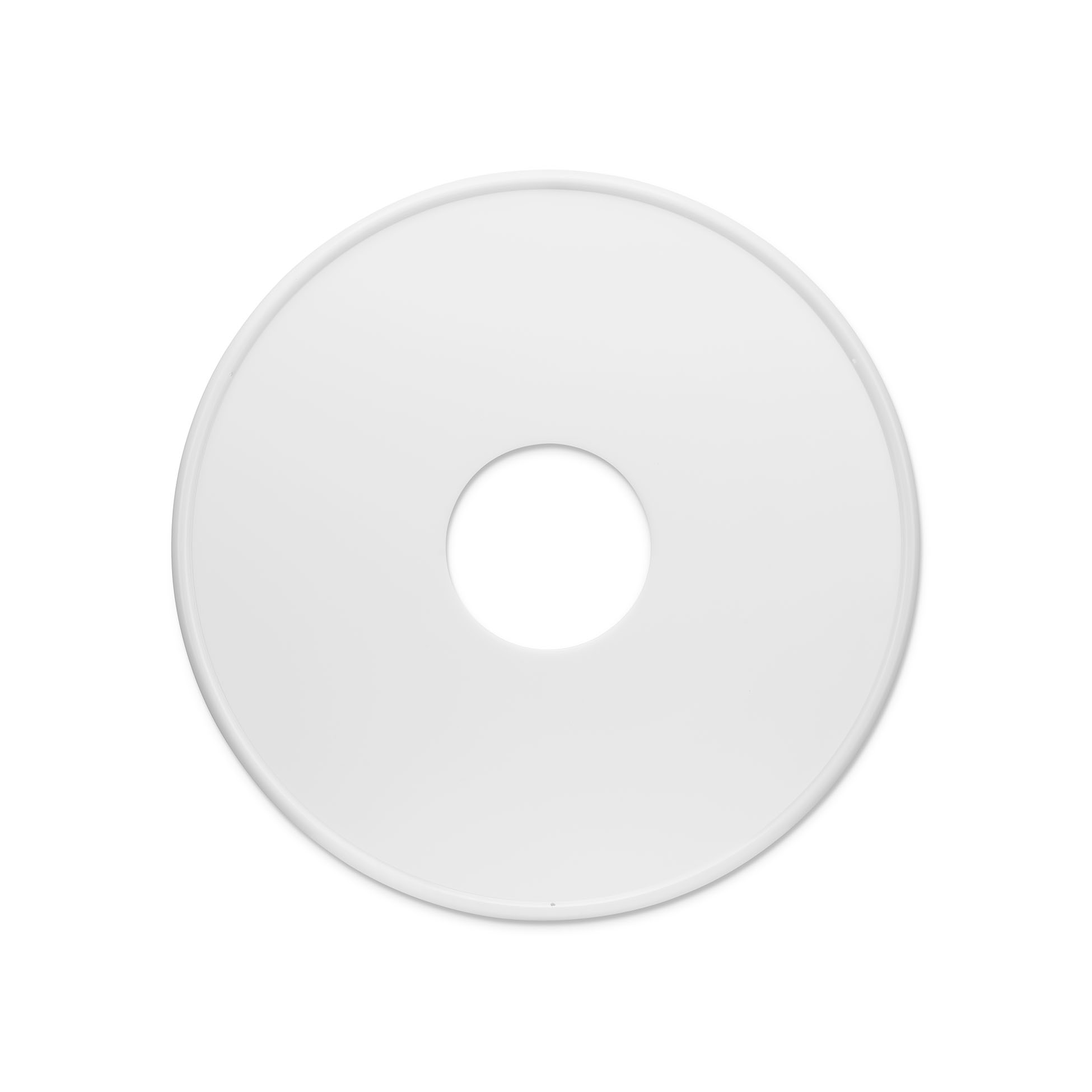

Suspension lamp providing direct, diffused and reflected light. Opaline polymethylmethacrylate (PMMA) injection-molded diffuser plate suspended by three fine steel cables. Polished, nickel-plated, and zapon-varnished stamped sheet metal reflector painted gloss-white inside. Black painted, injection-molded ABS ceiling fitting and rose.
Halogen - 105W
Technical Drawing
Main specifications
EAN
8059607016206
Mounting
Suspension
Enviroment
Indoor dry location
Light source type
Bulb
Lamp category
Halogen
Lamp holder
E27
Ilcos
HSGSR
Number of heads
1
Power (W)
105
Schematic light drawing
Photometric
Light distribution
Roto symmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Cord length (mm)
2700
Batteries inside
No
Physical
Colour
Chrome
Length (mm)
600
Cord colour
Black
Cord length (mm)
2700
Canopy colour
Black
Canopy dimension (mm)
101
Net weight (kg)
2.65
Package height (cm)
170
Package width (cm)
655
Package length (cm)
655
Package volume (m3)
0.07
IP
20
Photometric Files
