Architectural G-O
SA.5100.1A Lighting white

G-O IN

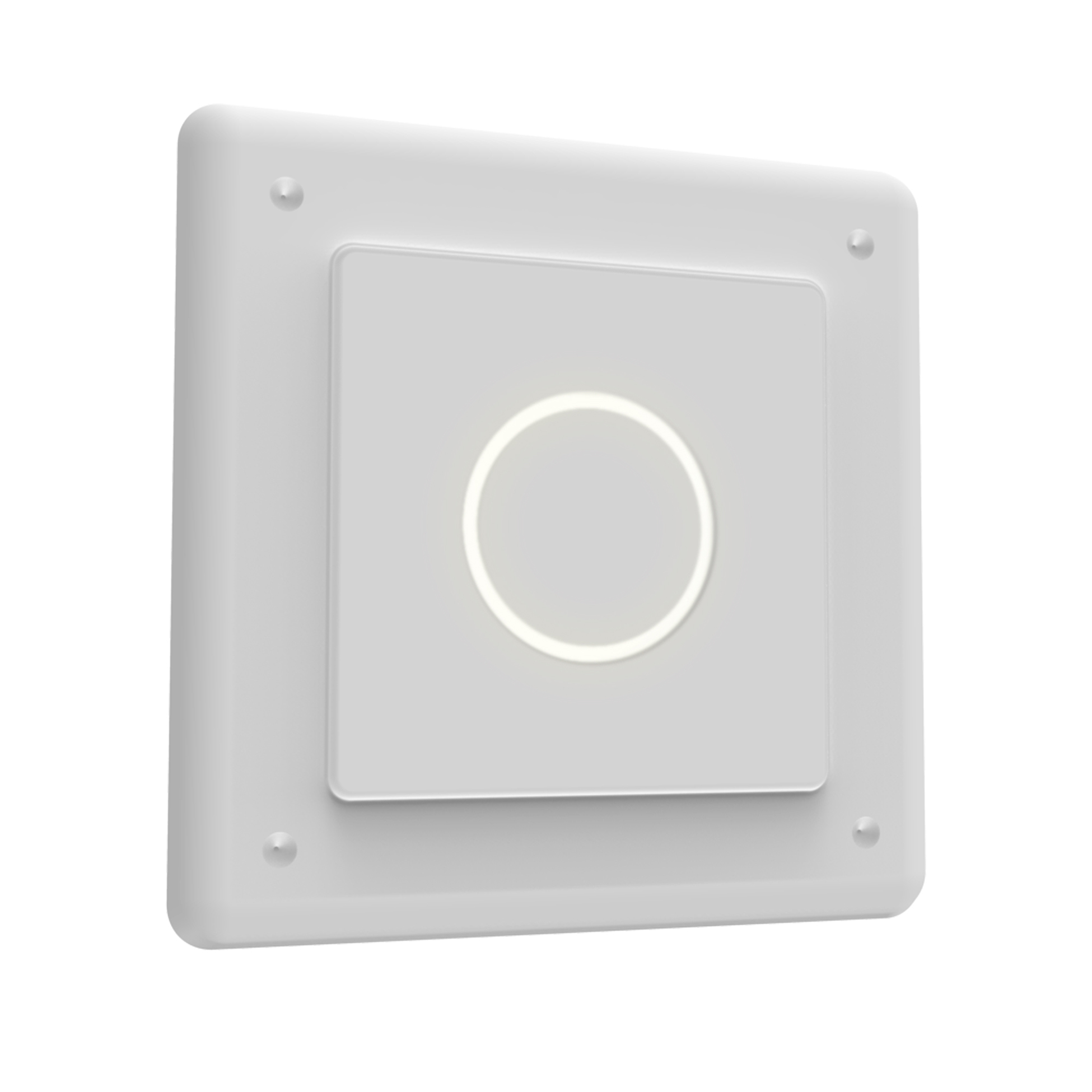

Recessed sign luminaire for indoor application. Power supply source not included: electronic transformer with constant voltage (24V) for LED. 220/240V, 50/60Hz. It includes 1000mm power supply cable.

LED - Top LED - 1.2W - 3000K - Beam° 114

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
Mounting
Wall recessed
Enviroment
Indoor dry location
Light source type
LED
LED type
Top LED
Lamp category
LED
Power (W)
1.2
Source flux (lm)
105
Photometric
Lighting type
Indirect, Direct
Light distribution
Symmetric
CCT (K)
3000
Beam angle C0-180 (º)
114
Beam angle C90-270 (º)
114
UGRL
<16
Electrical
Forward voltage (V)
24
Driver
Remote excluded
Dimmable
No
Dimming type
Non Dimmable
Emergency type
No
Physical
Colour
Lighting white
Trim
No
Orientation
Fixed
Net weight (kg)
0.7
IP
20
IP external
20
CE
UKCA
USA
20
20
20

Accessories & Power Supply

optional (1)
required (4)
