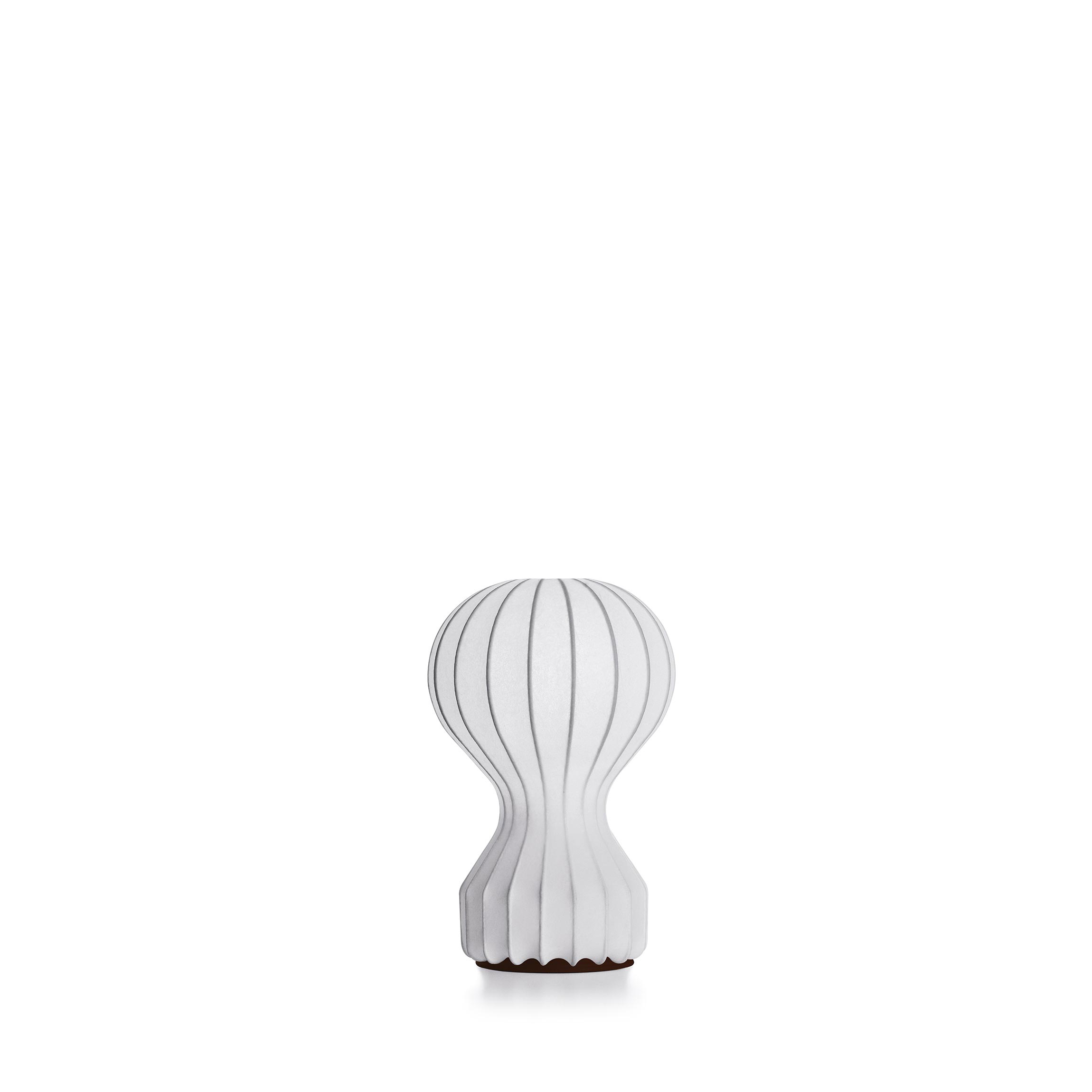

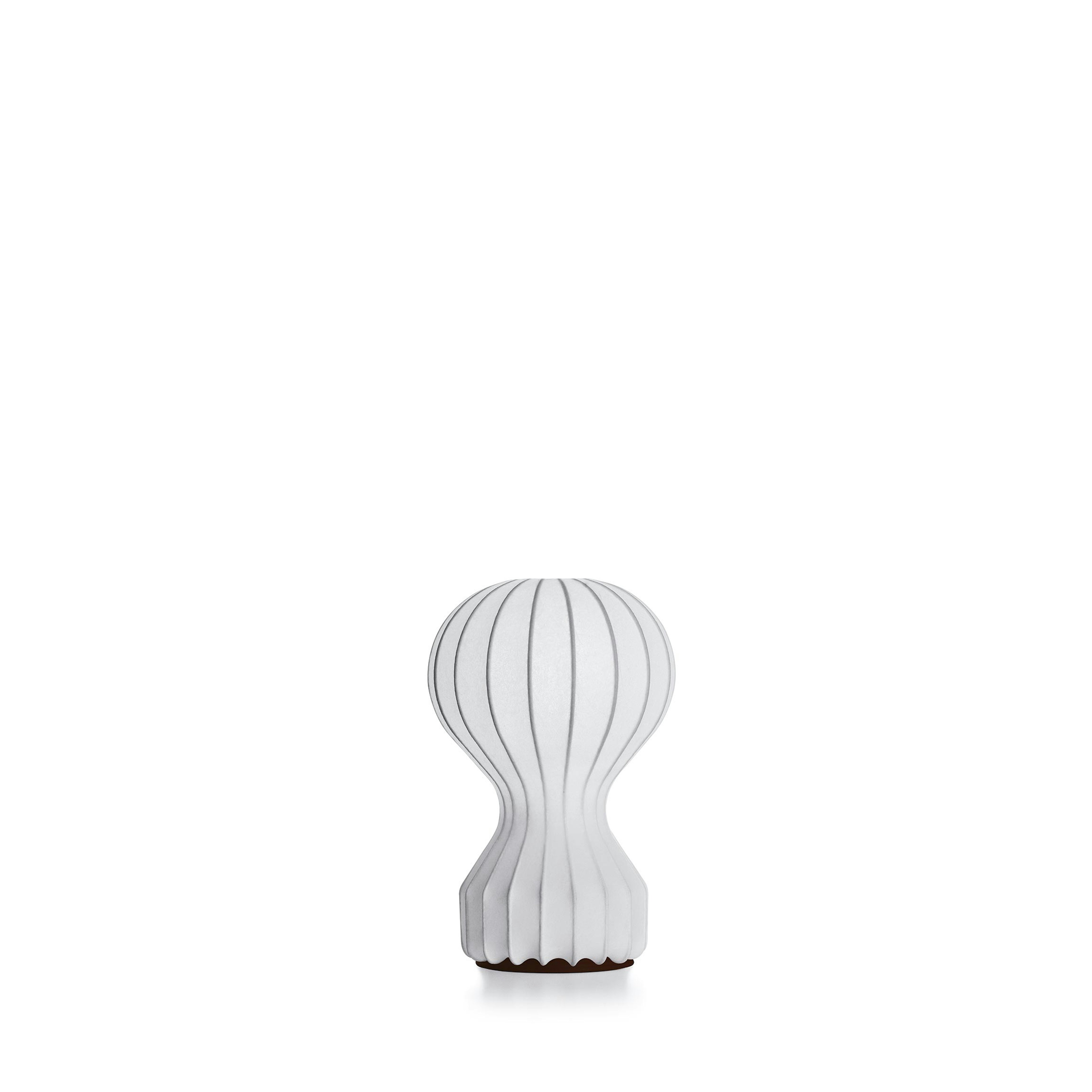

Gatto Piccolo
Designed by Achille and Pier Giacomo Castiglioni, 1960

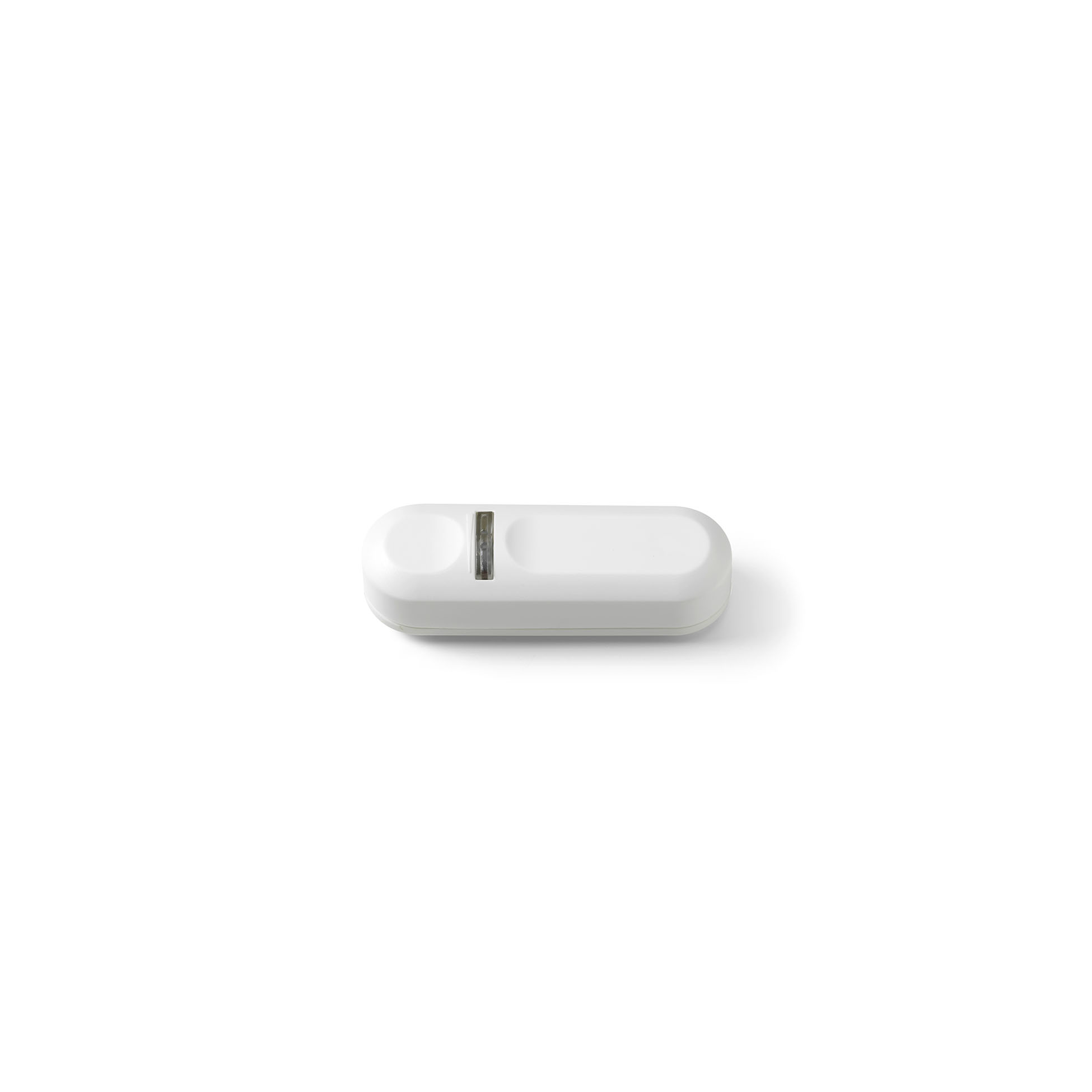

Table lamp providing diffused light. White powder coated internal steel structure sprayed with a unique "cocoon" resin to create the diffuser which is then protected by a transparent sprayed on finish. On the cable there is the electronic dimmer which allows the regulation of light brightness.
Halogen - 60W
Technical Drawing
Main specifications
EAN
8059607002094
Mounting
Table
Enviroment
Indoor dry location
Light source type
Bulb
Lamp category
Halogen
Lamp holder
E14
Ilcos
HSGSA
Number of heads
1
Power (W)
60
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Yes
Dimming interface
Dimmer Integrated
Plug type
Type I
Batteries inside
No
Physical
Length (mm)
190
Cord colour
White
Net weight (kg)
0.8
Package height (cm)
480
Package width (cm)
280
Package length (cm)
280
Package volume (m3)
0.04
IP
20
Photometric Files
