Glo-Ball
F3026500

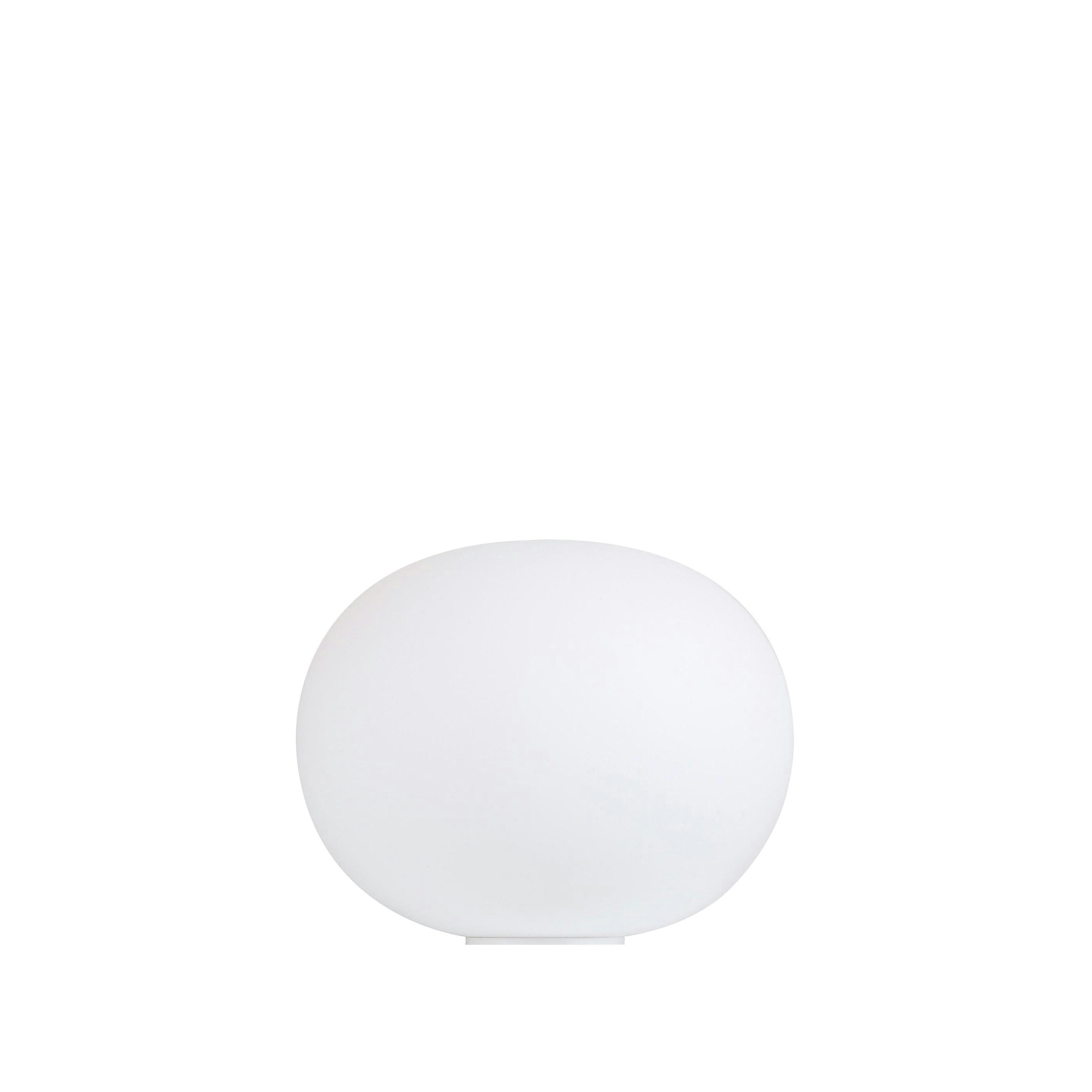

Glo-Ball Basic 2

Table lamp emitting diffused light. Features a diffuser made of externally acid-etched, hand-blown, flashed opaline glass with a die-cast aluminium, alodine-plated threaded ring nut. Base in 30% fibreglass-reinforced, injection-moulded polyamide. Diffuser support in painted, die-cast aluminium. Equipped with an electronic dimmer on the power cable for 0–100% light adjustment.

250W

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Table-Glo_Ball-Basic_2
Main specifications
EAN
8059607002438
Mounting
Environments
Light source type
Light sources included
No

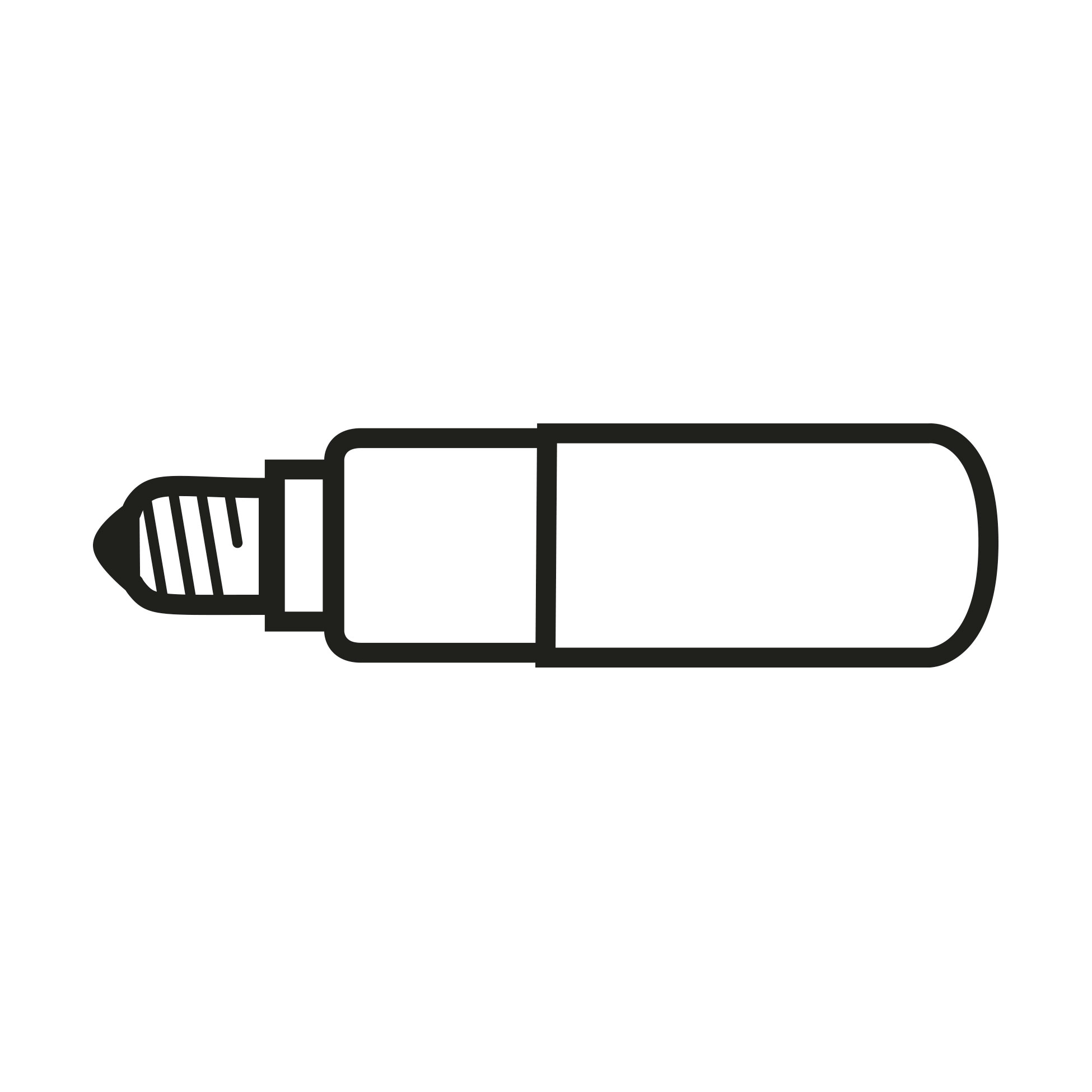

Lamp holders
Ilcos
HSGS
Number of lamps
1
Power (W)
250
Schematic light drawing
F3026000WGLO-BALL_BASIC_2_250W-HL
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Dimming interface
Plug type
Batteries inside
No
Physical
Cord colour
productFields.physical.cordLength
1900
Net weight (kg)
3.9
Package volume (m3)
0.13
IP internal

Download

Photometric Files

Technical Drawings
