F3028000 WhiteGlo-Ball Ceiling 2
Designed by Jasper Morrison, 1999

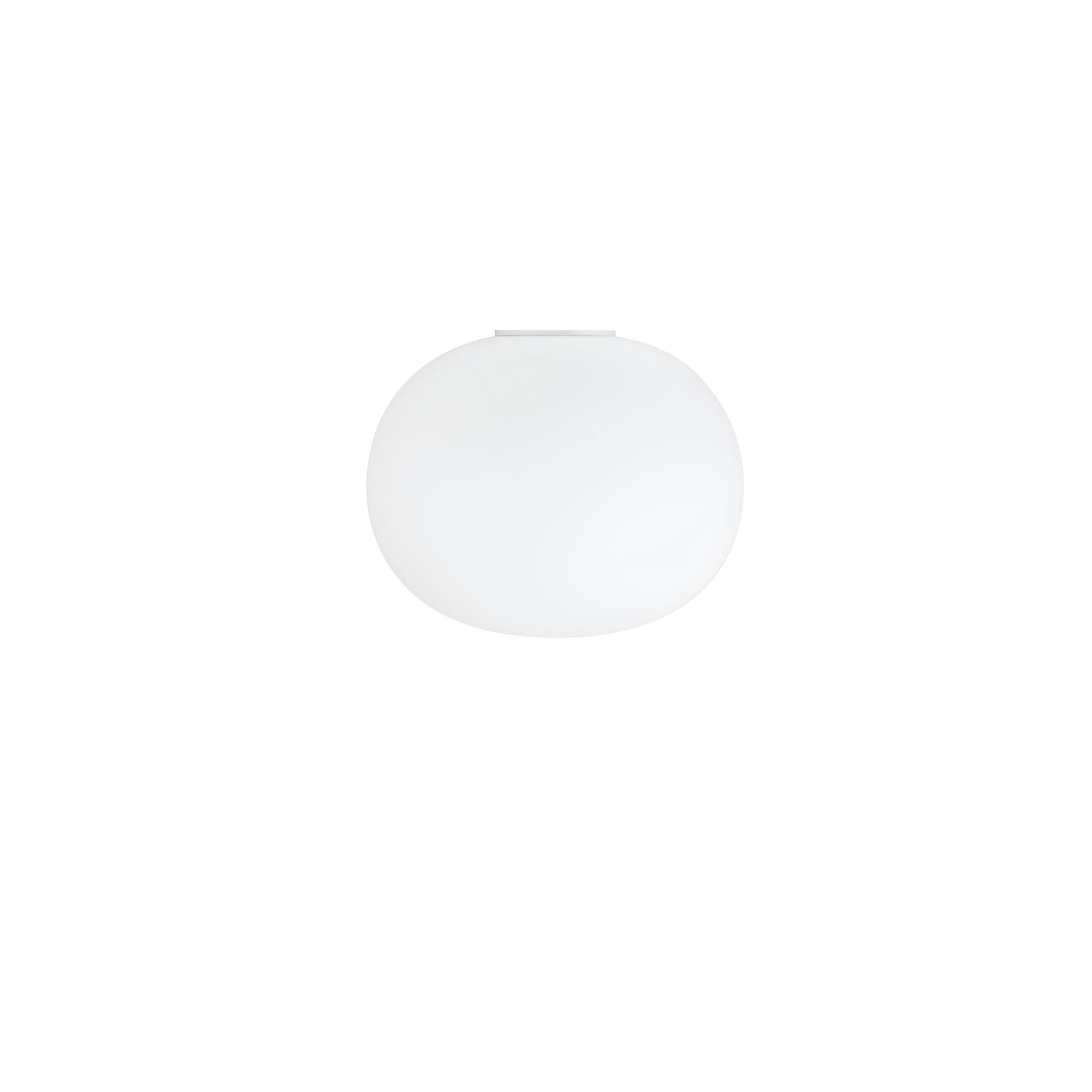

Ceiling mounted lamp providing diffused light. Diffuser consisting of an externally acidetched, hand blown, flashed opaline glass and of a die-cast aluminum threaded ring nut with alodine plating finish. 30% fiberglass reinforced injection-molded polyamide ceiling fitting; gray painted die-cast aluminum diffuser support.
Halogen - 150W
Technical Drawing
Main specifications
EAN
8059607002469
Mounting
Ceiling
Enviroment
Indoor dry location
Light source type
Bulb
Lamp category
Halogen
Lamp holder
E27
Ilcos
HSGS
Number of heads
1
Power (W)
150
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Roto symmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
White
Length (mm)
450
Net weight (kg)
3.77
Package volume (m3)
0.13
IP
40
Photometric Files
