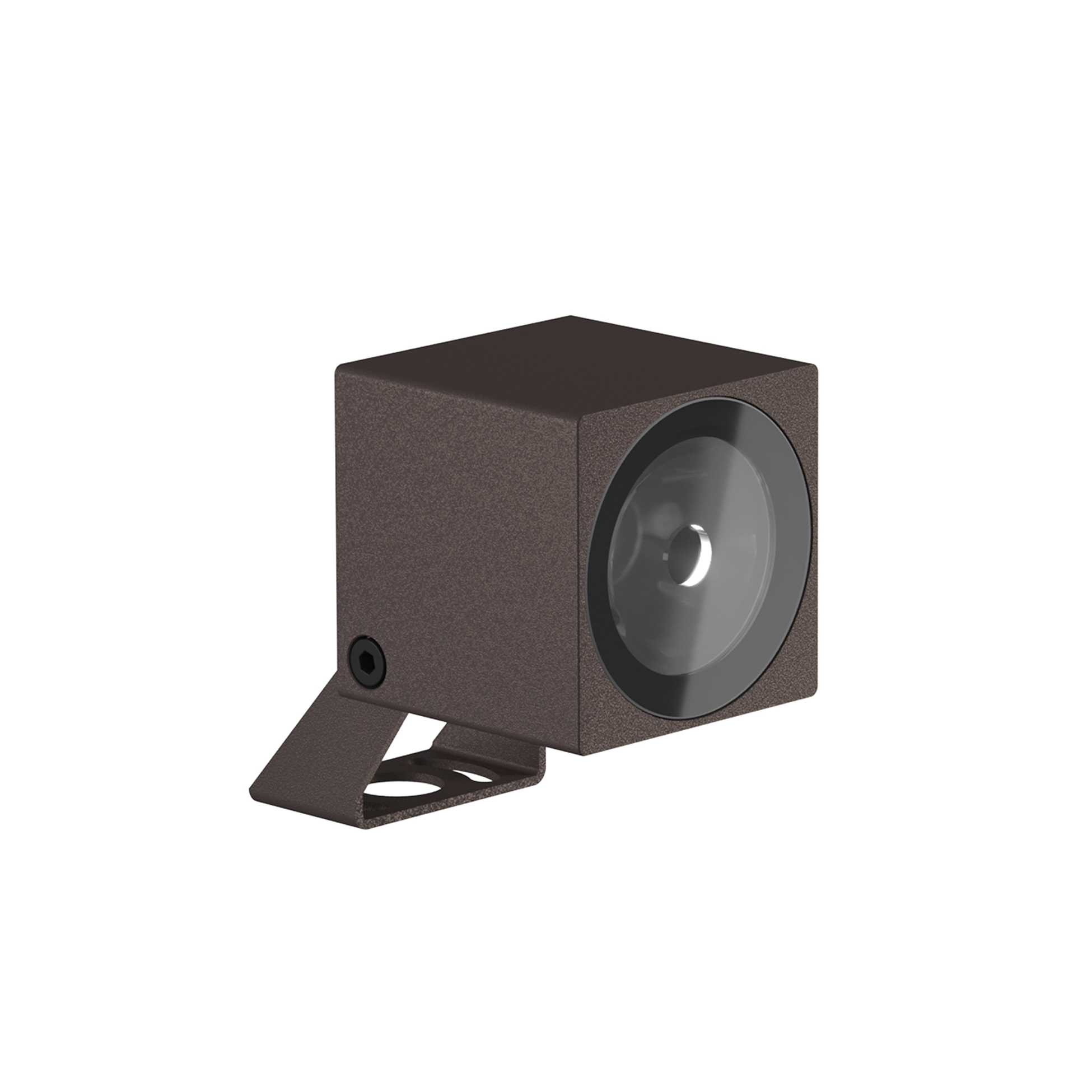

Heavy MetalHeavy Metal Spot 1
Designed by FLOS Outdoor, 2011
LED source included. Electric remote 24V dc ON/OFF power supply to be ordered separately. Wall fixing bracket included. The luminaire is equipped with a protruding, neoprene, 250 mm cable and a wiring kit with crimp connectors and adhesive heat-shrink tubing guaranteeing the water tightness of the connection. Extra clear transparent glass.
2W - 138lm - 2700K - CRI> 80 - Beam° 12
Technical Drawing
Main specifications
EAN
8054793626925
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
2
System power (W)
3.4
Source flux (lm)
199
Lumen Output (lm)
138
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
12
Beam angle C90-270 (º)
12
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
24
Power supply
Dimmable
Power supply type
Dimming interface
Emergency
No
Physical
Colour
Orientation
Longitudinal tilting (°)
180
Net weight (kg)
0.33
Package height (mm)
80
Package width (mm)
130
Package length (mm)
130
IP internal
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance'
Dimmable version on request
