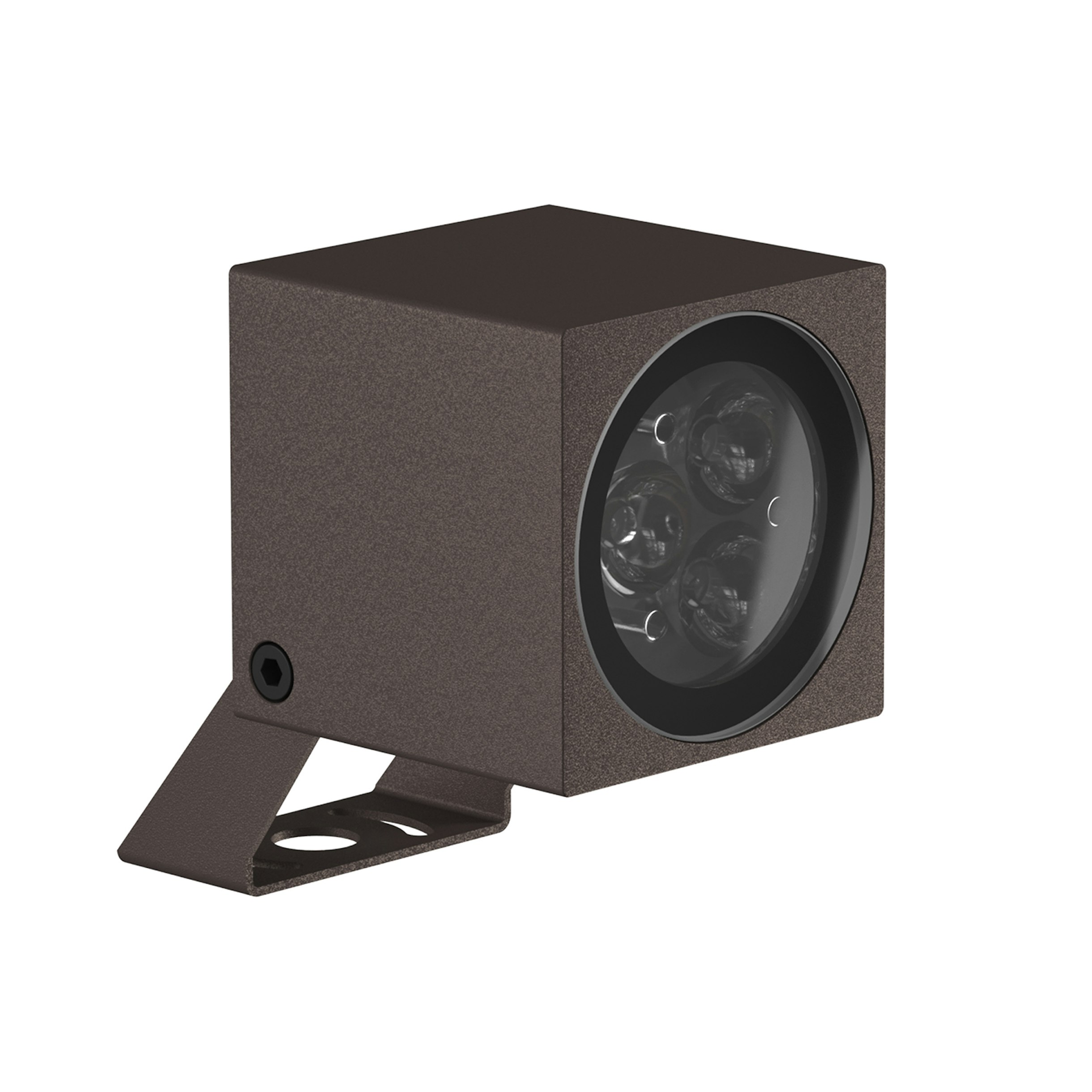

Heavy MetalHeavy Metal Spot 2
Designed by FLOS Outdoor, 2011
LED source included. Electric remote 24V dc ON/OFF power supply to be ordered separately. Wall fixing bracket included. The luminaire is equipped with a protruding, neoprene, 250 mm cable and a wiring kit with crimp connectors and adhesive heat-shrink tubing guaranteeing the water tightness of the connection. Extra clear transparent glass.
5W - 357lm - 3000K - CRI> 80 - Beam° 54
Technical Drawing
Main specifications
EAN
8054793628332
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
5
System power (W)
5.9
Source flux (lm)
466
Lumen Output (lm)
357
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
54
Beam angle C90-270 (º)
54
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
24
Power supply
Dimmable
Power supply type
Dimming interface
Emergency
No
Physical
Colour
Orientation
Longitudinal tilting (°)
180
Net weight (kg)
0.94
Package height (mm)
140
Package width (mm)
180
Package length (mm)
135
IP internal
Notes
Dimmable version on request
