Decorative IC Lights
F3157057 Chrome

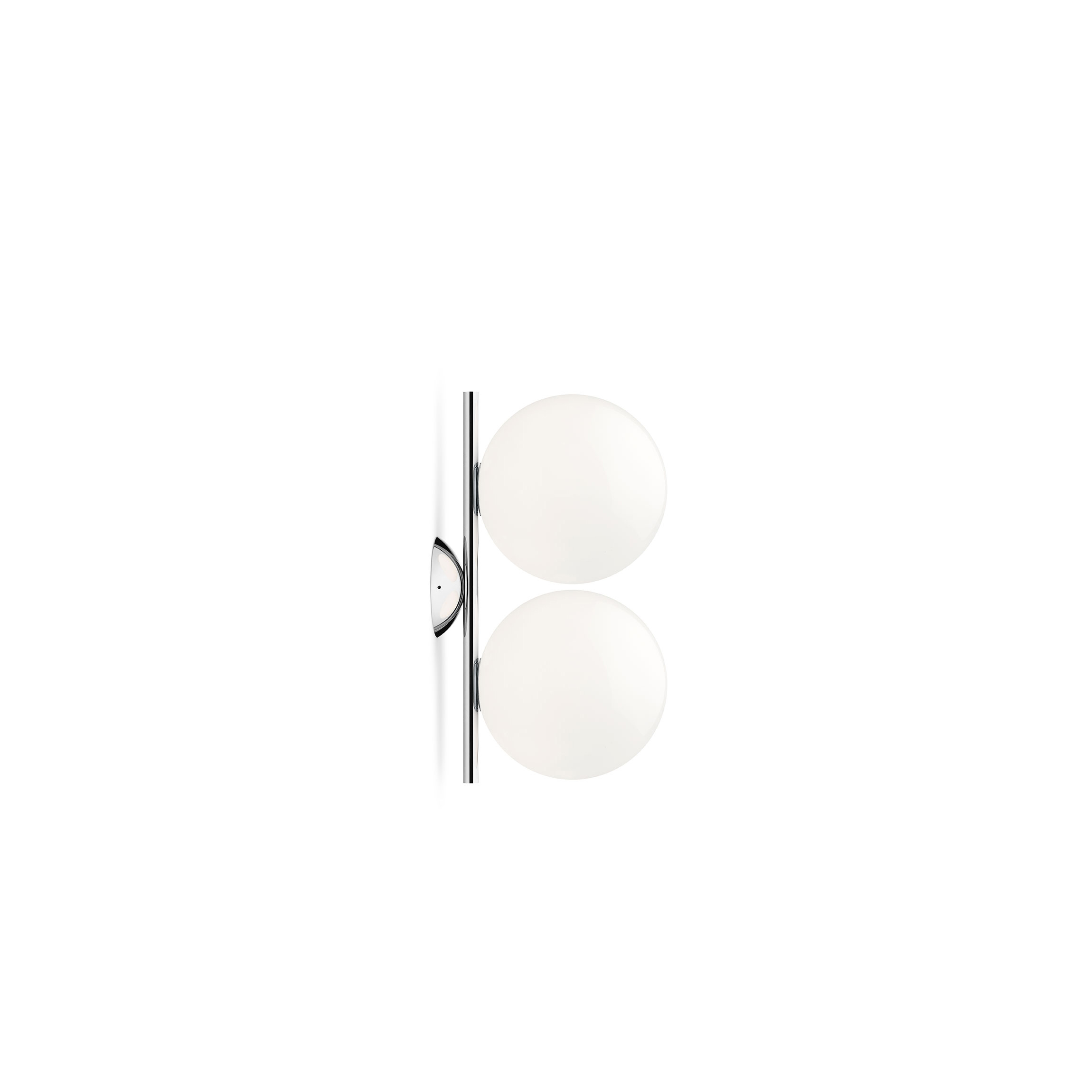

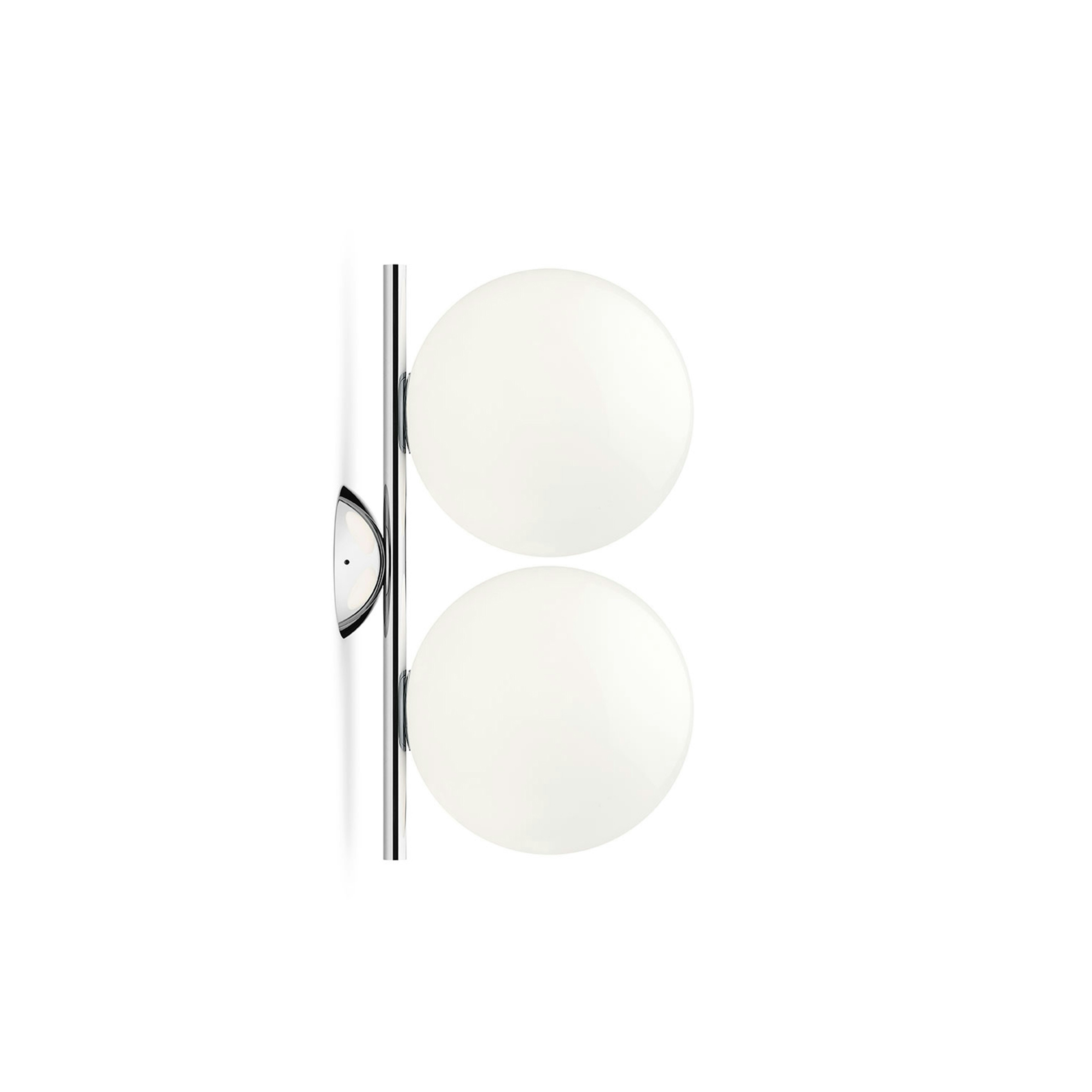

IC Lights C/W1 Double

Wall-ceiling lamp providing diffused light. Frame in brass, brushed and transparent varnished or chrome steel. Blown glass opal diffuser.

Halogen - 2 x 60W - CRI> 95

Also available in:
Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8059607000052
Mounting
Ceiling, Wall
Enviroment
Indoor dry location
Light source type
Bulb
Lamp category
Halogen
Lamp holder
E14
Ilcos
HSGS
Number of heads
2
Power (W)
60
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Symmetric
CRI>
95
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Chrome
Length (mm)
245
Net weight (kg)
2.7
Package volume (m3)
0.06
IP
20
CE
CMIM Morocco
IECEE-CB
EAC
RETILAP
UKCA
IRAM Argentina
CCC
USA
Autoprotected Lamp
20
IK07 - 2.00 Joule
IK07 - 2.00 Joule
20

Download

Tech spec pdf
pdf

Photometric Files

Technical Drawings

Bulbs

Spare Parts
