IC Lights
F3173557

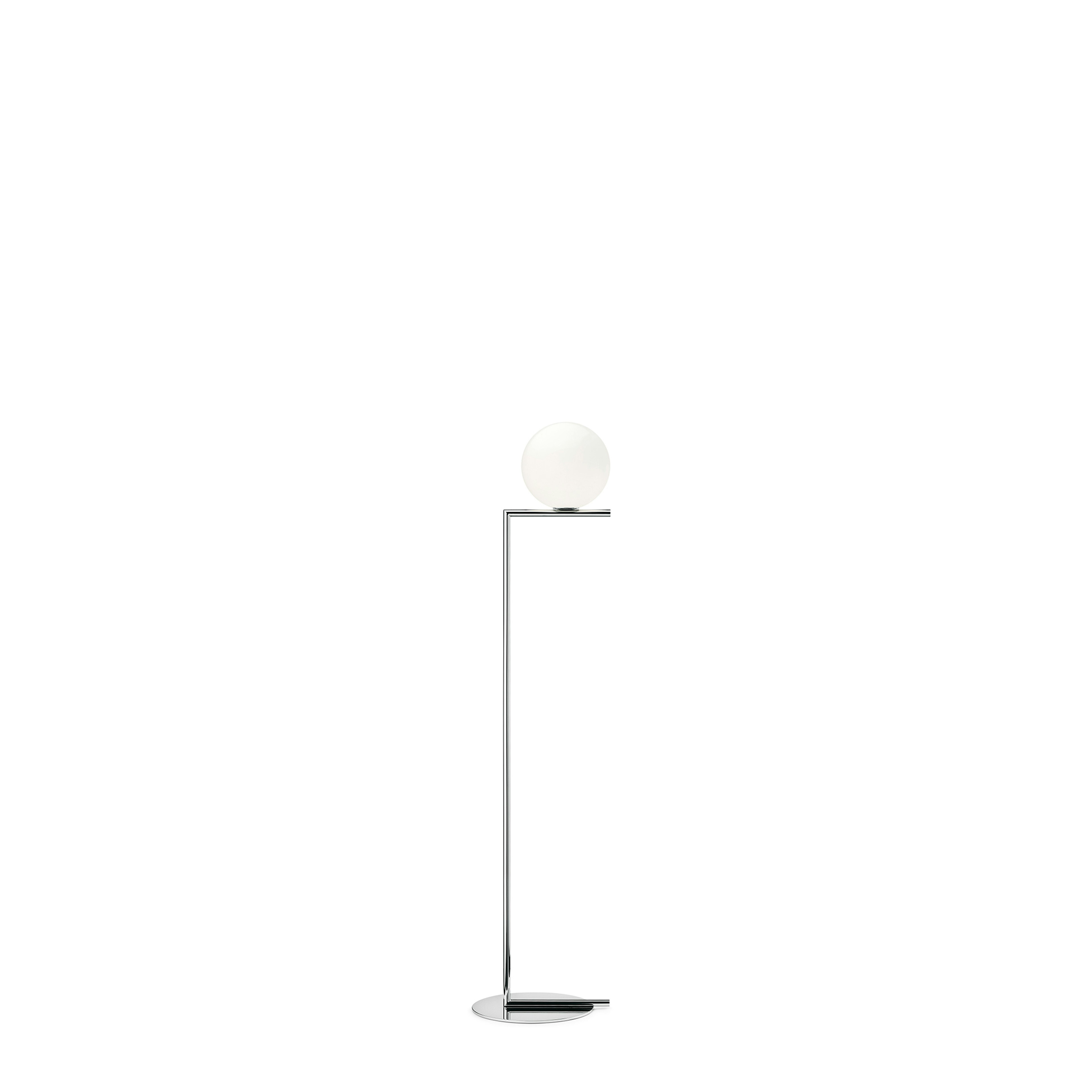

IC Lights F1

Floor lamp emitting diffused light. Features a metal frame available in brushed and transparent varnished brass, chrome-plated steel or black, with a blown opal glass diffuser. Dimmer switch located on the power cable.

Part of the IC Lights series by Michael Anastassiades, a collection that explores balance, movement and identity through minimal, poetic forms. Designed in 2014, the series was inspired by the dexterity of a contact juggler and the visual tension of a sphere poised in perfect equilibrium. With its slender vertical form, the floor model brings a quiet, sculptural presence to any room, continuing Anastassiades’ exploration of industrial simplicity.

Halogen - 60W

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Floor-IC_Lights-F1
Main specifications
EAN
8059607003152
Mounting
Floor
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E14
Ilcos
HSGS
Number of lamps
1
Power (W)
60
Schematic light drawing
F31730WIC_F1_8W-LED
Photometric
Lighting type
Total
Light distribution
Roto symmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Yes
Dimming interface
Dimmer Integrated
Plug type
Type I
Batteries inside
No
Physical
Length (mm)
275
Cord colour
Black
Net weight (kg)
4.7
Package volume (m3)
0.1
IP internal
20
IECEC
CCC
Autoprotected Lamp
20
IK07 - 2.00 Joule

Download

Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D
Bim

Spare Parts

F3173057-ic-f1-flos-boom
