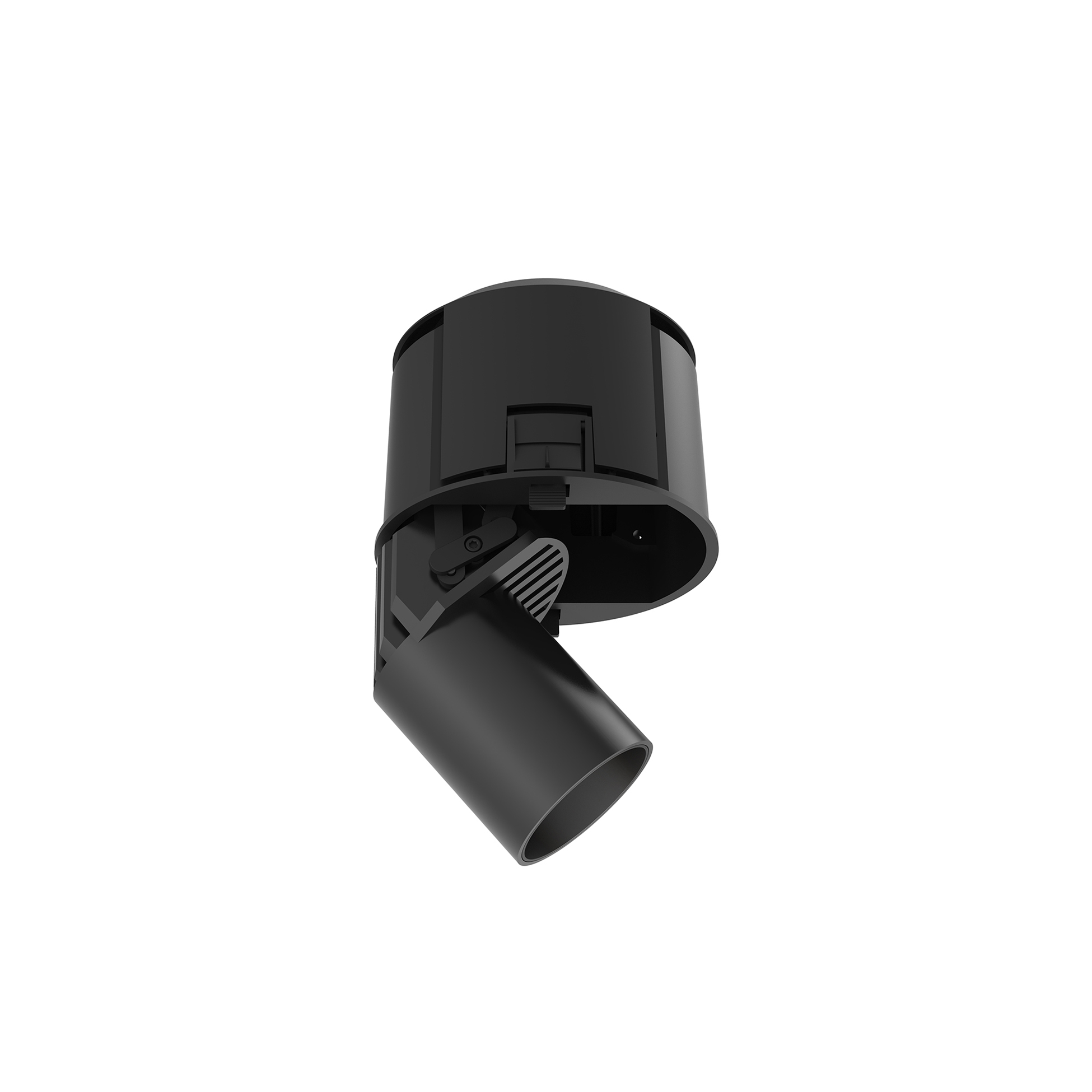

03.0740.14 BlackJohnny 120 Light Source
Designed by FLOS Architectural, 2016
Recessed luminaire with LED light source. Power supply not included. One driver is needed per each light source.
LED - LED array - 18W - 1393lm - 3000K - CRI> 90 - Beam° 13
Also available in:
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Enviroment
Indoor dry location
Light source type
LED
LED type
LED array
Lamp category
LED
Number of heads
1
Power (W)
18
Source flux (lm)
1886
System flux (lm)
1393
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
Beam angle C0-180 (º)
13
Beam angle C90-270 (º)
13
UGRL
<10
Electrical
Insulation class
III
Frequency (Hz)
50/60
Forward voltage (V)
36
Driver
Remote excluded
Dimmable
Yes
Dimming type
Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming
Emergency type
No
Physical
Colour
Black
Trim
No
Orientation
Adjustable
Longitudinal tilting (°)
40
Transversal tilting (°)
40
Recessed depth (mm)
160
Net weight (kg)
0.56
IP
20
IP external
20
Notes
Unique reference for Trim or No Trim recessed installation. 08.0555.00=includes white frame to complete Trim finishing. 08.0505.00=includes optional white and black frames to complete Trim finishing.
