03.0805.14A Black

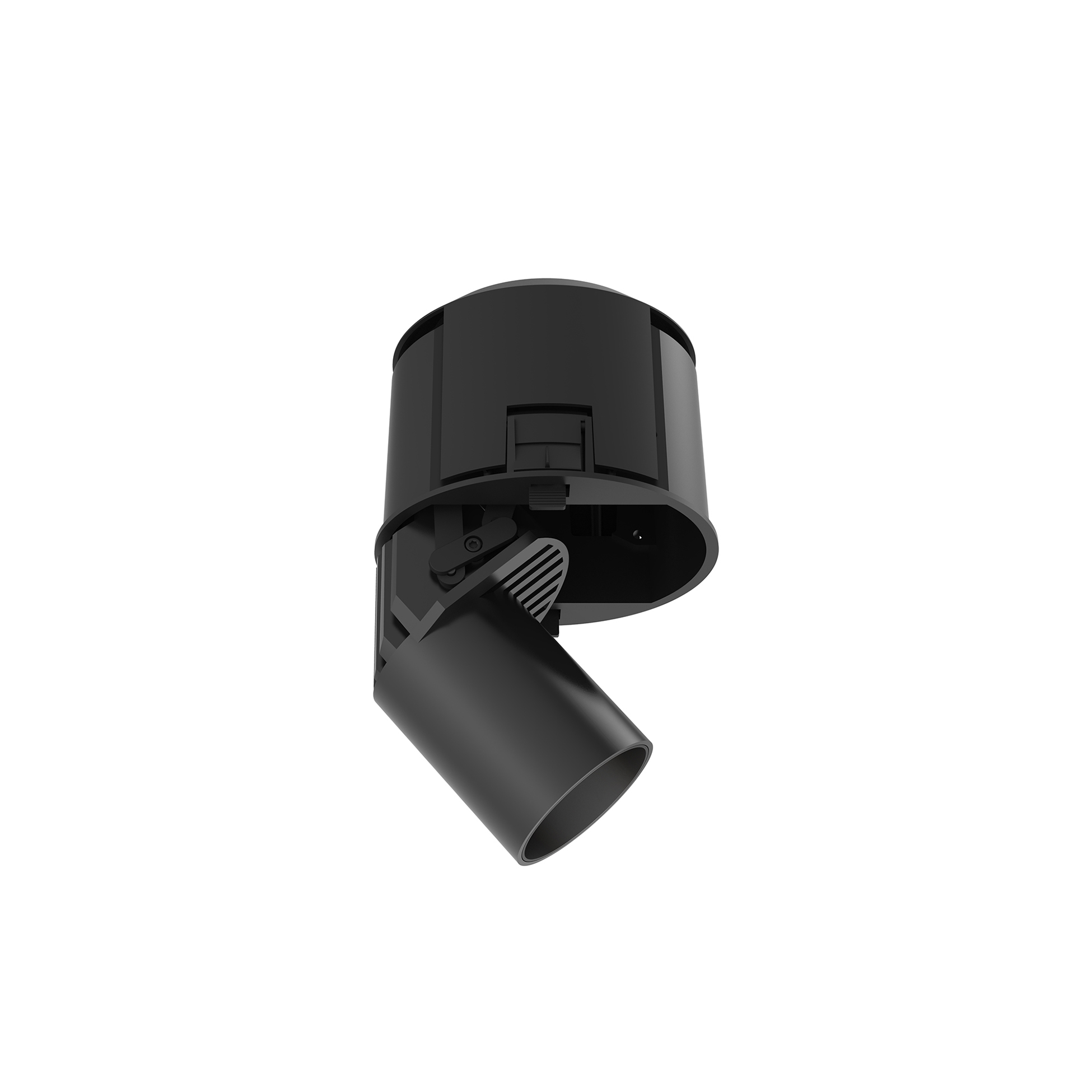

Johnny 120 Light Source
Upgrade
Designed by FLOS Architectural, 2017
Recessed luminaire with LED light source. Power supply not included. One driver is needed per each light source.
LED - LED array - 18W - 2700K - CRI> 90 - Beam° 36
Also available in:
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Enviroment
Indoor dry location
Light source type
LED
LED type
LED array
Lamp category
LED
Number of heads
1
Power (W)
18
System power (W)
20
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
Beam angle C0-180 (º)
36
Beam angle C90-270 (º)
36
UGRL
<10
Electrical
Insulation class
III
Frequency (Hz)
50/60
Forward voltage (V)
36
LED current (mA)
500
Driver
Remote excluded
Dimmable
Yes
Dimming type
Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming
Physical
Colour
Black
Trim
No
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
40
Transversal tilting (°)
40
Net weight (kg)
0.5
IP
20
Notes
With accesories set maximum current at 450mA
