Related to
KelvinKelvin Edge Base
Designed by Antonio Citterio, 2015

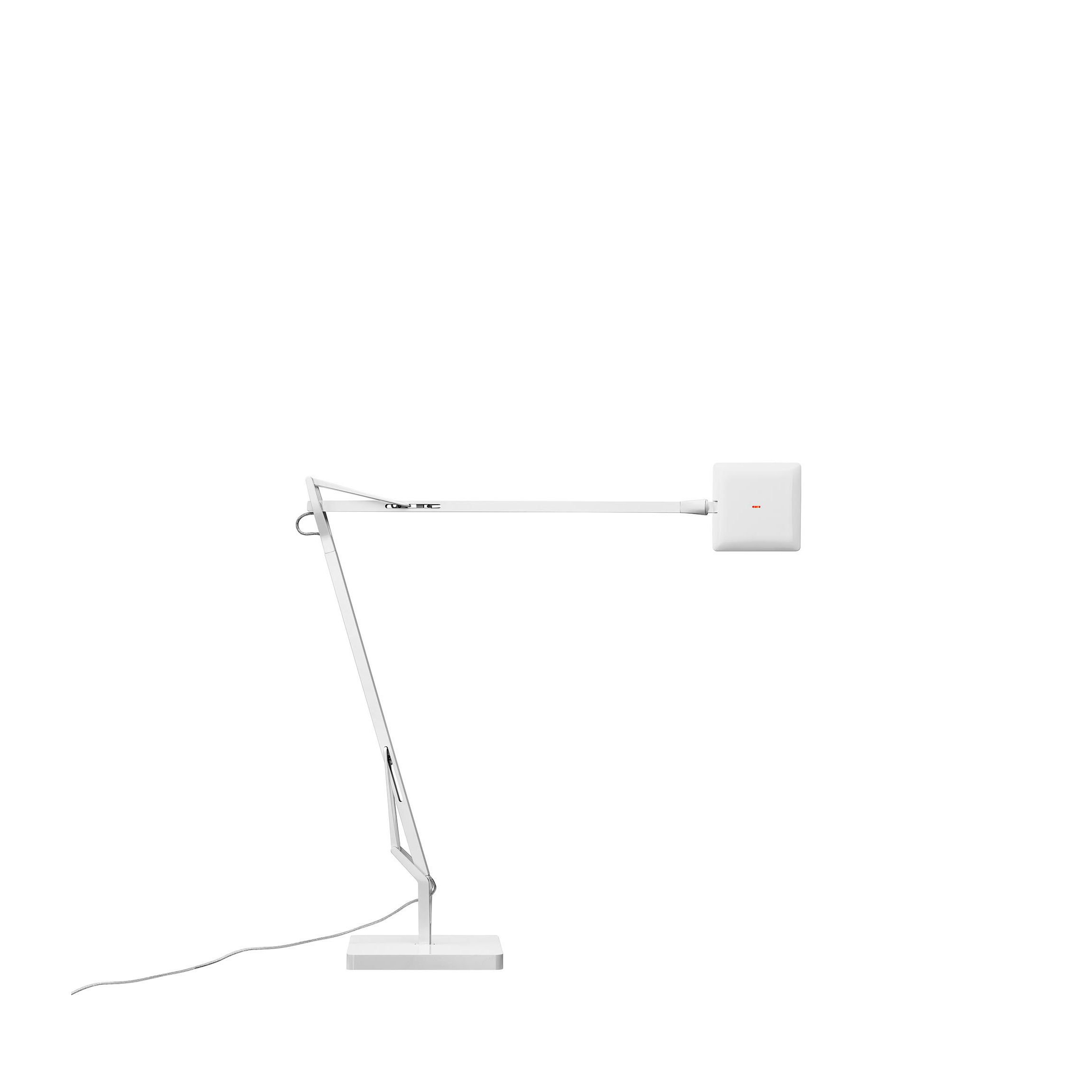

Adjustable table lamp providing direct light. Aluminium painted or chromed body, with die cast head, joints and forks, and extruded arms. Diffuser in photoengraved polycarbonate and aluminate on the perimeter. Edge Lighting technology light source. Optical switch sensor placed on the head that provide 3-step dimming function and color temperature adjustment at 2700K or 3200K. Power cord length 150 cm. Plug-in power supply with interchangeable plugs.
8W - 306lm - 2700-3200K - CRI> 90
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
8
Lumen Output (lm)
306
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Dimmable
Power supply type
Dimming interface
Plug type
Batteries inside
No
Physical
Length (mm)
473
Cord colour
Net weight (kg)
3.9
Package volume (m3)
0.02
IP internal
