Kelvin
F3452530

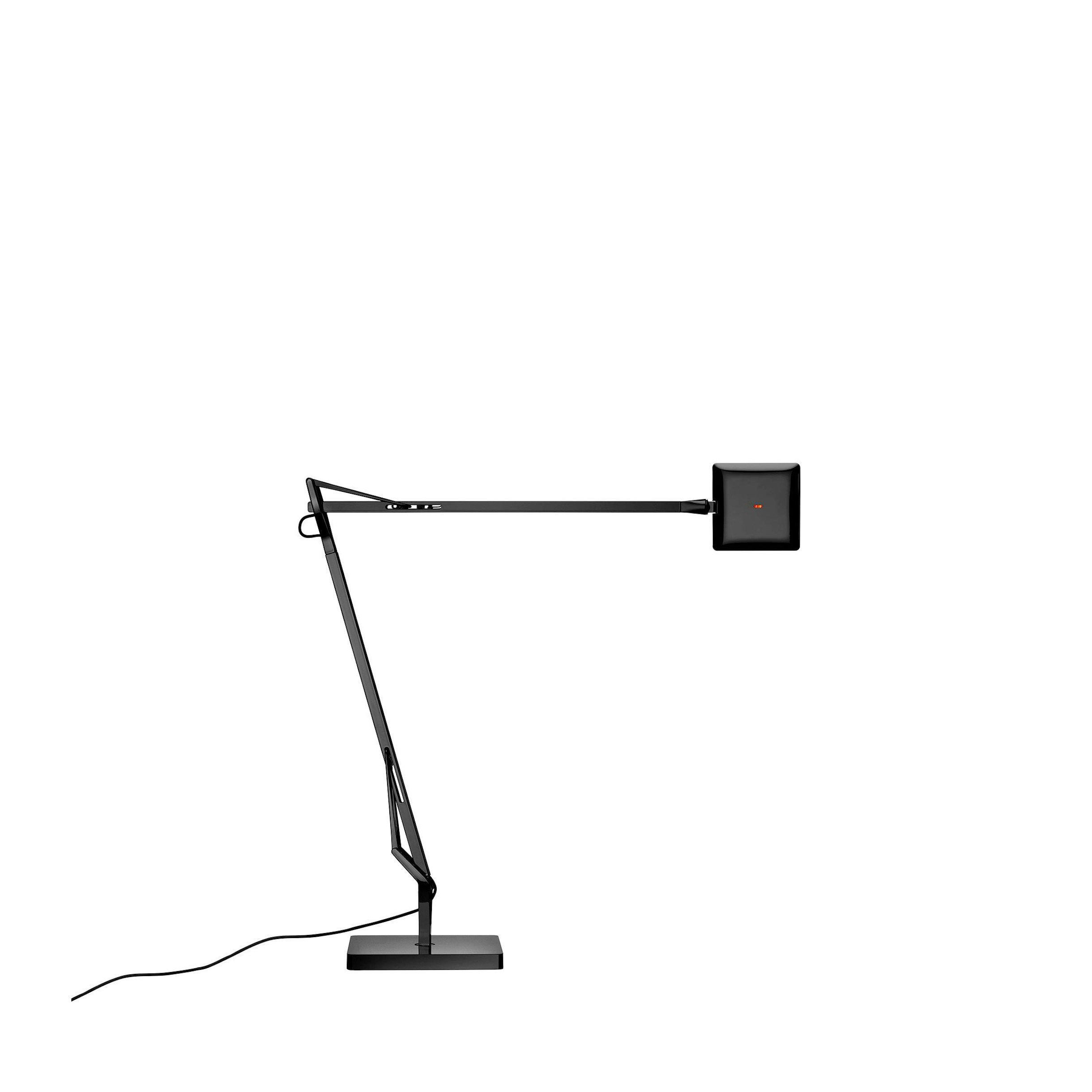

Kelvin Edge Base

Flexible lamp emitting direct light. Painted or chromed aluminium body with die-cast head, joints and forks, and extruded arms. Diffuser in photoengraved polycarbonate with perimeter aluminate finish. Edge Lighting technology light source. Optical switch sensor located on the head providing 3-step dimming and colour temperature adjustment. Plug-in power supply with interchangeable plugs.

The newest addition to the Kelvin LED family, Kelvin Edge Base applies the collection’s industrial language to a more compact scale without compromising output. Inspired by a love of industrial design, Antonio Citterio developed the original Kelvin to blend seemingly simple structures with cutting-edge innovation. Named after its Edge Lighting technology, Kelvin Edge Base delivers a focused yet balanced glow, proving that compact proportions can achieve unexpectedly powerful results.

8W - 306lm - 2700-3200K - CRI> 90

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Table-Kelvin-Edge_Base
Main specifications
Mounting
Table
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
8
Lumen Output (lm)
306
Schematic light drawing
F34520WKELVIN_EDGE_8W-LED
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700-3200
CRI>
90
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Remote included
Dimmable
Yes
Power supply type
Electronic 24V
Dimming interface
Dimmer Integrated
Plug type
Type I
Batteries inside
No
Physical
Length (mm)
473
Cord colour
Black
Net weight (kg)
3.86
Package volume (m3)
0.02
IP internal
20
RG
IECEC
CCC
20

Download

Mounting instructions
Mounting instructions
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL3 Replaceable control gear by an end-user
