Kelvin
F3311030

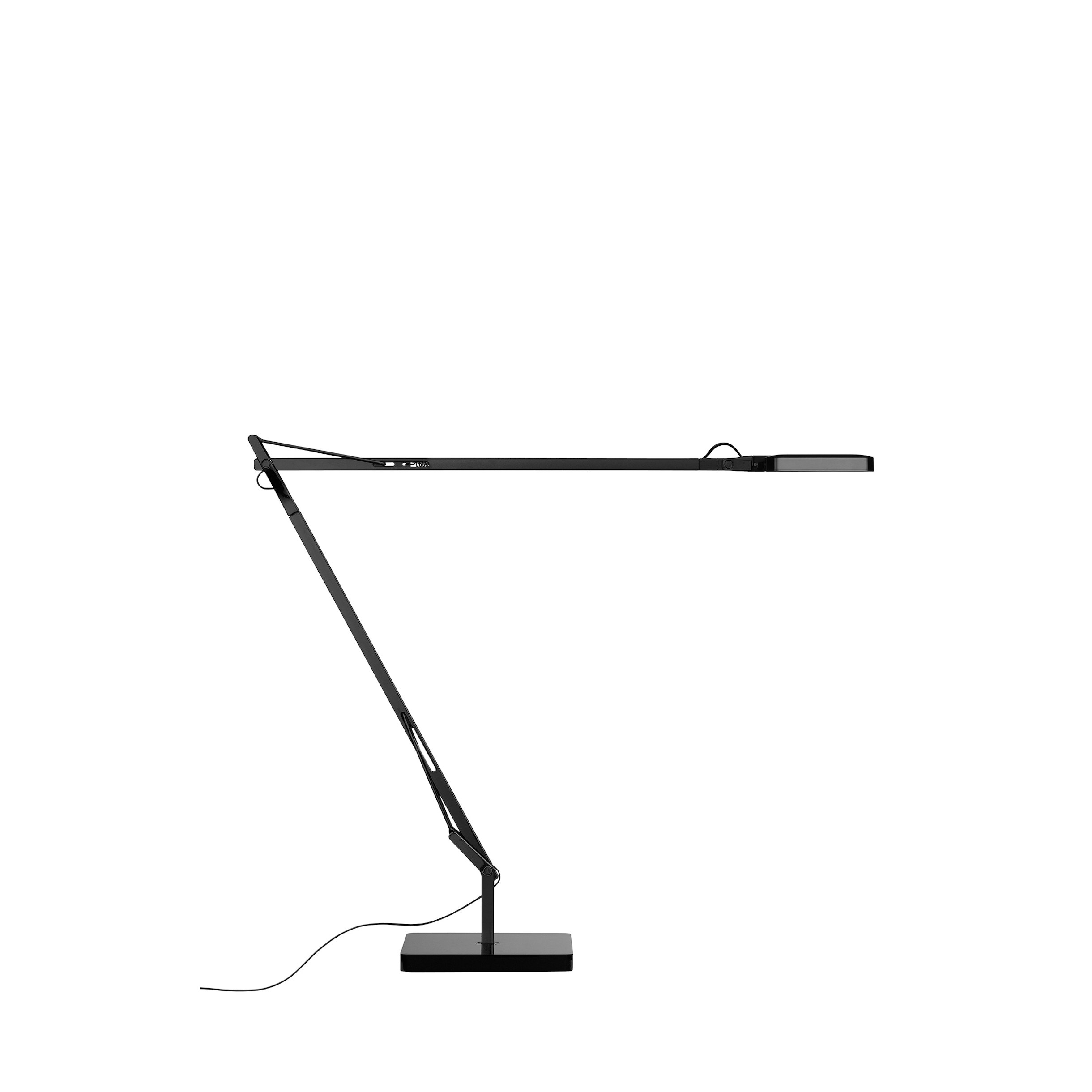

Kelvin Led Base

Adjustable table lamp providing direct lighting, with double pantograph arm and adjustable head. Fused aluminum alloy body. Die-cast aluminum outer head, with injection-molded methacrylate diffuser. BASE external cover in ABS. Extruded aluminum alloy square tube (12x12mm) structure, machined mechanically, so that it houses a stainless steel load-compensation spring and injection-molded acetal resin sliding blocks. 3 mm diameter wire outer tie rods. Available in white, anthracite, black or chrome finishes. The ON/OFF switch is electronic with optical mechanism located in the head. Two possibilities to choose: - PERSONAL MODE (orange switch) Dimm the light intensity you like. - GREEN MODE (green switch) Now Kelvin LED becomes Green, saving even more energy thanks to his automatic compensation of the ambience light.

8W - 523lm - 3000K - CRI> 90

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Table-Kelvin-Led_Base
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
8
Lumen Output (lm)
523
Schematic light drawing
F33110WKELVIN_LED_GM_8W-LED
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Dimmable
Power supply type
Dimming interface
Plug type
, ,
Batteries inside
No
Physical
Colour
Length (mm)
581
Cord colour
productFields.physical.cordLength
1800
Net weight (kg)
4
Package volume (m3)
0.02
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

REPLACEABLE2

PWRSUPRPL3

Spare Parts

F3311030-kelvinledgm-flos-boom
