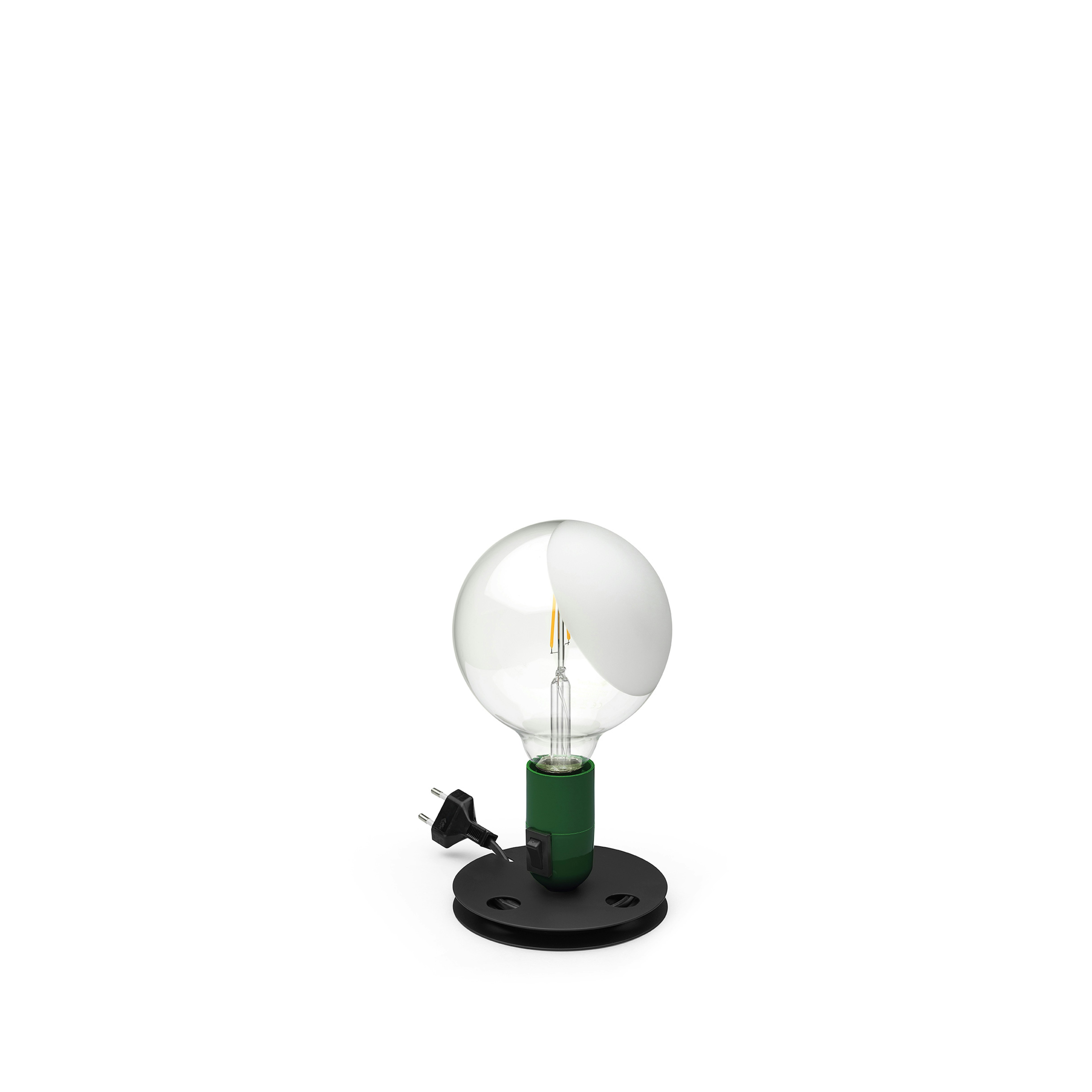

Lampadina
Designed by Achille Castiglioni, 1972
Table lamp providing direct, diffused light. Anodized aluminum base serves to contain excess power cord. Bakelite lamp-holder, painted to match the switch in the orange and black colors. Clear globe lamp is partially sandblasted to diffuse the light.
LED retrofit - 2W - 241lm - 2700K
Technical Drawing
Main specifications
EAN
8059607042250
Mounting
Table
Enviroment
Indoor dry location
Light source type
Bulb
Lamp category
LED retrofit
Lamp type
G125
Lamp holder
E27
Bulb finish
Semifrosted
Number of heads
1
Power (W)
2
System flux (lm)
241
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Asymmetric
CCT (K)
2700
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
230
Dimmable
No
Dimming interface
Switch Integrated (Not Dimmable)
Plug type
Type I
Batteries inside
No
Physical
Length (mm)
125
Cord colour
Black
Net weight (kg)
0.35
Package height (cm)
140
Package width (cm)
160
Package length (cm)
300
Package volume (m3)
0.01
IP
20
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class F
