F004A22H056 Matte Stainless Steel

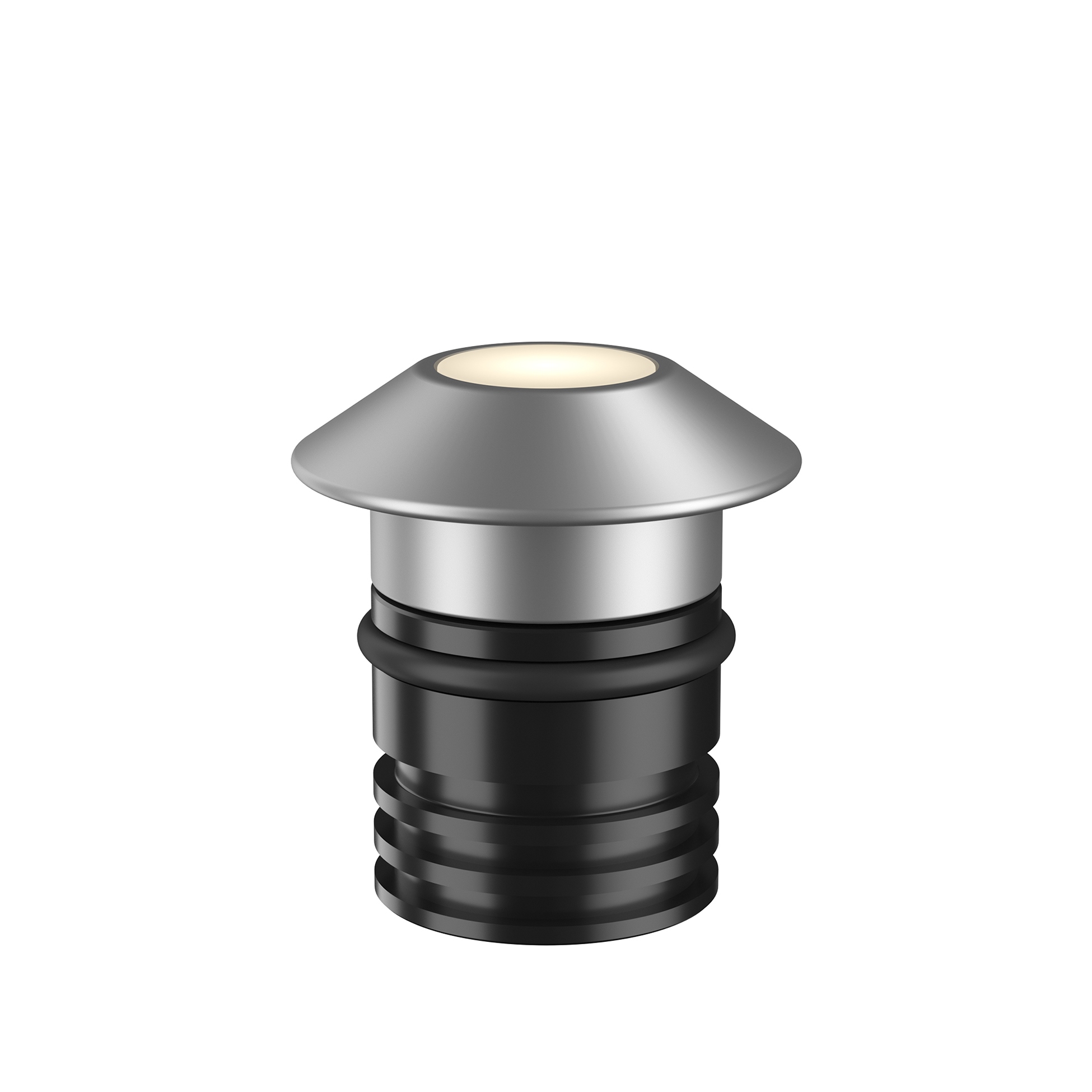

Landlord Ground Ø49 PWM Dimmable Matt Stainless Steel

24V remote power supply to be ordered separately. Necessary box for installation, to be ordered separately.

2W - 96lm - 2700K - CRI> 80 - Beam° 40

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
Technical Drawing
Main specifications
EAN
8054793192857
Mounting
In-ground
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
2
System flux (lm)
96
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
2700
CRI>
80
Beam angle C0-180 (º)
40
Beam angle C90-270 (º)
40
Extreme cut off
No
Electrical
Insulation class
III
Main voltage (Vac)
24
Driver
Remote excluded
Dimmable
Yes
Dimming type
Dimmable DALI PWM, Dimmable 1-10 PWM
Dimming interface
Remote Dimmable (Dimmer Not Included)
Emergency type
No
Physical
Colour
Matte Stainless Steel
Trim
No
Orientation
Fixed
Net weight (kg)
0.18
Package height (cm)
134
Package width (cm)
70
Package length (cm)
83
IP
67
IP external
66
IECEE-CB
EAC
CE
UKCA
Risk 1
USA
Risk 1
66
66
IK10 - 20.00 Joule
IK10 - 20.00 Joule
67
Notes

Carefully install and maintain the fixtures to avoid damaging the coating.
For LED fixtures, most problems are tied to electrical issues related to the insulation, which may cause destructive electrical discharges.
These are frequently caused by:
• power surges from the power network where fixture is connected.
• electrostatic discharge (ESD) from the environment.
We recommend installing a power-surge protection device on the fixture to reduce the intensity of these effects and prevent irreversible damages. The specific device should be chosen based on the electrical characteristics.

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

Accessories & Power Supply

required (16)
optional (1)
All
Power supply
Accessory
