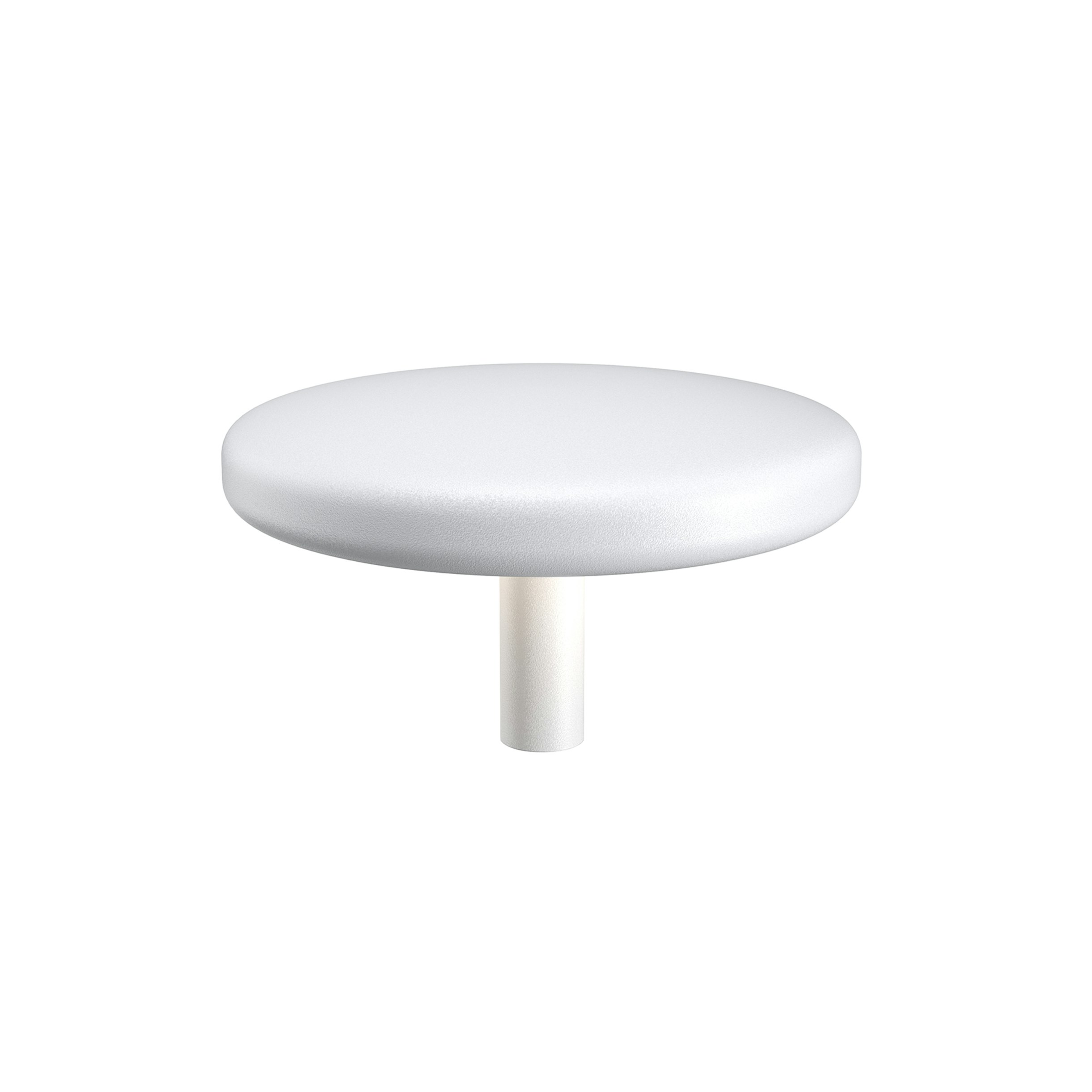

Thumbnail
F004C20A001 White

Landlord Soft PWM Dimmable White

20º adjustable head for installation on ground poles. Poles to be ordered as separated accessories. 24V remote power supply to be ordered separately. Each head comes with a 2000mm lenght outgoing cable and a wiring kit.

5W - 242lm - 2700K - CRI> 80 - Beam° 51

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
Technical Drawing
Main specifications
EAN
8054793195964
Mounting
Ground
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
5
System flux (lm)
242
Photometric
Light distribution
Symmetric
CCT (K)
2700
CRI>
80
Beam angle C0-180 (º)
51
Beam angle C90-270 (º)
51
Extreme cut off
No
Electrical
Insulation class
III
Main voltage (Vac)
24
Driver
Remote excluded
Dimmable
Yes
Dimming type
Non Dimmable, Dimmable DALI PWM, Dimmable 1-10 PWM
Dimming interface
Remote Dimmable (Dimmer Not Included)
Emergency type
No
Physical
Colour
White
Trim
No
Orientation
Adjustable
Rotation (º)
359
Transversal tilting (°)
20
Net weight (kg)
0.18
Package height (cm)
105
Package width (cm)
163
Package length (cm)
163
IP
65
CE
IECEE-CB
EAC
UKCA
USA
65
IK07 - 2.00 Joule
IK07 - 2.00 Joule
65
Notes

During the installation and the maintenance of the fixtures it is important to be careful and avoid damages on the paint coating.
Damages on the coating exposed to outdoor conditions or water, could cause corrosion.
Chemical substances affect the anticorrosion covering protection.
For LED fixtures, there is evidence that most of the damages are connected to electrical effects related to the insulations, which cause destructive electrical discharges
These effects are frequently caused by:
• over voltage coming from the mains’ network where fixture is connected.
• electrostatic discharge (ESD) coming from the environment.
The use of a protective device against the overvoltage on the electrical installation is warmly suggest this helps to reduce the intensity of some of these phenomenon and prevent irreversible damages. The selection of the type of device to be used must be adjust on the electrical plant.

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional
