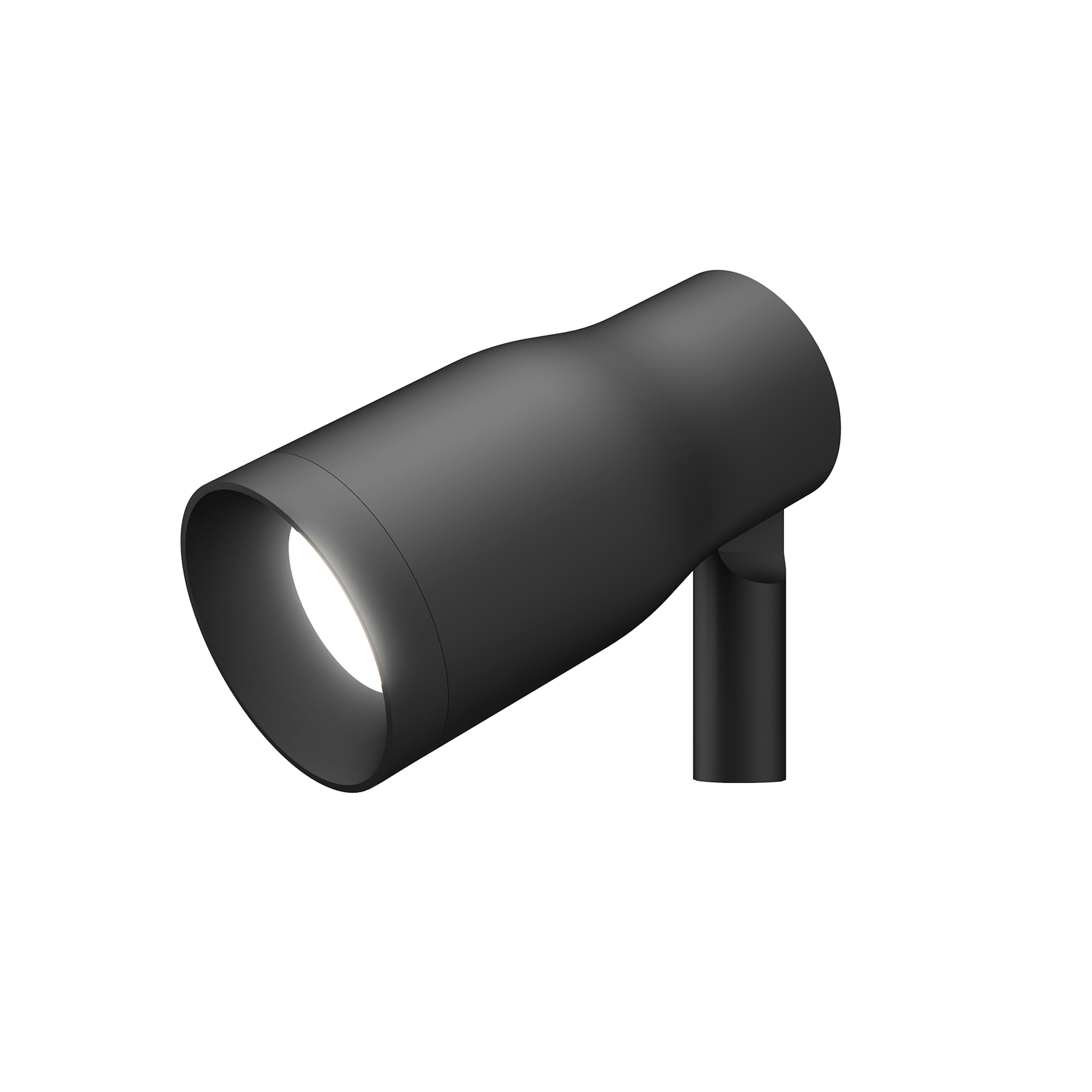

Landlord Spot Ø50 PWM Dimmable Anodized Black
Designed by Piero Lissoni, 2018
Spot adjustable head for installation on ground poles or on wall base. Poles and base to be ordered as separated accessories. Heads are equipped with a dismountable ferrule, to insert flood lens or up to two honeycombs, (to be ordered as separate accessories). 24V remote power supply to be ordered separately. Each head comes with a 2000 mm lenght outgoing cable and a wiring kit.
7W - 457lm - 3000K - CRI> 80 - Beam° 24
Technical Drawing
Main specifications
Schematic light drawing
Photometric
Electrical
Physical
Carefully install and maintain the fixtures to avoid damaging the coating.
For LED fixtures, most problems are tied to electrical issues related to the insulation, which may cause destructive electrical discharges.
These are frequently caused by:
• power surges from the power network where fixture is connected.
• electrostatic discharge (ESD) from the environment.
We recommend installing a power-surge protection device on the fixture to reduce the intensity of these effects and prevent irreversible damages. The specific device should be chosen based on the electrical characteristics.
