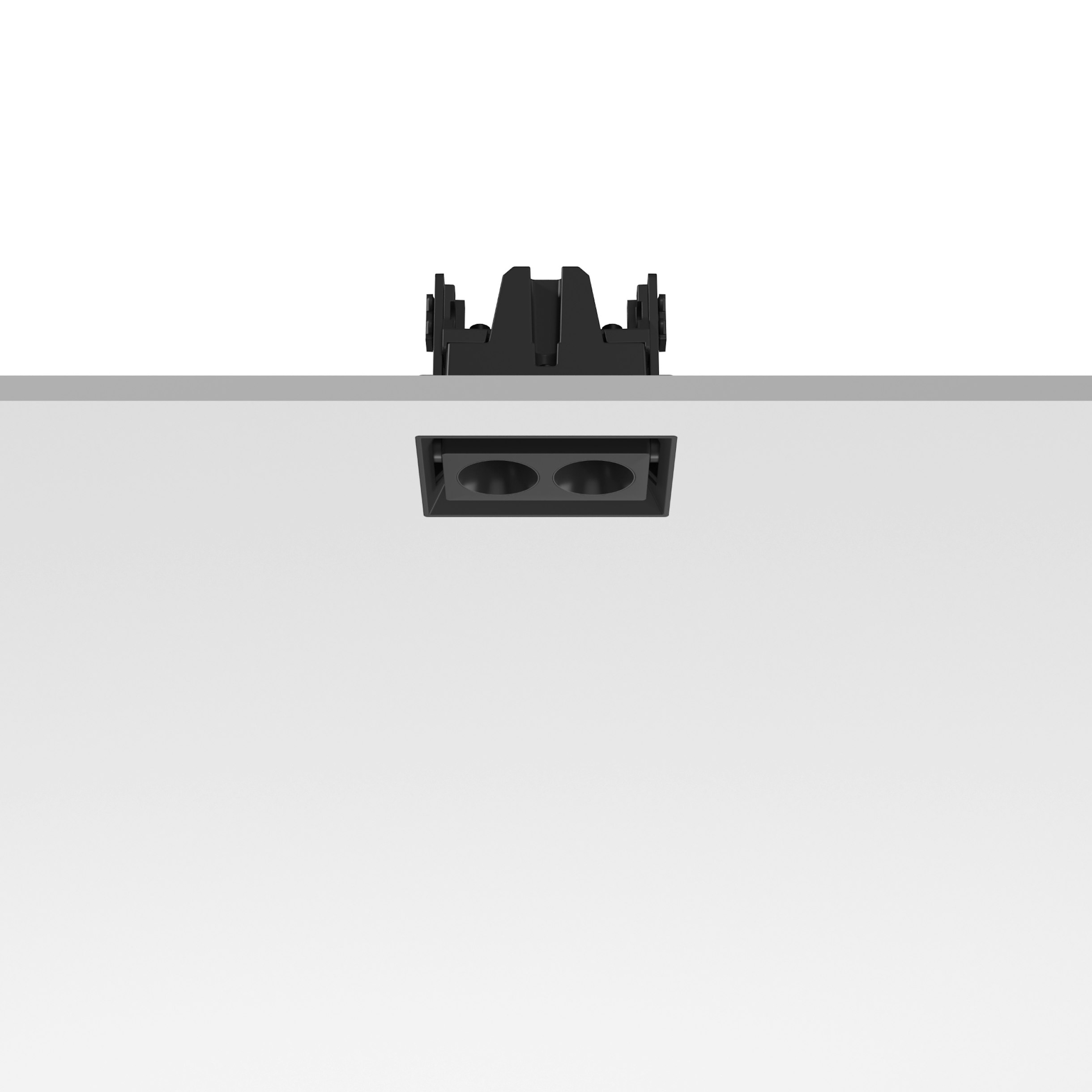

05.8761.14 Black/BlackLight Shadow Mini Adjustable No Trim 2 Spots Optic Spot
Designed by FLOS Architectural, 2025
Adjustable recessed luminairewith 2 LED lighting spots. Remote power supply not included (220-240V).It requires a pre-installation frame,to be ordered separately.
LED - Power LED - 3.1W - 271lm - 3000K - CRI> 90 - Beam° 14
Technical Drawing
Main specifications
Mounting
Recessed
Enviroment
Indoor dry location
Light source type
LED
LED type
Power LED
Lamp category
LED
Number of heads
1
Power (W)
3.1
System power (W)
4.6
Source flux (lm)
309
System flux (lm)
271
Efficacy (lm/W)
58
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
3
Rf fidelity index
91
Rg gamut index
101
LED Life / Failure Ratio
L90B20>52.000h_Tc85ºC
Beam angle C0-180 (º)
14
Beam angle C90-270 (º)
14
Extreme cut off
Yes
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
6
LED current (mA)
500
Driver
Remote
Dimmable
Yes
Dimming type
Dimmable
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Black/Black
Trim
No
Orientation
Adjustable
Transversal tilting (°)
30
Recessed depth (mm)
48
Length (mm)
57
Net weight (kg)
0.1
Package height (cm)
6
Package width (cm)
13
Package length (cm)
7
IP
20
Photometric Files
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class G
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
