Architectural Light Shadow
05.8401.14 Black

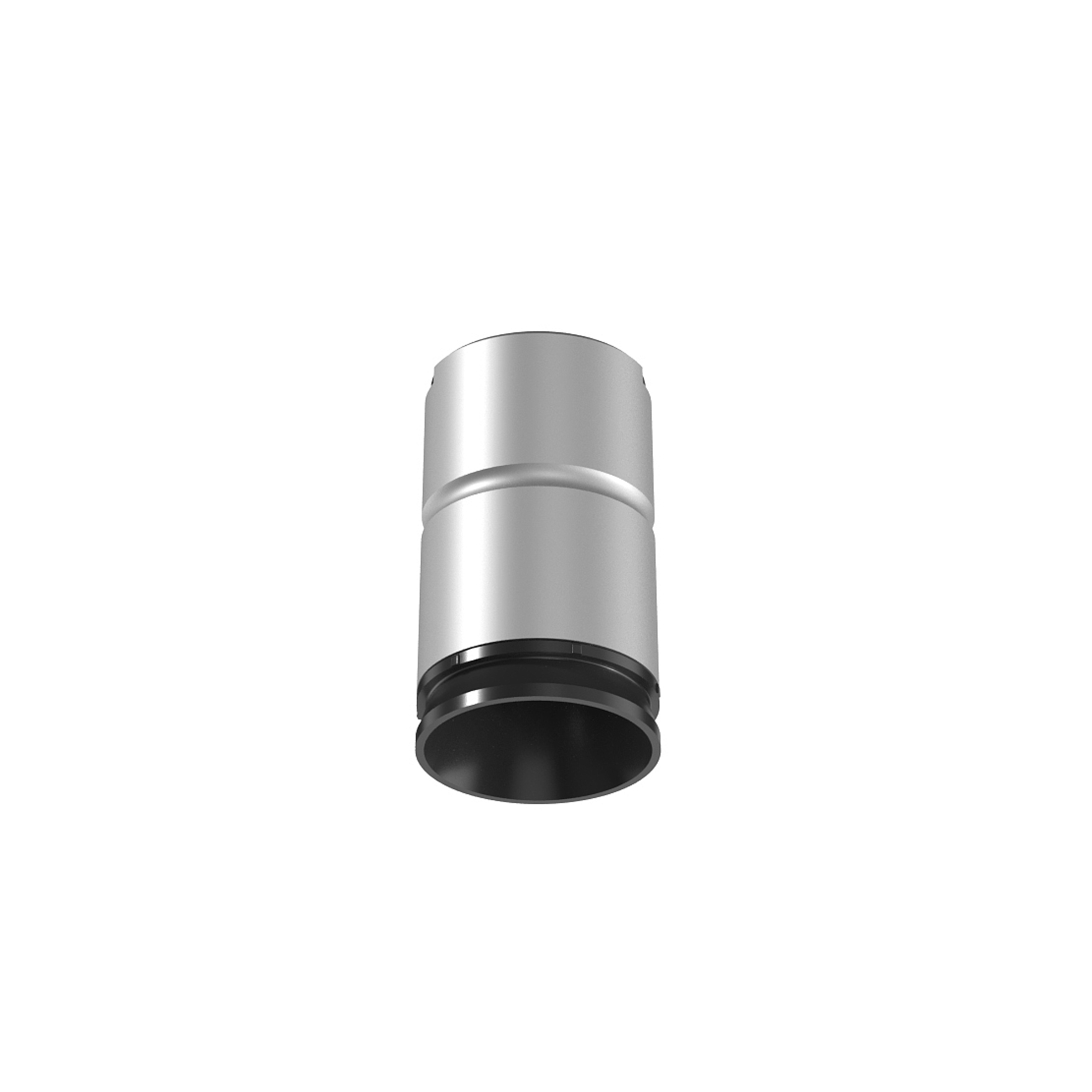

Light Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Medium

LED lighting luminaire to be insertedin the recessed frames (Trim/NoTrim). It requires a pre-installationframe, to be ordered separately.Installation through a bayonetsystem with interchangeable spots.Available in one-light versions andgroups of two and four lights. Drivernot included.

LED - Power LED - 1.5W - 133lm - 2700K - CRI> 90 - Beam° 25

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
Mounting
Recessed
Enviroment
Indoor dry location
Light source type
LED
LED type
Power LED
Lamp category
LED
Number of heads
1
Power (W)
1.5
System power (W)
2.3
Source flux (lm)
148
System flux (lm)
133
Efficacy (lm/W)
57
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
3
Rf fidelity index
93
Rg gamut index
98
LED Life / Failure Ratio
L90B20>52.000h_Tc85ºC
Beam angle C0-180 (º)
25
Beam angle C90-270 (º)
26
Extreme cut off
Yes
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
3
LED current (mA)
500
Driver
Remote
Dimmable
Yes
Dimming type
Dimmable
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Black
Orientation
Fixed
Recessed depth (mm)
42
Spot diameter (mm)
20
Length (mm)
20
Net weight (kg)
0.02
Package height (cm)
7
Package width (cm)
6
Package length (cm)
8
IP
20
IP external
54
CE
UKCA
USA
54
Cold Beam Lighting
Gwt 850 (º)
54
20

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class G

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Accessories & Power Supply

required (12)
optional (1)
All
Power supply
Frame
Thumbnail
x1
Electrical Continuous current power supply, 0/1-10V dimmable, 220/240V - 50/60Hz, 300mA-16W / 350mA-18W / 400mA-21W / 500mA-27W / 600mA-32W / 650mA-35W /700 /750 /800 /900/ 950/ 1000 /1050mA-36W 60.9439
Thumbnail
x1
Electrical Continuous current power supply of 13-20W, 110*/240V - 50/60Hz with current selected through adjustable 200 mA - 13W / 300 mA - 15W / 350 mA - 18W / 400 / 450 / 500 / 550 / 600 / 650 / 700 / 750 / 800 / 850 / 900 mA - 20W. switch. 0/1-10V or push. 60.9188
Thumbnail
x1
Electrical Casambi continuous current power supply, dimmable 220/240V - 50/60Hz, 300mA - 16W / 350mA - 18,5W / 400mA - 21,5W / 450 mA - 24W / 500mA - 27W / 600mA - 32W / 650 mA - 35W / 700 mA - 36W /750 /800 /900 /1000 /1050 /1200 mA - 38W. 60.9207
Thumbnail
x1
Electrical Mains dimming 20W Constant current power supply, AC phase-cut adjustable, trailing & leading edge dimming, 220/240V - 50/60Hz, with dip-switch programmable power supply current. Output current: 900mA - 20W / 850mA - 20W / 800mA - 20W / 750mA - 20W / 70... 60.9467
x1
Electrical Constant current power supply 3W, 220-240V - 50/60Hz fixed supply current. Non-dimmable. Output current: 2.25W - 500mA 60.7887
x1
Electrical Continuous current supply source of 220-240V - 50/60Hz - 350mA 4,5W - 500mA 6,5W - 600mA 7,5W - 700mA 9W selectable by swtich, dimmable Dali 2 & Push 60.7744
x1
Mounting Frame No Trim for Light Shadow Mini Dots 1L 08.1050.00
x1
Mounting Frame Trim for Light Shadow Mini Dots 1L 08.1053.14
x1
Mounting Frame Trim for Light Shadow Mini Dots 1L 08.1053.40
x1
Electrical Continuous current supply source of 220-240V - 50/60Hz - 500mA 15W with dimmable Casambi 60.9874.0500
x1
Electrical Continuous current supply source of 220-240V - 50/60Hz - 500mA.with dimmable Dali 2 60.9957.0500
x1
Electrical Continuous current supply source of 220-240V - 50/60Hz - 500mA 25W, Non dimmable 60.9954.0500
