05.8673.14 Black/SteelLight Shadow Mini Fixed No Trim 4 Spots Optic Flood
Designed by FLOS Architectural, 2025

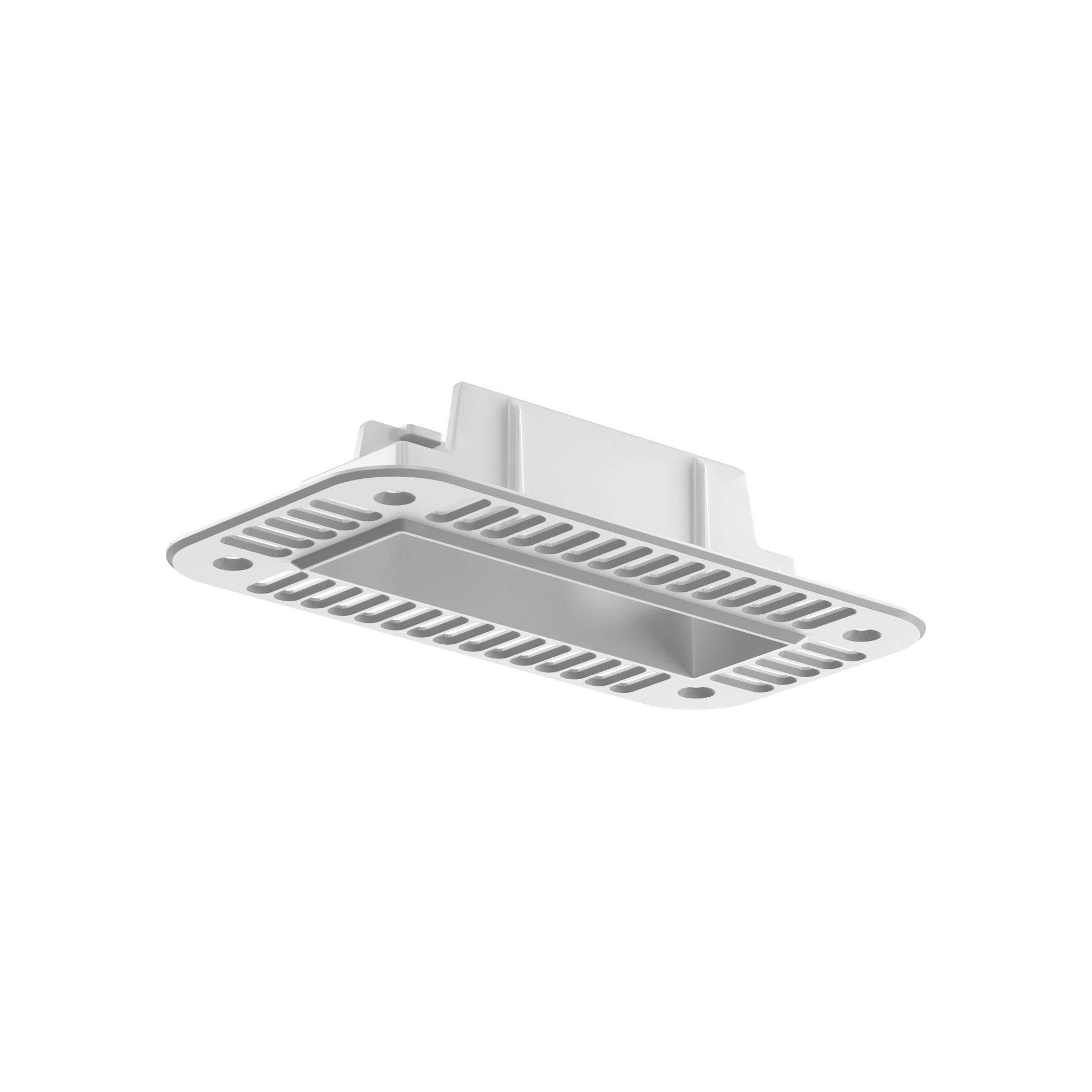

Fixed recessed luminaire with 2LED lighting spots. Remote powersupply not included (220-240V).It requires a pre-installation frame,to be ordered separately.
LED - Power LED - 6.2W - 545lm - 3000K - CRI> 90 - Beam° 37
Technical Drawing
Main specifications
Mounting
Recessed
Enviroment
Indoor dry location
Light source type
LED
LED type
Power LED
Lamp category
LED
Number of heads
1
Power (W)
6.2
System power (W)
9.2
Source flux (lm)
618
System flux (lm)
545
Efficacy (lm/W)
59
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
3
Rf fidelity index
91
Rg gamut index
101
LED Life / Failure Ratio
L90B20>52.000h_Tc85ºC
Beam angle C0-180 (º)
37
Beam angle C90-270 (º)
37
Extreme cut off
Yes
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
6
LED current (mA)
500
Driver
Remote
Dimmable
Yes
Dimming type
Dimmable
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Black/Steel
Trim
No
Orientation
Fixed
Recessed depth (mm)
48
Length (mm)
89
Net weight (kg)
0.12
Package height (cm)
6
Package width (cm)
13
Package length (cm)
7
IP
20
IP external
54
Photometric Files
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class G
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
