Architectural Light Shadow
03.9966.14 Black

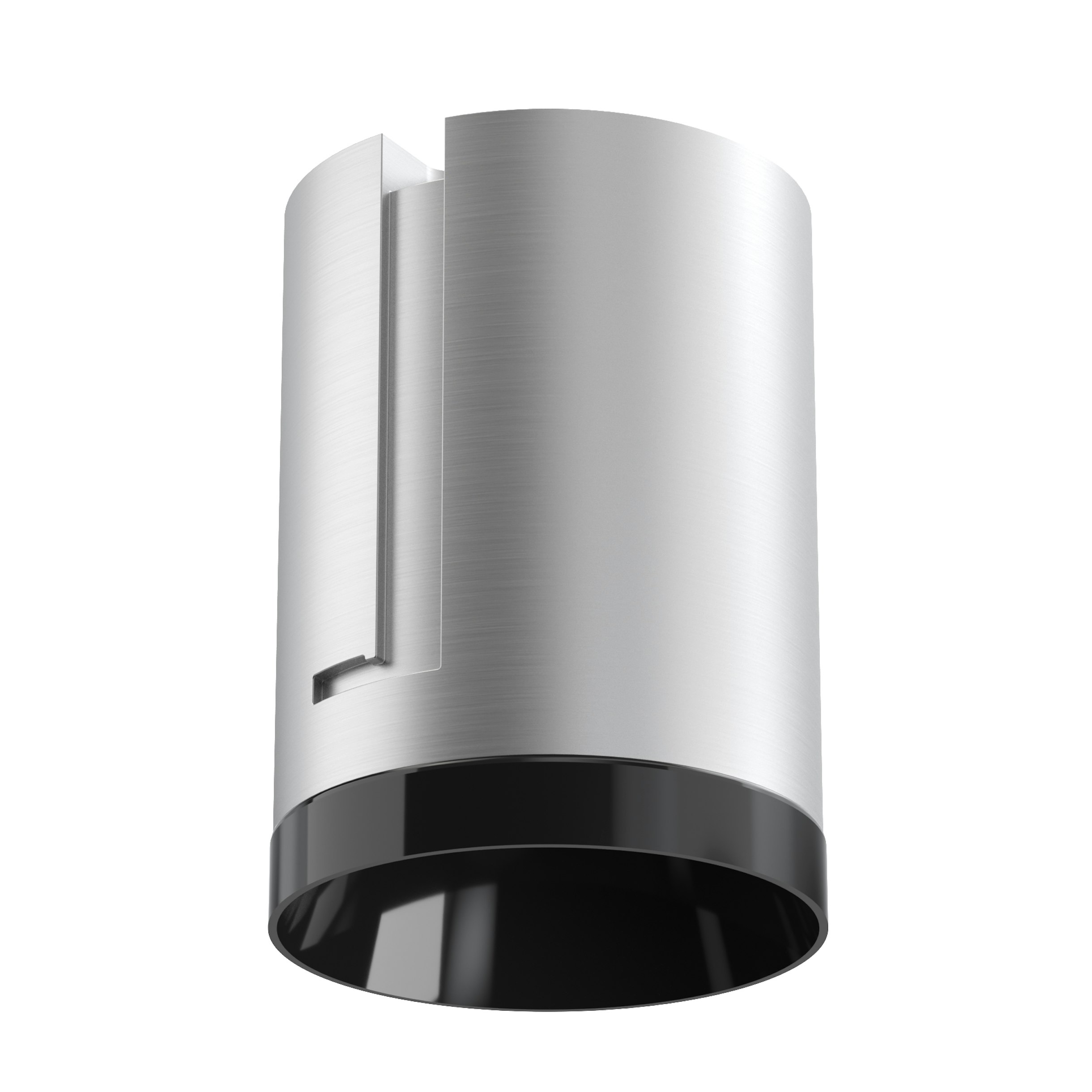

Light Shadow Pro Ø 90 Fixed Optic Flood

LED lighting module, with low glare, to be inserted in the recessed frames (not included), installation through a bayonet system with interchangeable spots. Remote driver not included.

LED - LED array - 22W - 1897lm - 3000K - CRI> 90 - Beam° 41

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Enviroment
Indoor dry location
Light source type
LED
LED type
LED array
Lamp category
LED
Number of heads
1
Power (W)
22
Source flux (lm)
2339
System flux (lm)
1897
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
2
LED Life / Failure Ratio
L70B40 >50.000h (Tc=85ºC)
Beam angle C0-180 (º)
41
Beam angle C90-270 (º)
41
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
35.8
LED current (mA)
600
Driver
Remote excluded
Dimmable
Yes
Dimming type
Non Dimmable, Dimmable DALI 2, Dimmable, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming
Emergency type
No
Physical
Colour
Black
Orientation
Fixed
Recessed depth (mm)
129
Spot diameter (mm)
90
Net weight (kg)
0.54
IP
20
IP external
54
IECEE-CB
EAC
CE
UKCA
03 - Italy
03 - Italy
USA
54
Gwt 850 (º)
54
20
Notes

Please select 500 mA setting in the remote driver to match the power of the Adjustable version.

Video

Accessories & Power Supply

required (11)
optional (1)
All
Power supply
Frame
Thumbnail
x1
Electrical Continuous current power supply of 25W, 110/240V - 50/60Hz with power current selected through adjustable 350 mA-18W / 400 mA - 21W / 500mA - 25W /600mA - 30W /700/750/900 mA - 32W switch. 1-10V or push dimming, synchronisation cables not included. 60.8533
Thumbnail
x1
Electrical Continuous current power supply 220/240V - 50/60Hz. Adjustable Current 300mA-13W / 350mA-15W / 400mA-18W / 450mA-20W / 500mA-22W / 550mA-24W / 600mA-27W / 650mA-29W / 700mA-31W / 750mA-32W / 800mA-33W / 850mA-35W / 900mA-38W / 950mA-40W / 1000/1050mA-4... 60.9162
Thumbnail
x1
Electrical Continuous current power supply of 13-20W, 110*/240V - 50/60Hz with current selected through adjustable 200 mA - 13W / 300 mA - 15W / 350 mA - 18W / 400 / 450 / 500 / 550 / 600 / 650 / 700 / 750 / 800 / 850 / 900 mA - 20W. switch. 0/1-10V or push. 60.9188
Thumbnail
x1
Electrical Continuous current power supply, 0/1-10V dimmable, 220/240V - 50/60Hz, 300mA-16W / 350mA-18W / 400mA-21W / 500mA-27W / 600mA-32W / 650mA-35W /700 /750 /800 /900/ 950/ 1000 /1050mA-36W 60.9439
Thumbnail
x1
Electrical Non dimmable continuous current power supply of 24W, 110/277V - 50/60Hz, with power current selected through adjustable 500 mA/600 mA switch 60.9523
x1
Electrical 30W, 220-240V - 50/60Hz Constant current power supply, with dip-switch programmable power supply current. 60.9692
x1
Electrical Continuous current supply source of 240V - 50/60Hz with dimmable Dali 2, Push dimming. 150mA - 7.8W / 200mA - 10.4W / 250mA - 13W / 300mA - 15.6W / 350mA - 18.2W / 400mA - 20.8W / 500mA - 26W / 600mA - 31.2W / 700mA - 36.4W / 750mA - 39W / 800mA - 41.6... 60.7678
Thumbnail
x1
Electrical Casambi continuous current power supply, dimmable 220/240V - 50/60Hz, 300mA - 16W / 350mA - 18,5W / 400mA - 21,5W / 450 mA - 24W / 500mA - 27W / 600mA - 32W / 650 mA - 35W / 700 mA - 36W /750 /800 /900 /1000 /1050 /1200 mA - 38W. 60.9207
Thumbnail
x1
Installation Frame No Trim Ø90 Fix 08.0193.00
Thumbnail
x1
Installation Frame Trim Ø90 Fix 08.0161.14
Thumbnail
x1
Electrical Mains dimming 20W Constant current power supply, AC phase-cut adjustable, trailing & leading edge dimming, 220/240V - 50/60Hz, with dip-switch programmable power supply current. Output current: 900mA - 20W / 850mA - 20W / 800mA - 20W / 750mA - 20W / 70... 60.9467
